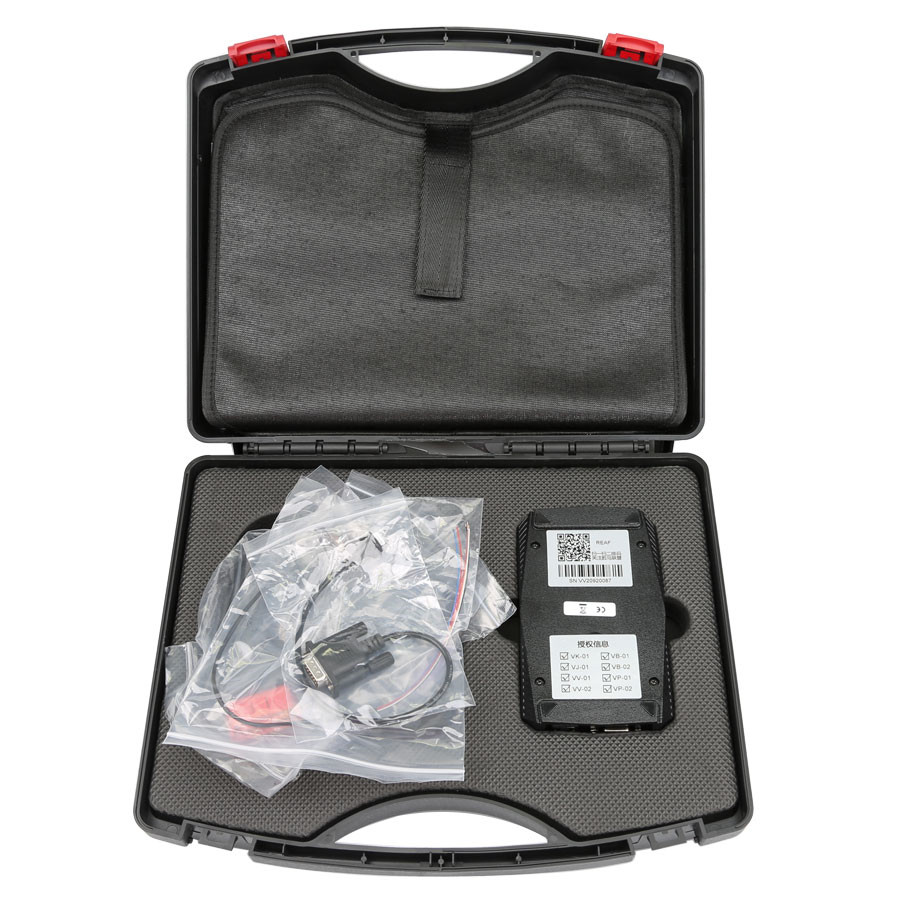

VVDI 2 Key Programmer Full Version

Top 7 Reasons to Get VVDI2:

1. This VVDI2 Full Package Contains Basic Function + VW + BMW + Porsche+ PSA + AUDI Generation 5 Function + BMW OBD Fucntion + BMW CAS4 Functions + Tango + J2534
2. VVDI2 Full Package Covers All the Functions of VVDI, VVDI 5th IMMO Adapter, BMW Multi Tool & CAS Plus for BMW Multi Tool
3. Support VW, Audi, BMW, Porsche & PSA
4. Update Online Free Lifetime
5. Latest Version: V5.2.1    VVDI2 V5.2.1 Software Free Download
6. Newly Add BMW FEM/BDC Function, Copy 48 Transponder by OBDII Function & Copy 48 Transponder (96 bit ) Function (Kindly note these functions not for free, needs additional cost)
7. VAG EDC17 PIN, MAC, CS calculation via eeprom and flash dump (the function can be activated even without having condor key cutter), please provide VVDI2 serial number to activate

VVDI2 - BMW FEM/BDC System (function released and available, just no user manual)

Users can refer to following information (3 steps for make keys:get key info->programming FEM/BDC system->make keys)
1.support make new key with ignition switch(support add spare key and all key lost, all key lost require ISN)
2.support reset FEM/BDC KM(cluster require reset manually)
3.support erase key(after erase the key position become blank position)
4.support backup coding
5.support restore coding

Notes:
1.backup coding and restore coding can direct operation generally.
2.add keys, reset KM, erase key must programming FEM/BDC system first
3.in FEM/BDC interface, if 'get key info' the type not support, it will show:customer should use "BMW E-sys software" program FEM/BDC system.then programming FEM/BDC system with VVDI2-BMW
4.when operation on 'programming FEM/BDC system'interface,please don't close this software window until all procedures completed.
5.programming FEM/BDC system, require soldering and get eeprom.（FEM 95128 chip, BDC 95256 chip）usually there are 2 same chips on the module, please refer to the software diagram, select the correct one.
6.programming FEM/BDC system,must restore the original eeprom, restore coding.if cannot restore coding or after restore coding assemble FEM/BDC module back to car,but with problem(such as the remote control cannot start the car
or the car with window problem)please use "BMW E-sys software" coding for FEM/BDC system
7.if connect power to FEM/BDC module, but the relay keep ringing,please contact technical support for help.usually operation on FEM/BDC should be ok,just need to programming.




VVDI2 Latest Software Version V5.2.1 Update:

**********************************************************************
2018-01-23
Require firmware V5.2.0
**********************************************************************
===== VAG V5.2.1 =====
1. Bugfix for access some MQB(Continental/VDO) instrument
2. Improvement for prepare MQB dealer key: Now we support all original blank key or MQB key made by VVDI
3. Improement for MQB key learning
4. Improvement for autodetct in IMMO4 system
5. Bugfix for spanish language
6. Bugfix

===== BMW V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== Porsche V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== PSA V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== Transponder Programmer V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== J2534 V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== Online Upate Tool V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== Quick Start V5.2.1 =====
1. Bugfix

VVDI2 latest software version V5.2.0 update

************************************************* *********************
*** 2018-01-19
*** Require firmware V5.2.0
************************************************* *********************
===== VAG V5.2.0 =====
1. Improvement MQB NEC35xx immobilizer/KM function, support following cars:
Audi A3/S3 2014+
Audi Q2
VW Golf7
VW Polo(MQB)
VW Tiguan II
VW Touran II
VW crafter 2017+
VW Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+

Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not include
Attention 2: Improvement for prepare dealer key: support original blank key and MQB key made by VVDI
Attention 3: MQB Immobilizer function require extra license. Customer who have copy 48 (96 bit) license will get MQB license for free
Attention 4: Improvement for key learn function
Attention 5: Bugfix for access some MQB instrument
2. Improvement for autodetct in IMMO4 system
3. Add spanish language
4. Bugfix

===== BMW V5.2.0 =====
1. Improvement for read ISN from MSx8x ECU, require VVDI2 database file verison V1.0.0
2. Improvement for load MEV17xx EEPROM dump
3. Support change second hand FEM/BDC ISN and make original key working
4. Add spanish language
5. Bugfix

===== Porsche V5.2.0 =====
1. Add spanish language
2. Bugfix

===== PSA V5.2.0 =====
1. Add spanish language
2. Bugfix

===== Transponder Programmer V5.2.0 =====
1. Bugfix for update remote database
2. Bugfix for save points
3. Immobilizer data tool: bugfix for Fiat Ducato 93C56
4. Add spanish language
5. Bugfix

===== J2534 V5.2.0 =====
1. Add spanish language
2. Bugfix

===== Online Upate Tool V5.2.0 =====
1. Add spanish language
2. Bugfix

===== Quick Start V5.2.0 =====
1. Bugfix

VVDI2 latest software version V5.1.0 update:

************************************************* *********************
*** 2018-01-18
*** Require firmware V5.1.0
************************************************* *********************
===== VAG V5.1.0 =====
1. Improvement MQB NEC35xx immoblizer/KM function, support following cars:
Audi A3/S3 2014+
Audi Q2
VW Golf7
VW Polo(MQB)
VW Tiguan II
VW Touran II
VW crafter 2017+
VW Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+

Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not includ
Attention 2: MQB Immobilizer function support original blank key and MQB key made by VVDI2
Attention 3: part of original blank key not support write data
Attention 4: MQB Immobilizer function require extra license. Customer who have copy 48 (96 bit) license will get MQB license for free
2. Improvement for autodetct in IMMO4 system
3. Add spanish language
4. Bugfix

===== BMW V5.1.0 =====
1. Improvement for read ISN from MSx8x ECU, require VVDI2 database file verison V1.0.0
2. Improvement for load MEV17xx EEPROM dump
3. Support change second hand FEM/BDC ISN and make original key working
4. Add spanish language
5. Bugfix

===== Porsche V5.1.0 =====
1. Add spanish language
2. Bugfix

===== PSA V5.1.0 =====
1. Add spanish language
2. Bugfix

===== Transponder Programmer V5.1.0 =====
1. Bugfix for update remote database
2. Bugfix for save points
3. Immobilizer data tool: bugfix for Fiat Ducato 93C56
4. Add spanish language
5. Bugfix

===== J2534 V5.1.0 =====
1. Add spanish language
2. Bugfix

===== Online Upate Tool V5.1.0 =====
1. Add spanish language
2. Bugfix

===== Quick Start V5.1.0 =====
1. Bugfix

VVDI2 latest software version V5.0.0 update:

************************* 2018-01-06 *** Require firmware V5.0.0 *******************************************
!!! Update V5.0.0 firmware require use "Upgrade Kit", you can find it from VVDI2 Quick Start from V5.0.0 software !!!
===== VAG V5.0.0 =====
1. Add support for MQB NEC35xx immoblizer/KM function, support following cars:Audi A3/S3 2014+Audi Q2VW Golf7VW Polo(MQB)VW Tiguan IIVW Touran IIVW crafter 2017+VW Passat B8 without virtual cockpitSkoda Octavia III 2014.07+Skoda Rapid 2015.06+Skoda KodiaqSkoda Superb IIISeat Ibiza/Ateca/Toledo 2015.06+
Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not includAttention
2: MQB Immobilizer function require MQB key made by VVDI2.
2 Bugfix
===== BMW V5.0.0 =====
1. Improvement for read ECU ISN
2. Bugfix
===== Porsche V5.0.0 =====
1. Bugfix
===== PSA V5.0.0 =====
1. Bugfix
===== Transponder Programmer V5.0.0 =====
1. Bugfix
===== J2534 V5.0.0 =====
1. Bugfix
===== Online Upate Tool V5.0.0 =====
1. Bugfix
===== Quick Start V5.0.0=====
1. Add "Upgrade Kit"
2. Bugfix

VVDI2 latest software version V4.9.0 update:

************************************************* *********************
2017-12-28
*** Require firmware V4.8.0   !!!This update no need update firmware

===== BMW V4.9.0 =====
1. FEM/BDC support emergency switch ON: FEM/BDC Key Learn->Emergency switch ON
2. Support read ISN from original key(even key was disabled): FEM/BDC Key Learn->Read ISN from original key
3. FEM/BDC support close/open transport mode: FEM/BDC Key Learn->Exchange FEM/BDC->Close/Open transport mode
4. !!!New Function: ECU/CAS ISN!!! (Menu->Key Learn->ECU/CAS ISN)
Support OBD exchange used or new ECU module, no need open PCB
Support OBD exchange used CAS3+/ISTAP module, no need open PCB
Support exchange used or new ECU module with "ECU dump file"
Support exchange used CAS3+/ISTAP, CAS4(1L15Y, 5M48H) with "CAS dump file"
(1). E-Series
(a). OBD read ECU ISN: MSV80, MSV801, MSD80, MSD81, MSD802, MSD812, MSD851
(b). OBD read/write ECU ISN: ME17N45(N45 Tricore), ME17N46(N46 Tricore)
(c). OBD read/write ECU ISN: MEV17_2(N12 Tricore), MED17_2(N14 Tricore), MV1722(N16 Tricore), MVD1722(N18 Tricore), MEVD174K(N20, Tricore), MEVD176K(N55 Tricore), MVD1727(N18 Mini Tricore), MEVD17KW(Tricore)
(d). OBD Read/write CAS ISN: CAS3+(0L15Y, 0M23S), ISTAP version. Encrypt verison require working key support
(e). Support write new ISN to ECU flash dump file, fix checksum: MSV80, MSV801, MSD80, MSD81, MSD802, MSD812, MSD851
(f). Support write new ISN to ECU eeprom dump file, fix checksum: ME17N45(N45 Tricore), ME17N46(N46 Tricore)
(g). Support write new ISN to ECU eeprom dump file, fix checksum: MEV17_2(N12 Tricore), MED17_2(N14 Tricore), MV1722(N16 Tricore), MVD1722(N18 Tricore), MEVD174K(N20, Tricore), MEVD176K(N55 Tricore), MVD1727(N18 Mini Tricore), MEVD17KW(Tricore)
(h). Support write new ISN to CAS3 eeprom dump file, fix checksum: CAS3+(0L15Y, 0M23S), ISTAP version. Encrypt verison require working key support
(2). F-Series(some F-series ECU don't support read ISN from OBDII)
(a). OBD read/write ECU ISN: MEVD1724 (N20 Tricore), MEVD1725 (N13 Tricore), MEVD172Y(N55 Tricore), X63TU(S63TU, N63TU)
(b). Support write new ISN to CAS4(1L15Y) eeprom dump file, fix checksum: CAS4(1L15Y)
(c). Support write new ISN to CAS4(5M48H) eeprom dump file, fix checksum: CAS4(5M48H). Encrypt verison require working key support
(3). Some function in ECU/CAS ISN require download VVDI2 configuration file: Online Update Tool(v4.9.0)->Menu->Software Update and Update Information->Configuration file Update
5. Support read CAS3+(ISTAP) EEPROM from OBDII(This is not full EEPROM, Support make dealer key, DON'T WRITE this file back to CAS)
6. Bugfix

===== Transponder Programmer V4.9.0 =====
1. Support identify MQB(VAG) key
2. Immobilizer data tool: add new for BMW->Motorcycle
3. Immobilizer data tool: bugfix for Subaru->Impreza 1996 68HC05
4. Bugfix for write HITAG EEPROM
5. Bugfix

===== Online Upate Tool V4.9.0 =====
1. Add menu for VVDI2 configuration file: Menu->Software Update and Update Information->Configuration file Update
2. Bugfix

VVDI2 latest software version V4.8.0 update 2017-12-04:

*** Require firmware V4.8.0
************************************************* *********************
===== VAG V4.8.0 =====
1. Improvement for copy 48 (96 bit). All the custer update to latest V4.8.0 for copy function
2. Improvement for OBD 48 copy. Fixbug for Passat/CC copy funtion, add support copy CDC32xx type in OBD 48 copy
3. Bugfix for some Q3 dashboard in IMMO4 system
4. Improvement for autodetct in IMMO4 system
5. Bugfix

===== BMW V4.8.0 =====
1. Support display FEM/BDC system frequency
2. Support exchange FEM/BDC function, you can exchange second hand FEM/BDC module
3. FEM/BDC system now support 16 key positons
4. Bugfix

===== Porsche V4.8.0 =====
1. Bugfix

===== PSA V4.8.0 =====
1. Bugfix

===== Transponder Programmer V4.8.0 =====
1. Support the latest remotes version produced after 11.2017
2. HITAG(VAG)(VW/Audi IMMO5 key) type, support write EEPROM file while keys is not locked
3. Immobilizer data tool: bugfix for Renault Duster 2010 95040
4. Add garage door remotes: Menu->Transonder-Chip-Remote->Garage Door
5. Bugfix

===== J2534 V4.8.0 =====
1. Bugfix

===== Online Upate Tool V4.8.0 =====
1. Bugfix

===== Quick Start V4.8.0 =====
1. Bugfix

VVDI2 latest software version V4.7.8 update:

************************************************ ********************
*** 2017-10-30
*** Require firmware V4.7.8
************************************************ ********************
===== VAG V4.7.8 =====
1. Improvement for copy 48 (96 bit), reduce the server calclation time. All the custer update to latest V4.7.8 for copy function
2. Bugfix

===== BMW V4.7.8 =====
1. Bugfix

===== Porsche V4.7.8 =====
1. Bugfix

===== PSA V4.7.8 =====
1. Bugfix

===== Transponder Programmer V4.7.8 =====
1. Bugfix

===== J2534 V4.7.8 =====
1. Bugfix

===== Online Upate Tool V4.7.8 =====
1. Bugfix

===== Quick Start V4.7.8 =====
1. Bugfix

VVDI2 User Manual:

VVDI user manual include:VVDI2 bmw user manual,vvdi overview pdf,transponder programmer user manual,vvdi2 online update instruction...
you can download them above Related Download Files Section.

Xhorse VVDI2 Special Function:

Including all VVDI functions, improved and more stable

More vehicle coverage, multi Immo functions

New added plug-in function and reserved connectors to include all VVDI functions

Xhorse VVDI2 add more vehicle models

VVDI2 supports diagnostic function only for VAG groups, But VVDI2 has achieved multi brand vehicle diagnosis and supports part of vehicle immo programming function and software online upgrade.

VVDI2 can replace lots of customized devices. Users do not need to purchase specific OBD tool for specific vehicle makes which will save you a lot.

Xhorse VVDI2  plug-in function, reserved connectors

VVDI 2 can act as a multifunction programmer to connect plug-ins, and read & write IC and CPU data.

Can connect BMW plug to realize OBD function, And meanwhile reserve some connectors for further uses.



The core function is to detect the remote control frequency:

Automatically identify chip type

Support multi-function on VW vehicles

Read BMW ISN

Key programmer

Remote control programmer



J2534 Compatible Adapter



1.Detect key frequency, automatically identify chip type

The test result can show on the main unit display, no need to connect computer

2. Support VAG vehicle diagnostic function

Read & write Immo4/Immo5 system

Learn key

Program BCM remote

K-Line instrument immobilizer box

Correct odometer

Program control unit

Unlock Immo1/Immo2 firmware protection

Support data manipulation tools



3. Support OBD functions on BMW vehicles

Correct odometer

Generate key

Unlock Key

4. Fix CAS4 EEPROM key programmer

Generate specialized chips

Immobilizer data processing tool

Other key tools

Generate remote control



5. Passthru J2534 Introduction

With built-in switch matrix, it supports third-party diagnostic software including:
ODIS, Toyota TIS techstream etc. To perform VVDI2 diagnostic function, third-party diagnostic software should be compatible with J2534 function.

VVDI 2 Superiority:

VVDI technician has devoted themselves to VVDI free update online and update service in the pass five years. This is what VVDI has been widely respected and ranked as a power tool. There is no doubt that the more power and high-end configuration VVD2 will inherit the fine traditions.

Apart from free update online service and system optimization, more powerful functions and vehicle models (Like Porsche) will soon be available via update. And other more functions. VVDI2 goes beyond than VVDI in function, connectors and vehicle coverage etc. After all, VVDI belongs to locksmith tool while VVDI2 becomes a comprehensive locksmith device.

VVDI2 – VAG software:
VAG software support VAG cars: VW, Audi, Seat, Skoda, 4 th immobilizer Porsche, 4 th immobilizer Bentley .
Mainly include: Diagnostic, 4 th immobilizer, 5 th immobilizer, key learn, BCM remote control, Engine control unit, Kline instrument and immobox, adapt unit, component protection,dump tool etc.ou can find detail in VVDI2 – VAG User Manual



VVDI2 – BWM software

BMW software support cars: BMW. Support types can be find in Mainly function: Read/Write EWS, read CAS information，Read/Write CAS EEPROM,
Read/Write KM stored in CAS, synchronization DME with CAS, synchronization CAS with ELV, Key Learn(immo)，File Make Key, Unlock Key, File Change KM, CAS Repair etc OBD Flash ISTA version only need 10 minutes. (No extra power. No backup CAS EEPROM and FLASH).



VVDI2 – Transponder Programmer software

Transponder programmer software is a multifunctional immo transponder tool. Mainly include: transponder programming, special transponder, immobilizer data tool, other key data, prepare remote etc.


Xhorse VVDI2 Customer Feedbacks:

-Transfer instrument cluster in 2010 A5 + Mileage change ..YES GOOD
-Make OEM key for 2006 Audi A6 ... YES GOOD
-Change mileage in 2006 Audi A6 ... YES GOOD
-READ Kessy EZS OBD Audi A6 2006 ...YES GOOD
-READ BCM2 (BDM) 2010 Audi A4 ... YES GOOD
-All functions on older cars year 2000-2004 era working well ...YES GOOD

-Successfully add a key bcm2 on a 2013 audi a5.

-2007 Audi A4 B7 RB8 crypto - mileage correction ok

-Audi BCM2 add spare key by obd worked fine, and I did one on a 2013 A5 and it worked flawlessly.

-A6/Q7 EZS Kessy: Added a dealer key (remote sourced from the dealer) without issues. Seemed to read everything properly but I had a working key to begin with.

-Audi A6: Testet with A6 read kessy working, learned new key

-Skoda Octavia 2006: got CS & PIN , programmed key fine, but not remote programming.

-VW passat. B5: Pulled PIN, programmed key, corrected miles.

-VW Passat B6 2009: Pulled PIN but couldn't get 6 bytes CS, needed comfort dump.

-VW Transporter T5 2006 : Pulled PIN Programmed key, no remote programming.

-Audi A4 2006 : mileage correction success .

-Audi A6 2003: Mileage correction fail. car not start. remove battery terminal. car start.

VVDI2 Lables Display:



0=(VK-01) key programmer
1=(VJ-01) Passthru J2534
2=(VV-01) VW 4th
3=(VV-02) VW 5th
4=(VB-01) BMW OBD Function
5=(VB-02) BMW CAS4 Function
6=(VP-01) Porsche

Xhorse VVDI2 Package List:

VVDI 2 Main Interface

5th BDM Programmer
OBD2 Cable
Remote Programmer
USB Cable

CAS Plus (additional part, need to buy alone CAS Plug for VVDI2 BMW or Full Version )

Contact Information:

Whatsapp: +1 937 888 0032

Live Support: Chat with us online

E-mail: sale@obdtools.net

Skype: jansonsh@hotmail.com

If you have any problem, please do not hesitate to contact us.
