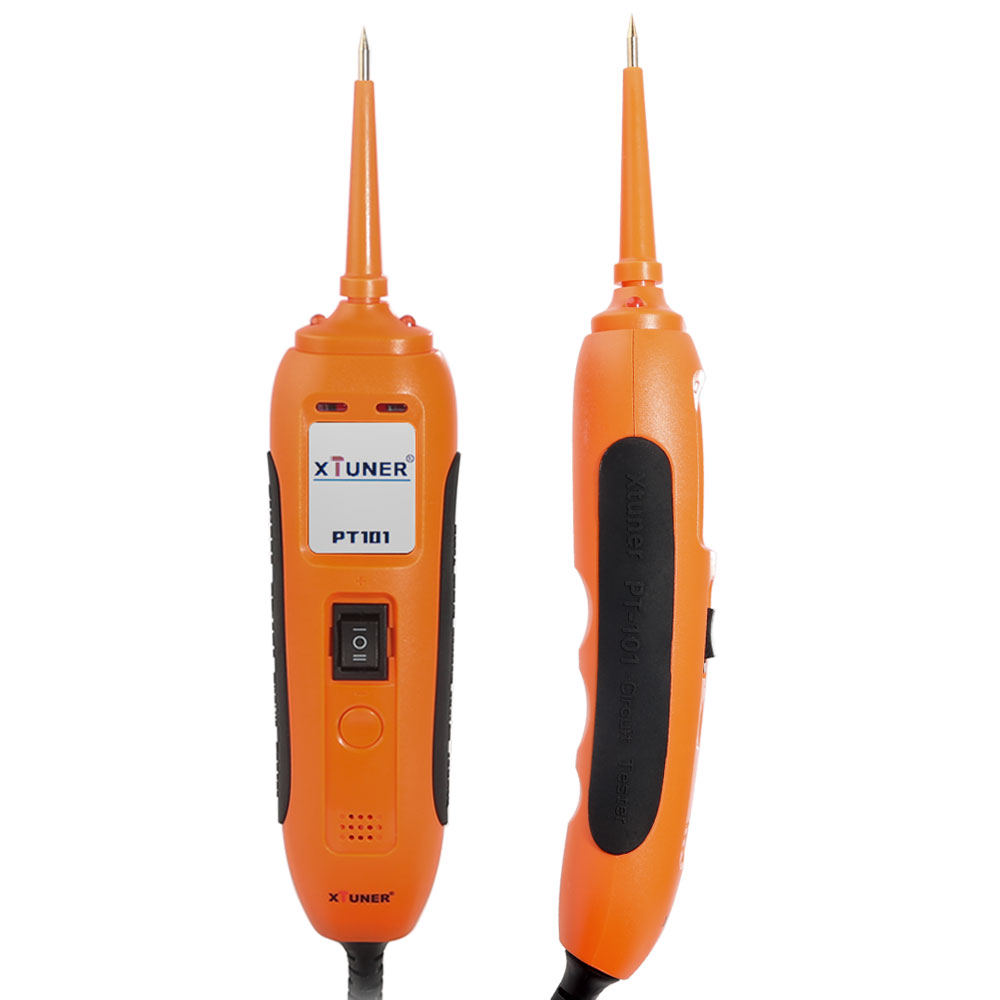

Xtuner PT101 Circuit Tester

The Xtuner PT101 is the new revolutionary type circuit tester to users.
Safety Protection design
Read Results on LCD Screen
Read Results on LCD Screen
Circuit Tester with Wide functions
Four diagnostic modes for 12v ・ 24v
Support multiple vehicles and After - sales warranty

Xtuner PT101 Features

Large Color LCD Screen with Easy to Navigate User Menu.
Supplies Power and Ground for Functional Component Testing.
AC-RMS, AC Peak to Peak, Frequency and Pulse Width for signal testing.
Digital Voltmeter with Min/Max Volta ge Capturing. Displays Up to 60 Volts and Resolution of 01 Volt.
8 Amp Circuit Breaker Protection, automatically Reset No Button to Push 20 foot Power lead and extra 20FT extension cable.
Ergonomic Housing Design with Rugged and Water Resistant Specification.

Xtuner PT101 Function Coverage:

DC Voltage Testing
AC Voltage Testing
Resistance Testing
Diode Testing
Current Testing





Item	Parameters
DC Voltage Range	0-40V
Resistance Range	0 Ohms to IM Ohms
Rating Current	1-8Amp
Frequency Response Of Tone	40Hz to 20KHz
Testing Standard	-100% current: Hold > I hour -500% current： trip in one hour -200% current： trip in 3-30 seconds -300% cur re nt: trip in 0.5—4.0 seconds

Package includes:

1pc x User Manual
1pc xCigarette Lighter Adapter
1pc x Battery Hookup Clips
1pc x Probe Tip
1pc x Extension Cable(20 ft)
1pc x Rugged Molded Case
1pc x Power Assist Cable
