VCDS V2-21.3.0 V21.3.0 VCDS HEX-V2 Intelligent Dual-K & CAN USB Interface Car Auto Fault Diagnosis Wire Cable with CD Software



The VCDS HEX-V2 Enthusiast USB Interface works with VCDS (VAG-COM Diagnostic System) via USB turning a Windows PC into a factory level diagnostic tool for Volkswagen, Audi, Seat or Skoda automobiles.



Support 16 languages, including of Chinese, English, French, German, Russian, Italian, Swedish, Danish, Czech,polish, Dutch, Hungarian, Portuguese, Spanish, Slovenia, Romania.

WITH VCDS YOU CAN:

1.Gain factory level access to all systems in cars from 1990 through the current model year
2.Scan for and clear DTCs with 19,000+ fault codes decoded into plain text
3.Alter settings through module coding accessible only by factory level tools
4.Perform various country-specific modifications to your car (remove seat belt chime, enable gauge test/needle sweep, enable lap timer, operate windows and sunroof with remote, and much more)View and log live data
5.Reset service reminder
6.Perform built in tests and calibrations normally reserved for factory level tools
7.Diagnose real failures instead of swapping parts!

Features:

1. Fully licensed for VCDS software, acts as the key to unlock the software, no additional software purchase required.
2. USB connection, compatible with all modern laptops.
3. Compatible with all diagnostic-capable VW/Audi passenger cars from 1996 to current; K, K+L, dual-K, or CAN.
4. Detachable USB cable.
The supplied cable has a proprietary screw locking mechanism, but it can be replaced temporarily with a standard USB-A to USB-B ("printer") cable when it become damaged.
5. Modern 32-bit micro-controller and fully updatable firmware.
6. Tri-Color (red/green) status/activity LEDs with greatly improved visibility from almost any angle.
7. Includes an embedded license for VCDS and thus acts as a "dongle" for the software, allowing the software to be used and installed on any compatible PC.

Computer Requirements:

We recommend at least a 1 GHz dual-core processor with 1 GB of RAM and Windows 7 or newer(Windows 7 through 10, but not RT) with an available USB 2.0 (or higher) port.
Slower computers or Windows 2000, XP, and Vista may work but are not officially supported.
Windows 8. 8.1 or 10 on a machine robust enough to support the respective operating system are also fine.
Windows running inside a Virtual Machine (for example on a Mac) is not supported

Extending this Interface:

The cable supplied with this interface is about 6 feet long -- just right for most laptops.
The USB standards do not allow for passive extension cords!
We have tested many Active USB extensions and have found one that works. You can order the 16-ft Active USB Extension from our Store. We do not sell or support any other brands or models of USB extensions, if you have problems when using one, the first thing we're going to tell you is to eliminate the extension. We sell also a 3-ft OBD extension in our web store that lets you keep your diagnostic tool connected and away from the driver's feet and legs.

If you plan to use a desktop PC, a wireless HEX-NET interface may be a better choice.

Software:

The HEX-V2 should be used with the latest version of our VCDS software.
The HEX-V2 does not have the ability to emulate a dumb serial pass-through interface and thus unlikely to be compatible with any software other than VCDS.

Driver Installation:

The HEX-V2 enumerates as an HID device and does not require a special driver.
However, there are some HID power management quirks in 8.1 and newer fixed by installing a device-specific "driver" (actually just an INF file) supplied with the VCDS installer.



Product Support:

1.The HEX-V2 is fully supported via e-mail or over the phone as a USB interface for VCDS.
2.Support for configuration and VCDS-Mobile are provided via our Support Forum.

3.Support 16 languages, including of Chinese, English, French, German, Russian, Italian, Swedish, Danish, Czech,polish, Dutch, Hungarian, Portuguese, Spanish, Slovenia, Romania.



Kindly Note:

1.In the package, there is NOT software cd included, you can download the original software any version you like on the official website:

http://www.ross-tech.com/vcds/download

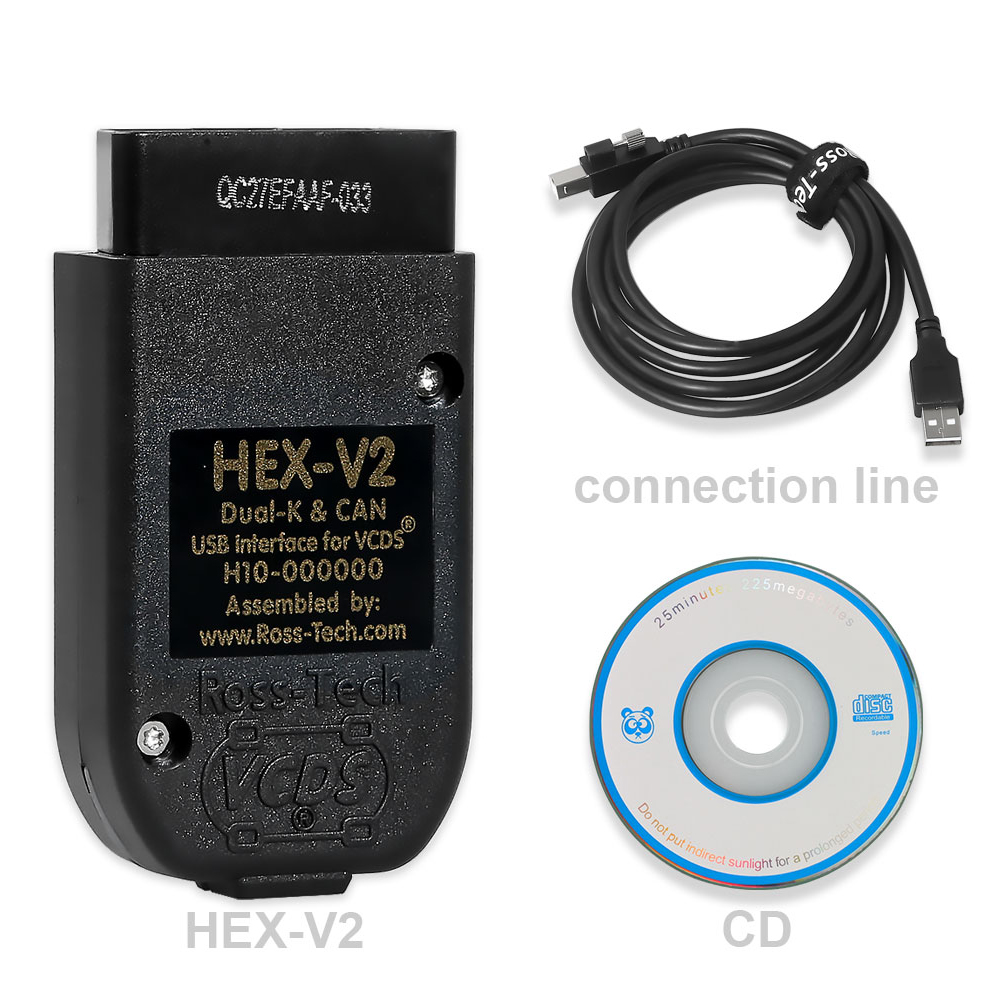

Package includes:

1pc x HEX-V2 Intelligent Dual-K & CAN USB Interface for VCDS V2-20.4





Original VCDS HEX-V2 Kable 20.4 Original Plan VAG COM Interface Display:
