Original LAUNCH X431 PAD III V2.0 Full System Diagnostic Tool with Wifi and Bluetooth 4 .2 Support Coding and Programming

Highlights of LAUNCH X431 PAD III :

1. One Year Free Update Online on Launch Official Website
2. Intelligent Diagnosis: Identify the car model by VIN scanning and check historical maintenance and diagnostic records online
3. Wide Car Model Coverage: Support most of the car models from Asia, Europe and America, such as Maserati, Ferrari, Rolls-Royce, Bentley, Benz, BMW, and Audi etc
4. Support almost all OBD I and OBD II protocol
5. Extended Functions: Support the modules "Sensor and multimeter","Battery detection", "Oscilloscope", and "Endoscope"
6. Scan 12V car and 24V Truck and Bus with the help of Launch HD Module
7. LAUNCH X431 PAD3 is the only car scanner in the world which is built to IP65 water proof specifications, with dust proof design and which has passed droop test.
8. Support Multi-language

LAUNCH X431 PAD III  Introduction:

Launch X431 PAD III is a brand-new high-end car fault diagnostic device developed by Launch based on Android system. In addition to inheriting many advantages such as wide coverage of special functions and car models, powerful and a large number of diagnostic functions, and accurate test data, X431 PAD III also firstly introduces intelligent diagnosis technology, which makes maintenance more intelligent and efficient. X431 PAD III is specially designed for garages that are focused more on high end cars like BiMW, Aoudi, Beenz, Landroover, Jaguaer, Porchie and who love to repair difficult cars.

Features an open Android system, can install third party apps and software OE-Level access to Asian, European, Domestic for coding, resets, relearns and bi-directional capabilities Bluetooth VCI with high performance data refresh Auto-ID available on all vehicle systems and modules Graphs live data stream 10.1 High resolution capacitive screen, 8 core processor, 2 GB RAM + 64 GB ROM. High resolution camera with still and video capabilities (front and rear camera)

In addition to inheriting many advantages such as wide coverage of special functions and car models, powerful and a large number of diagnostic functions, and accurate test data, X-431 PAD III also firstly introduces intelligent diagnosis technology, which makes maintenance more intelligent and efficient.

Launch X431 PAD III Features:

1. 10.1 High Resolution Capacitive Screen, 8 Core Processor, 2 GB RAM + 64 GB ROM.
2. High resolution camera with still and video capabilities (Front and Rear Camera)
3. Featuring an open Android operating system for a true tablet experience install third party apps and software

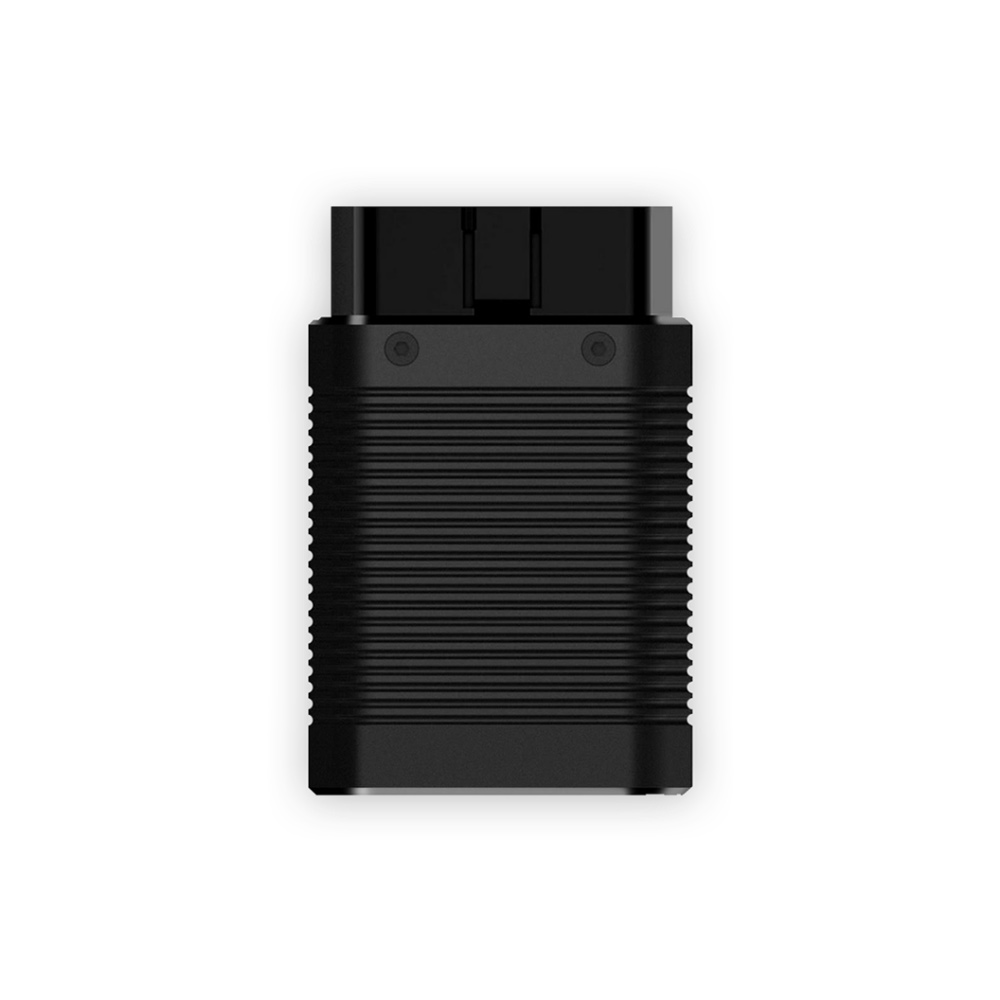

4. Bluetooth VCI with high performance data refresh
5. Auto-ID available on all vehicle systems and modules
6. Graphs Live Data Stream
7. Dual Charging Indicator
8. OE-Level access to Asian, European, and Domestic applications for module coding, resets, relearns, and bi-directional capabilities
9. Now Featuring a back Kickstand for lightweight and functional support
10. Support online technician's community where problem can be shared and solutions for that problem can be answered by expert from that field
11. Can support multi graph display of up to 15 graphs at a time which is one of the largest graph displays in any LAUNCH scanner till date
12. User can search error code online from device itself and can find solution for particular problem

Launch X431 PAD III Function:

​LAUNCH X431 PAD3 is the only car scanner in the world which is built to IP65 water proof specifications, with dust proof design and which has passed droop test.

● Read and clear trouble code
● Support data stream and actuation test/component testing
● ECU/ECM programming
● Battery registration
● Injector coding
● KEY coding for Maruti Suzuki (upto 2013),TATA and HONDA(Note: KEY coding is not available for Mahindra car)
● Immobilizer trouble code reading.
● Service light reset for BMW, AUDI, Benz, VW, Skoda and many more.
● Support A.B.S(anti lock brake) function
● Support E.P.S(Electric Power Steering) function
● Support Air bag function
● Steering angle sensor reset
● Support car A.C( air conditioning system)
● Support ECM/PCM reset
● Support Automatic Transmission function
● Support B.C.M(Body Control Module) including seat belt, Central locking,  Light
● Support adaptation for almost all car
● Scan radio system
● Online Coding Available for Euro car brands
●Special Functions
Support 15 special functions including Oil Reset, Throttle Adaptation, Steering Angle Reset, Electrical Parking Brake Reset, Tire Pressure
Reset, Anti-theft Matching, ABS Blake Bleeding, Battery Matching, Gear Learning, Injector programming, DPF Reset, Sunroof Initialization,
Headlamp Matching, Suspension Matching and AT Matching

Launch X431 PAD III Vehicle List:

Europe: German Cars  ( Audi – BMW – Mercedes – Opel – Seat –  Skoda – Volkswagen – Skoda )  , French Cars  ( Citroen – Peugeot – Renault ) , Other European  ( Ford (Europe) – Fiat – Jaguar – Lancia – Land Rover – Porsche – Alfa Romeo – Rover – Saab – Volvo )

Asia: Korean Cars ( Daewoo – SsangYong – Hyundai – Kia) , Japanese Cars (Nissan – Mitsubishi – Isuzu – Mazda – Honda – Subaru – Suzuki – Toyota – Lexus ) , Chinese Cars ( Geely – BYD – Brilliance – Changan – chery – Gonow Auto – Hafei – JAC – Tianjin FAW – Liuzhou Wuling – Xinkai – Zotye – Zhong  Xing – Zhong Shun – Changhe – Great Wall  (ChangCheng) – Jiangling – Xiamen Golden Dragon  ) , Malaysian Cars ( Perodua – Proton ) , Indian Cars ( Mahindra – Maruti – Tata ) , Russian cars ( GAZ – VAZ )

United States: Chrysler Ford, GM, Work Horse, Chevrolet, Pontiac, Buick, Cadillac, Saban, GMH Truck, Hummer, Ford F Series Trucks, Lincoln, Mariner Hybrid, Mustang, Montego, Ford Motor Home Range, Taurus.

PROTOCOLS: OBDII, EOBDII, EOBDIICANBUS.

Launch X431 PAD III Diagnostic Tool Improvements

Optimization of operation
Optimization diagnostic application enhance operation fluency and the higher data stream refresh speed
Preset tool applications
Simplified the device setup
High-end hardware configuration

Extension Modules for Launch X431 PAD III

1). Sensor box (Optional)
A sensor box is used along with x431 PAD IIl to test most of sensor like MAP sensor, MAF sensor, TP sensor, Oxygen sensor, CAM sensor, Temperature sensor and many more

2).Multimeter
An inbuilt multi meter used along with sensor box to test output of most of sensors.

3).Battery box (Optional)
A battery box used to test 12V battery for almost all cars. Battery box is also capable of testing alternator and starter.

4). Oscilloscope (Optional)
A device is used along with LAUNCH X431 PAD3 to test electronic circuit.

5).Video scope(Optional)
A device which can reach to a place where even our eays cannot reach. Video scope along with X431 PAD2 can make repairing job of technician very simple and easy.

6).X-431 HD Module (Optional)
With help of LAUNCH X431 HD Module, X431 PAD II can even scan commercial and 12V vehicle.

How to Register Launch X431 PAD III?

After the tablet is initialized, a screen similar to the following appears.

(If you are a new user, follow A to proceed.)
(If you have registered to be a member, go to B to login the system directly.)
(In case you forgot password, refer to C to reset a new password.)

A. If you are a new user, tap "New Registration" to enter sign-up page.

1. Create an App Account: Input the information to create a new account (all fields must be completed). When finished tap “Register”, a screen similar to
the following will appear:

2. Register Wallet: Input the password for the Wallet (An 8-20 mixture of lower/upper case letters, numbers and special characters is recommended),
and then tap "Create a Wallet account".
Note: You are suggested to note the password down for future use.Backup Wallet Address & Keystore: A wallet address is automatically
generated, tap "To Back Up", and then follow the on-screen instructions to store it.

3. Activate VCI: After registering a wallet account, the system navigates to the following screen:

In below figure, input the Product Serial Number and Activation Code, which can be found in the supplied password envelope.

Note: To exit and activate it later, tap "Skip". In this case, you can activate your VCI by tapping "Activate VCI" in "Personal Center". For details, please refer to Chapter 14.4.
Tap "Activate" to finish your registration. A popup displays to ask you to update the diagnostic software.

To update the diagnostic software, tap “Yes” to enter the vehicle software download screen. Tap “Update” to start downloading. To pause downloading,
tap "Stop". To resume, tap "Continue". When download is complete, the system will install the software package automatically.

Note: When downloading the diagnostic software or checking for updates, make sure the tablet has a strong Wi-Fi connection. It may take several minutes to finish it, please
be patient to wait.
To download and install the software later, tap "No". In this case, enter the Home screen and tap "Software Upgrade" to download the diagnostic software.
B. If you have registered to be a member, input your name and password, and then tap the “Login” button to enter the main menu screen directly.

Note: The X-431 PAD III has an auto-save function. Once the username and password are correctly entered, the system will automatically store it. After initial setup, it is no
longer necessary to input the account information manually to log in.
C. If you forgot the password, tap "Retrieve password" and then follow on-screen instructions to set a new password.

Launch X431 PAD III Specification:

Display Screen:                       10.1″ IPS touchscreen 1920×1200 resolution
Operation System:                  Android? 5.1
CPU:                                        8-Core Processor, 2GHz
Memory:                                 2GB
ROM:                                      64GB
Connectivity:                          Wi-Fi, USB 2.0, Bluetooth 2.0 and above
Camera:                                  2MP front-facing camera / 8MP rear-facing camera
Sensor:                                   Gravity accelerometer
Audio Input / Output:            Microphone, Speakers, 3.5mm stereo head jack
Power and Battery:                 1500mAh lithium-polymer battery
Operating Temperature:        -10 °C to 50 °C
Environment Temperature:    -20 °C to 70 °C


Launch X431 PAD III FAQ:

Q1:Does it connect with fiat linea petrol? what about pad iii version 2.0?
A1: Yes, you can diagnose your fiat linea petrol.

Q2: Is it possible to do online programming of ecu,pcm,bcm,and all other modules as new module like dealers do
A2: Yes, you can do it

Q3: Does it work on indian car?
A3: Yes you can scan Mahindra india,maruti india,tata india....

Q4: Can check indian diesel vehicle?
A4:Yes, it can check diesel,petrol and k series.

Launch X431 PAD III Package List:

1pc x X-431 PAD III Display Tablet
1pc x VC Module
1pc x Power Adapter for X-431 PAD III
1pc x Type A to B Cable
1pc x Diagnostic Cable
1pc x Power Adaptor for VCI Module
1pc x Cigarette Lighter Cable
1pc x Battery Clamps Cable
1pc x HD In / Ouut Cable
1pc x Pasword Envelope
1pc x Non-16pin Adaptor Cable
1pc x Quick Start Guide
