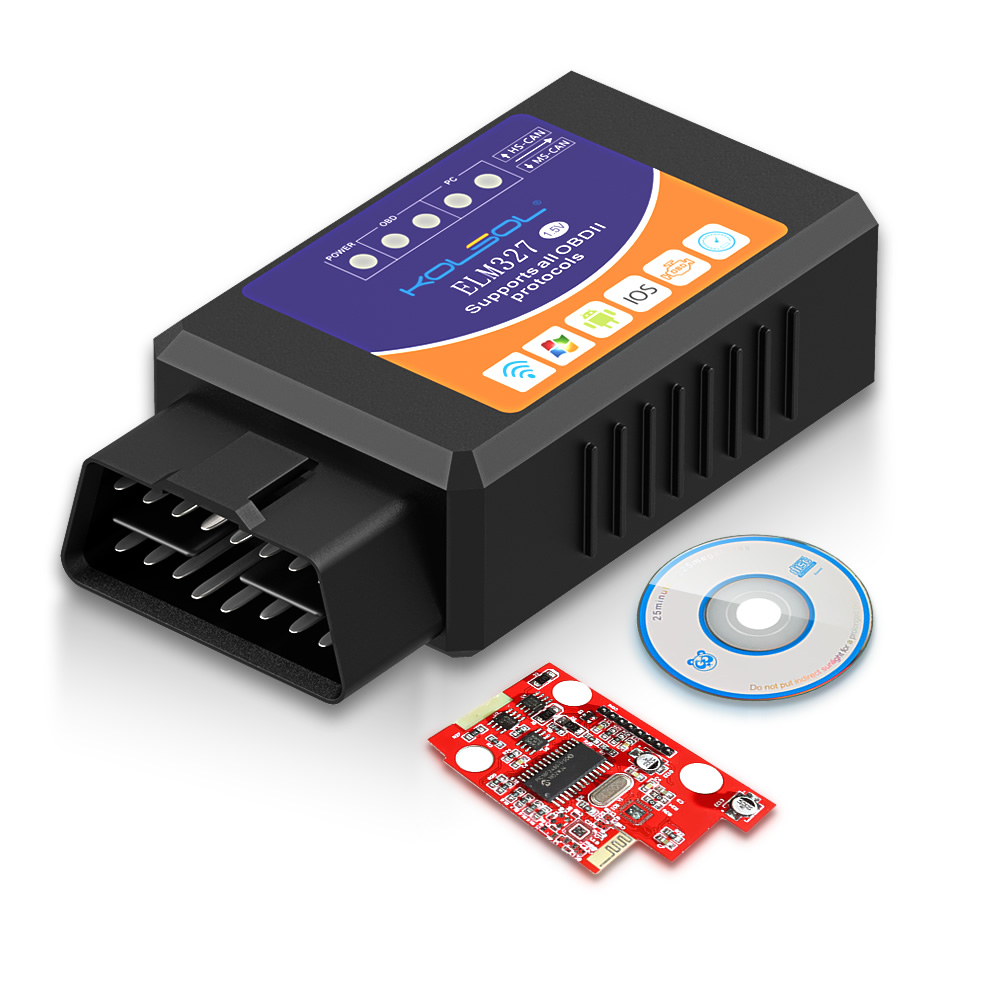

KOLSOL ELM327 WIFI OBD2 Scanner V1.5 ELM327 with Switch Car Scanner
Description:
WIFI Elm327 is a versatile, all-round high-tech automotive electronics products, with the vehicle ECU computer interface and data synchronization, achive the vehicle electronic control system monitoring; The internal functions of the vehicle will be setting through the vehicle ECU computer system, the driver can be more humane to use their own car.
It is not just an information display system, but also a very powerful fault detection equipment to find out whether the vehicle is faulty. The system can clearly display the text in the form of fault information to protect the interests of the owner.
Highlights:
1. Enable to read diagnostic trouble codes.
2. This high quality scan tool with switch.
3. It supports all OBD-II protocols.
4. It is compatible with many software.
Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others...
Supported Protocols:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
Compatible systems:
Software support platform: Windows XP, Windows 7/8, IOS,Android, Symbian .
Package includes:
1PC x KOLSOL ELM327 Wifi OBD2 Scanner V1.51PC x CD-ROM
