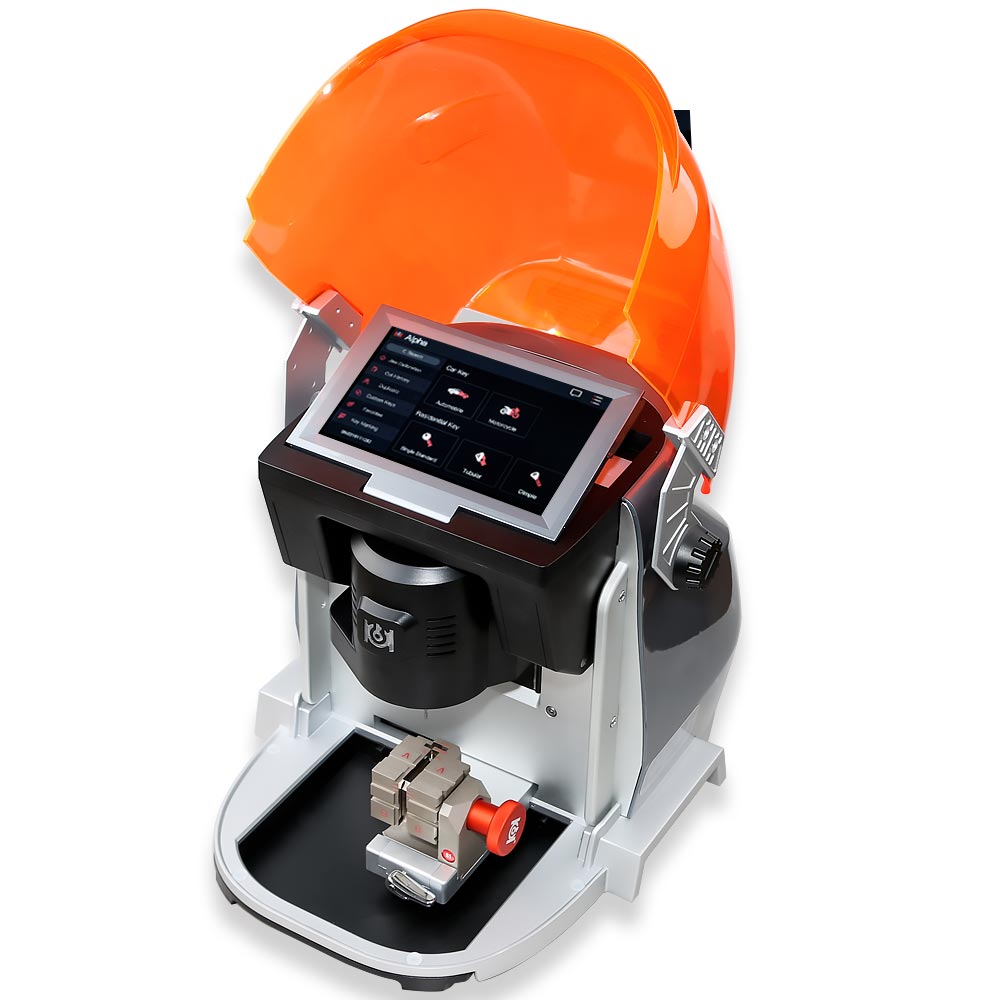

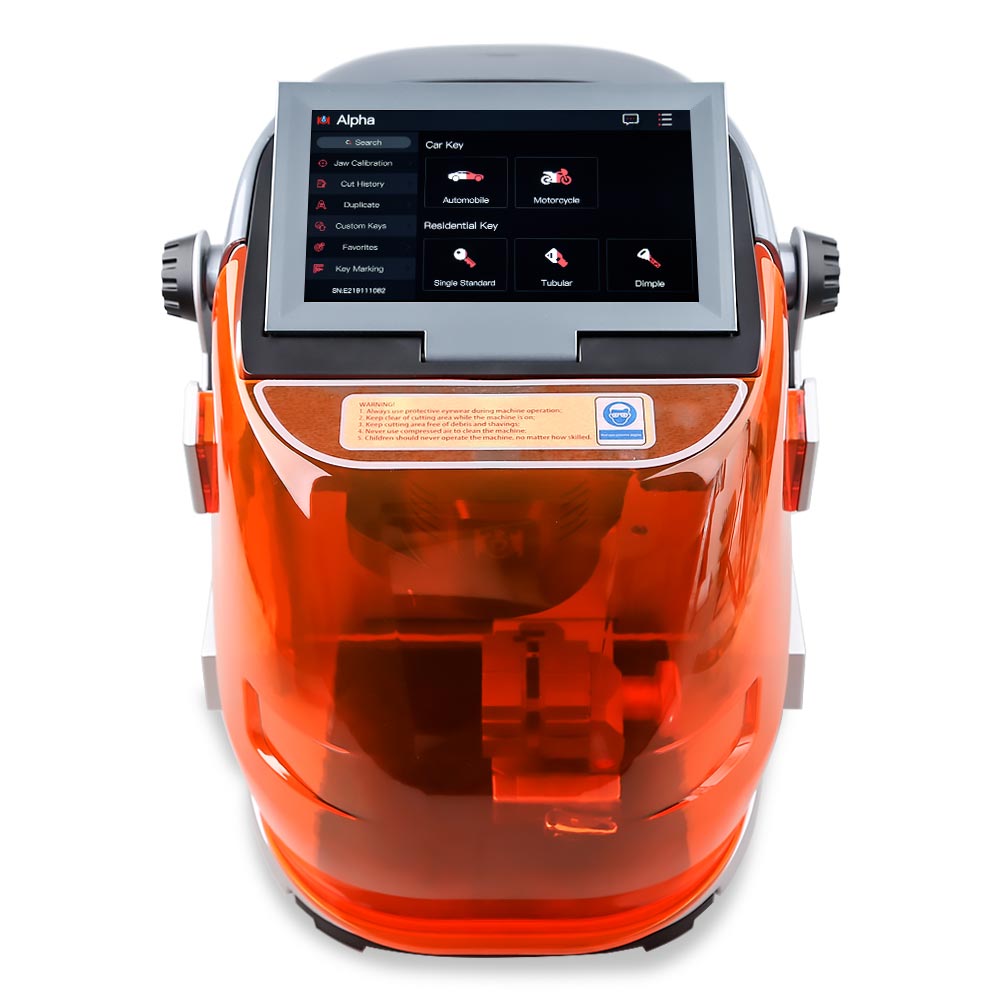

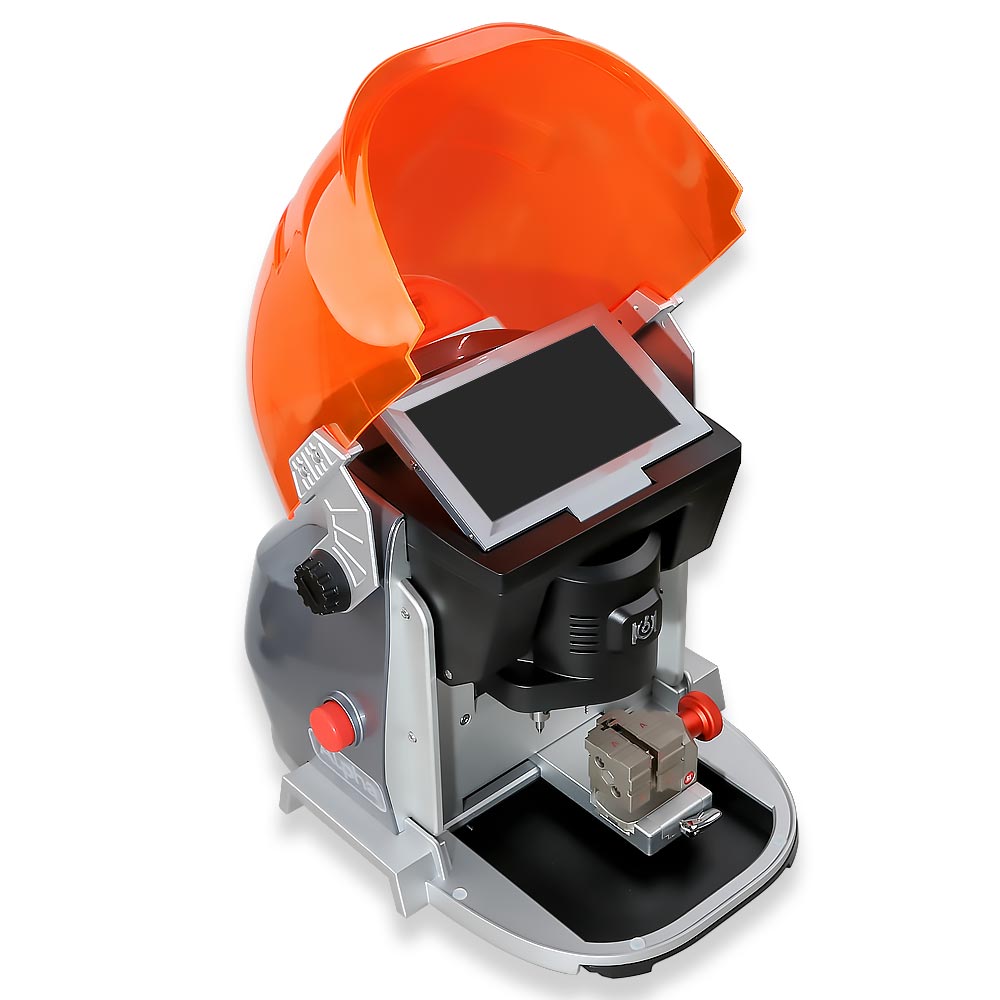

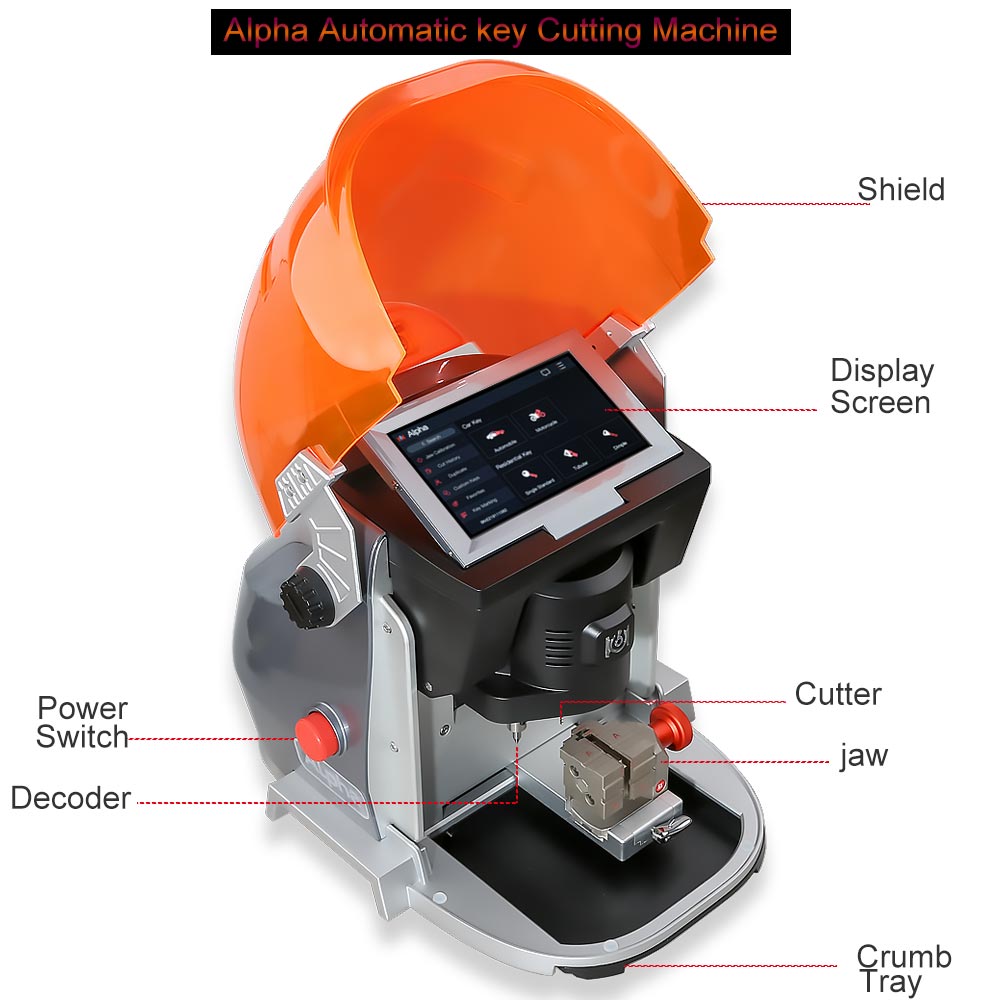

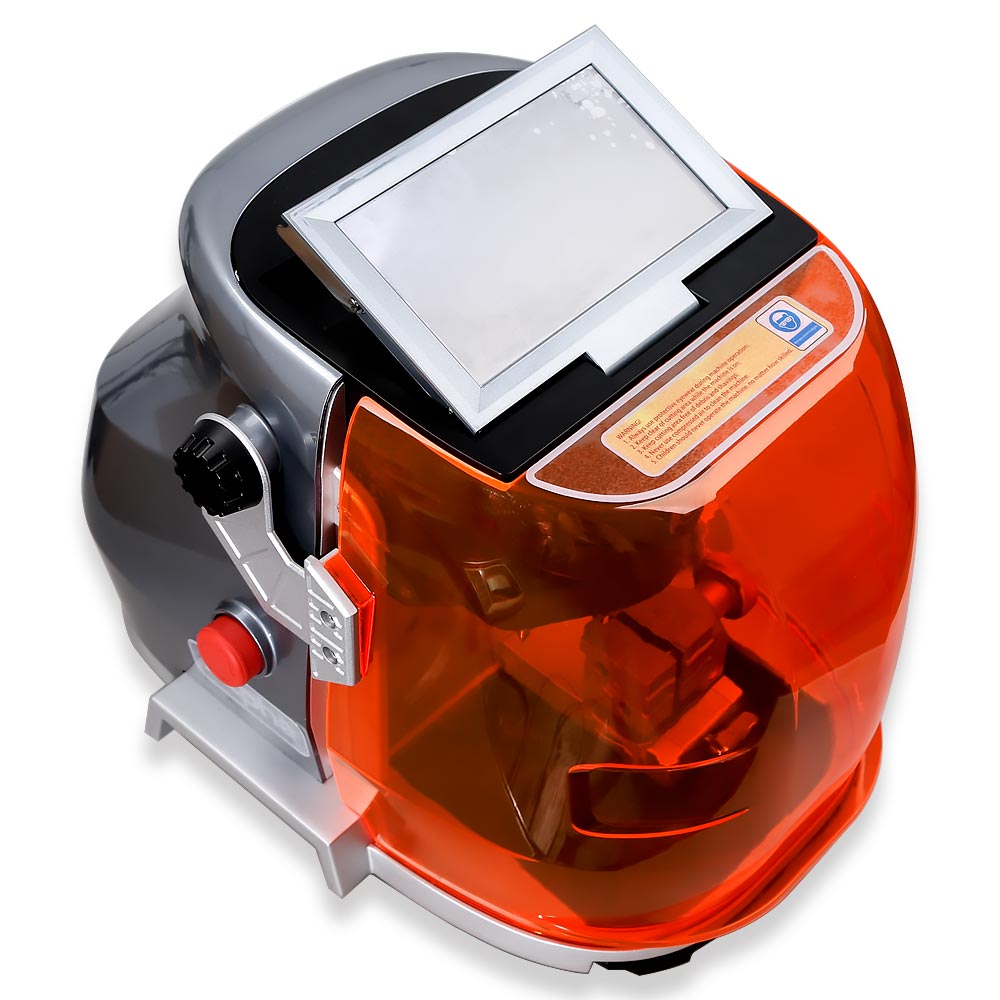

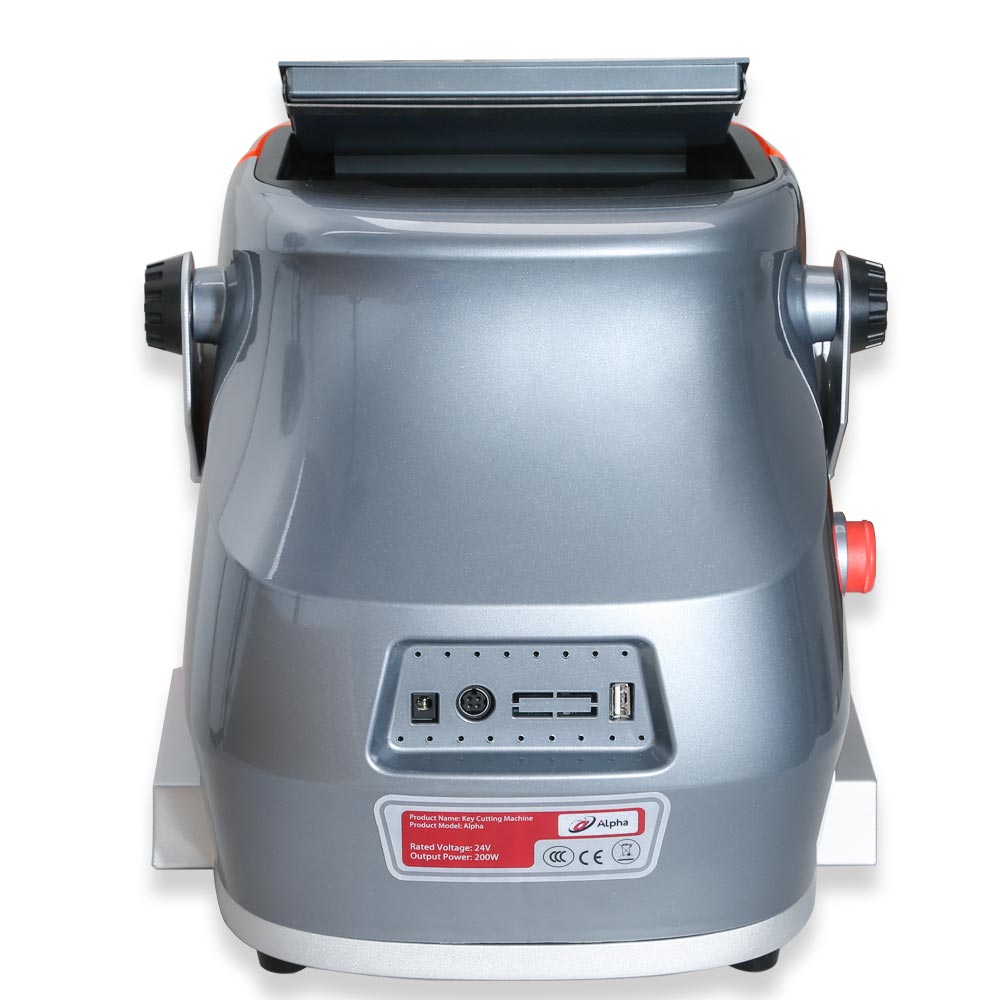

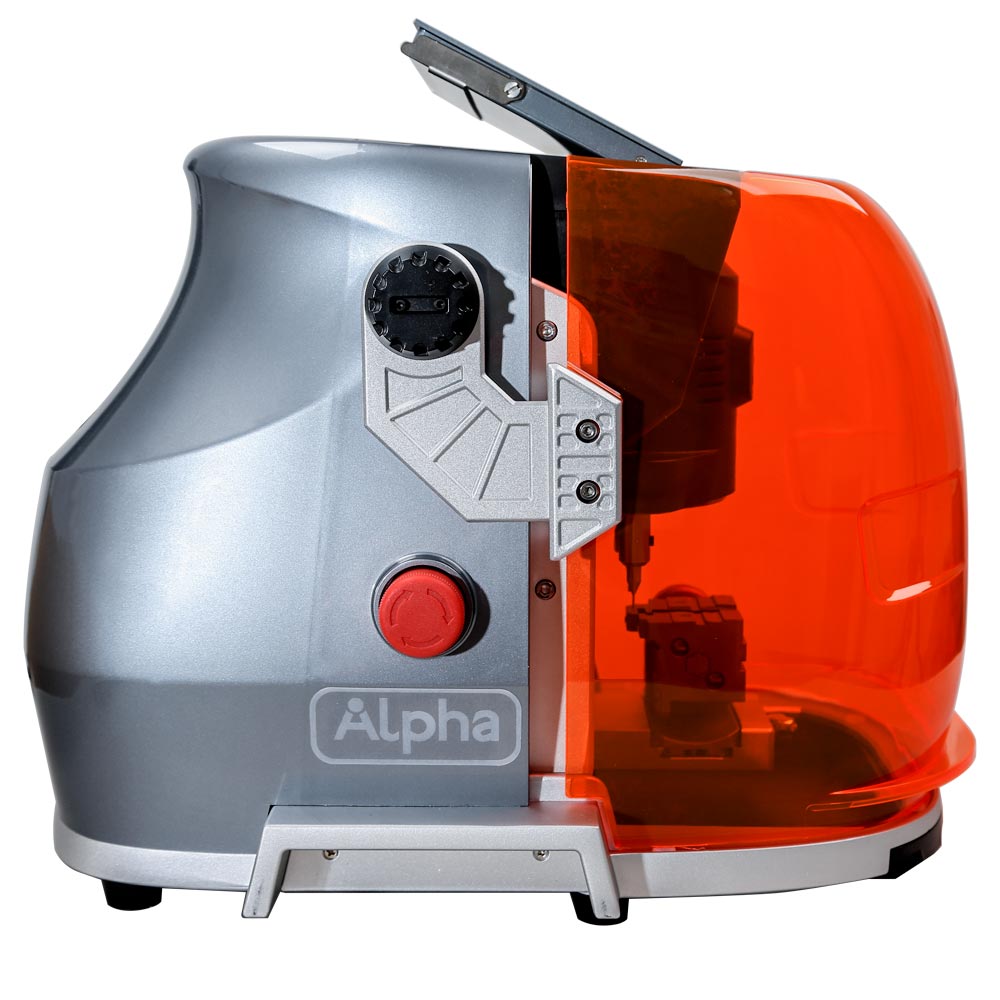

Kukai Alpha All In One  Automatic Key Cutting Machine

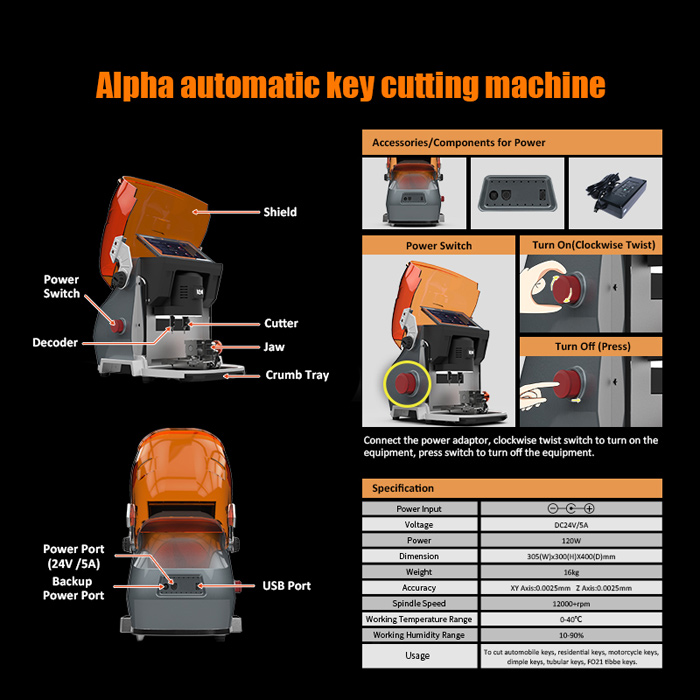

Product Parameters: Power 120W

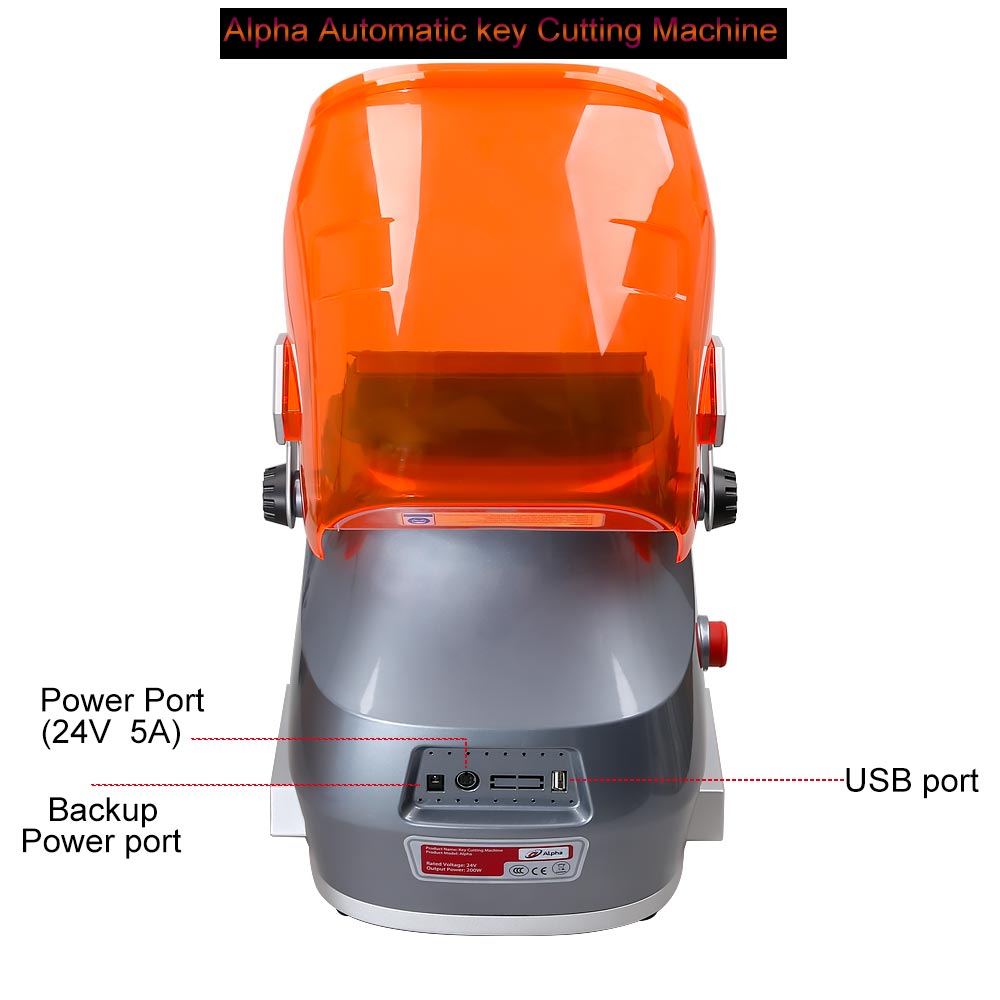

Voltage DC24V/5A
Dimension 305(W)X 300(H) X 400(D)Mm
Weight 16kg Accuracy XY Axis:0.0025mm Z Axis:0.0025mm
Spindle Speed 12000+Rpm
Temperature Range 0-40°
Humidity Range 10-90%
Usage Auto，Residential，Commercial Keys

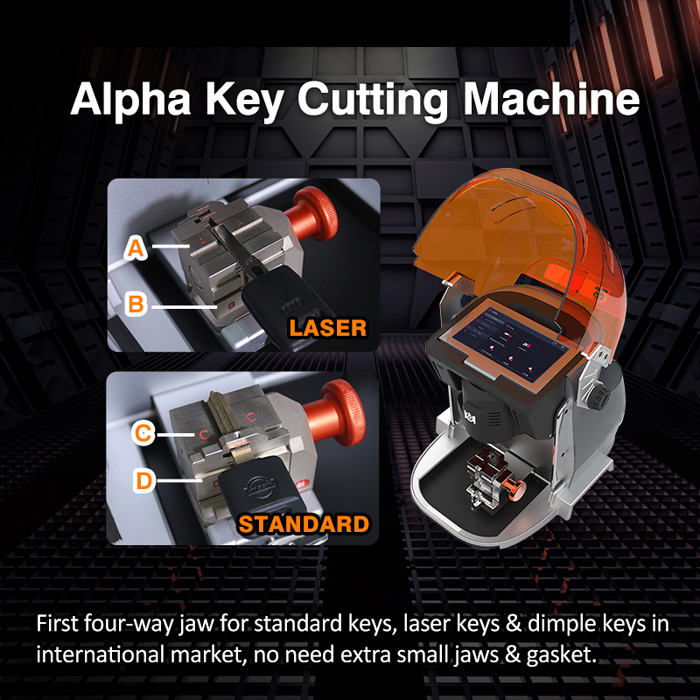

First 4-way jaw for standard keys, laser keys & dimple keys in international market

Advantage of Alpha automatic key cutting machine

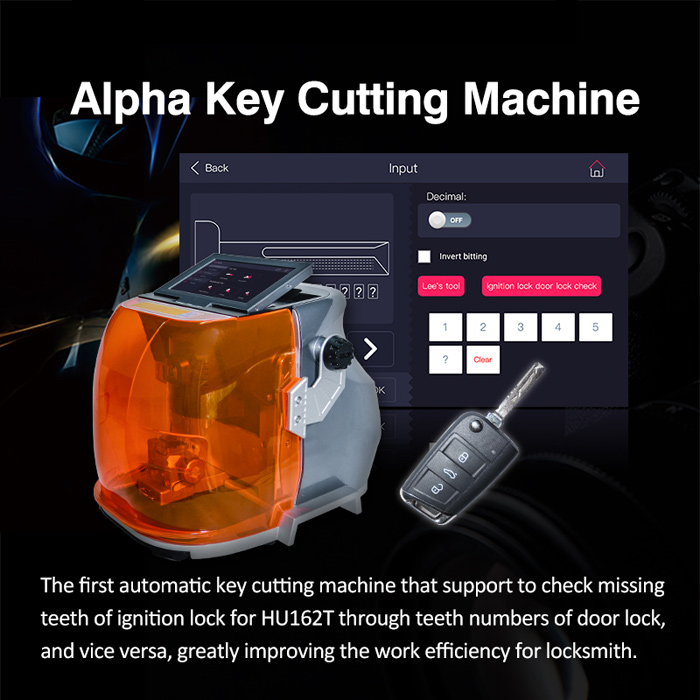

New jaw and cutting system, better compatible with folding keys and smart card small keys, more convenient and versatile; Latest original jaw design, to support to directly cut Volkswagen Audi HU162T key and Toyota& Lexus TOY2 key, no need small jaws; The first automatic key cutting machine that support to check missing teeth of ignition lock for HU162T through teeth numbers of door lock, and vice versa, greatly improving the work efficiency for locksmith; Some optional jaws for your choice, including house key jaw, FO21 key jaw, tubular key jaw and engraving jaw; Graphic display of each key.

Feature of Alpha automatic key cutting machine

Support to cut automobile,Chinese car,residential,dimple & tubular keys etc. Adopted high-precision ballscrew for X, Y & Z axis,bringing higher repetitive positioning accuracy. Adopted DC brushless motor for Z axis to control cutter directly,bring higher cutting precision and lower noise. Portable for mobile , easy to work outside Equipped with tool box to place decoder, cutter, calibration block etc.

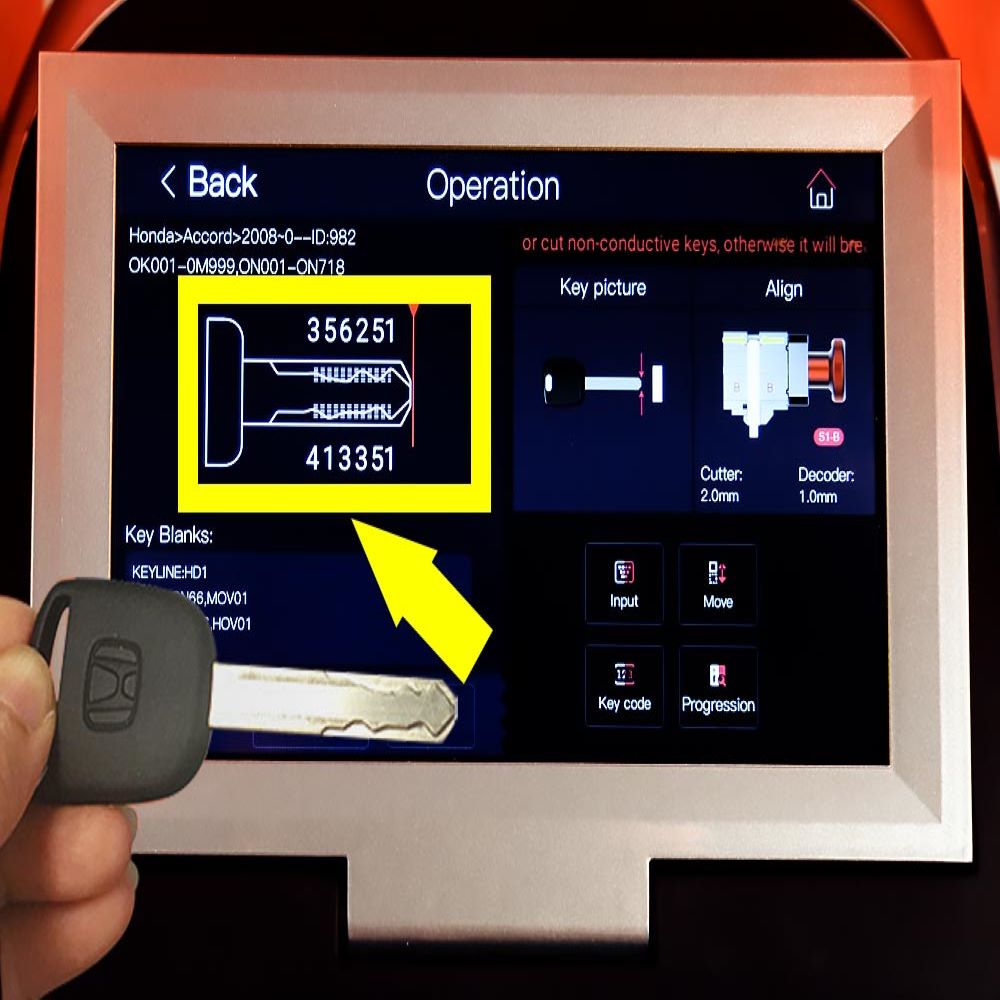

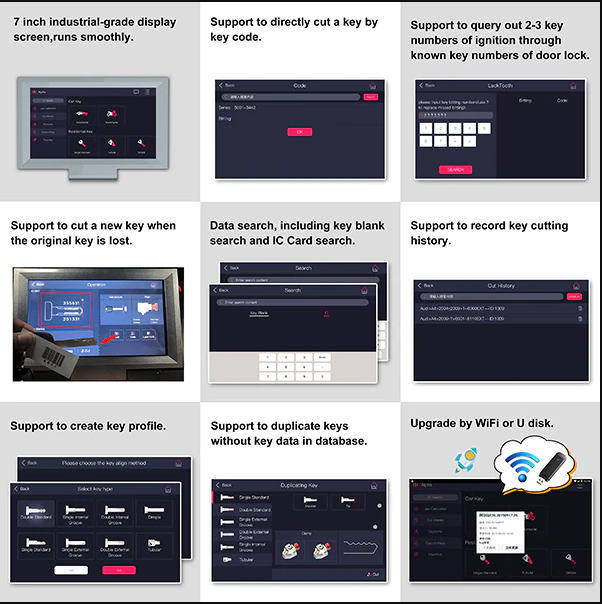

Feature of Software

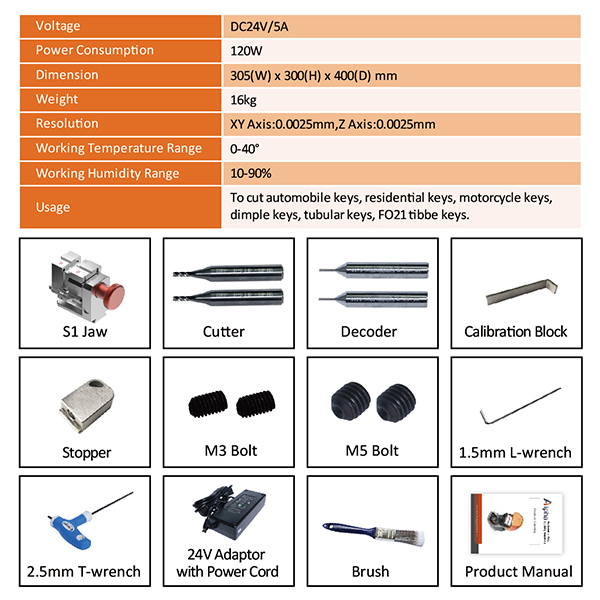

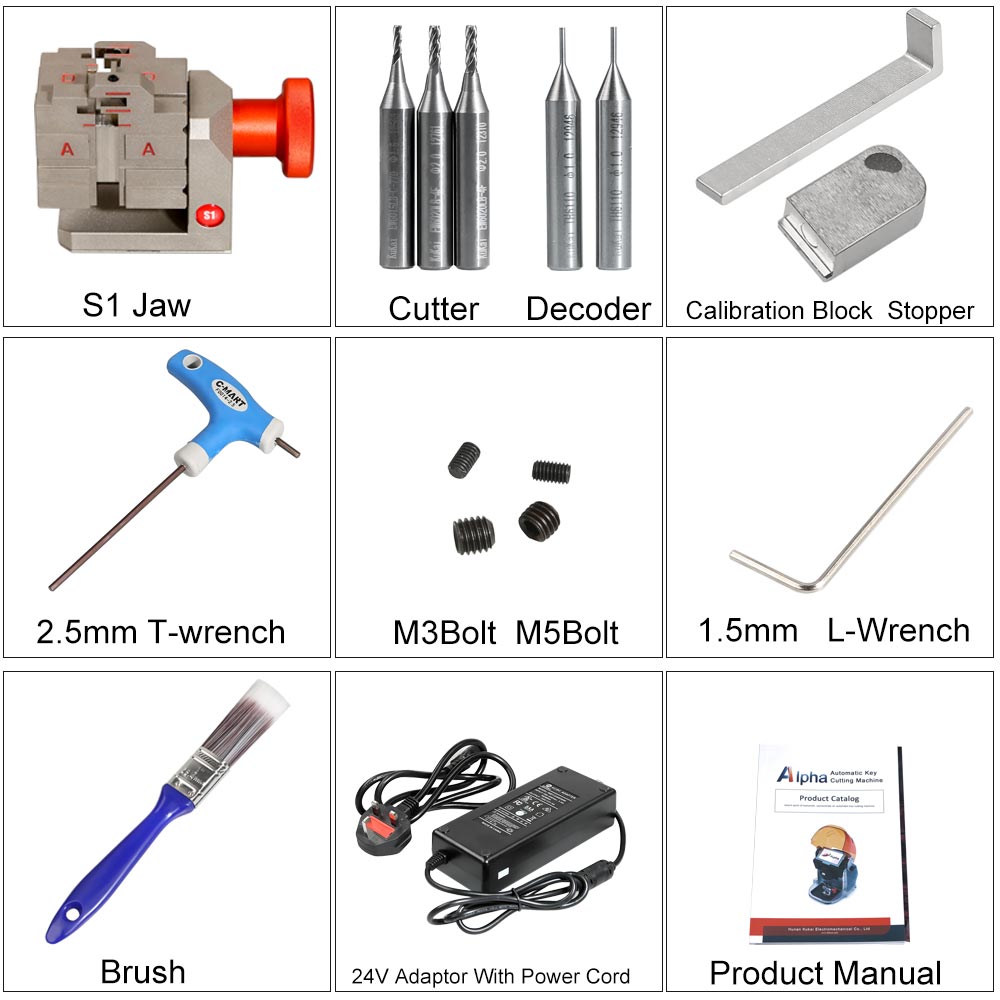

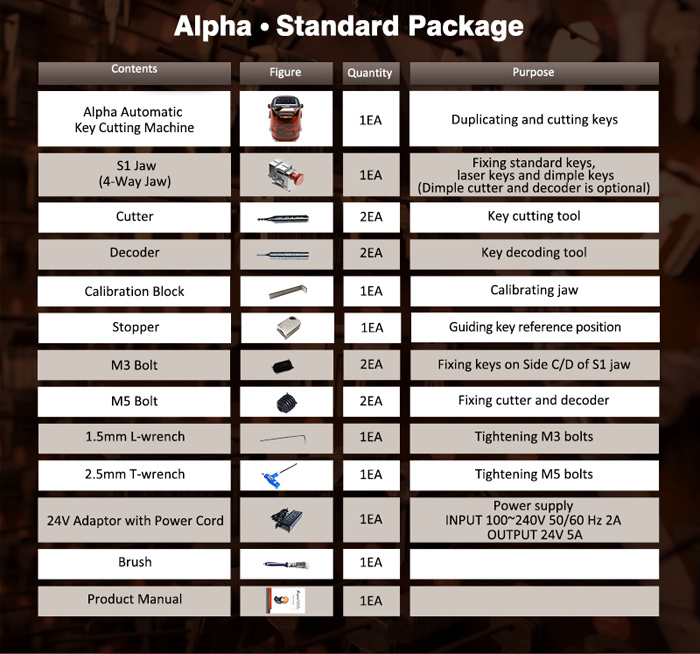

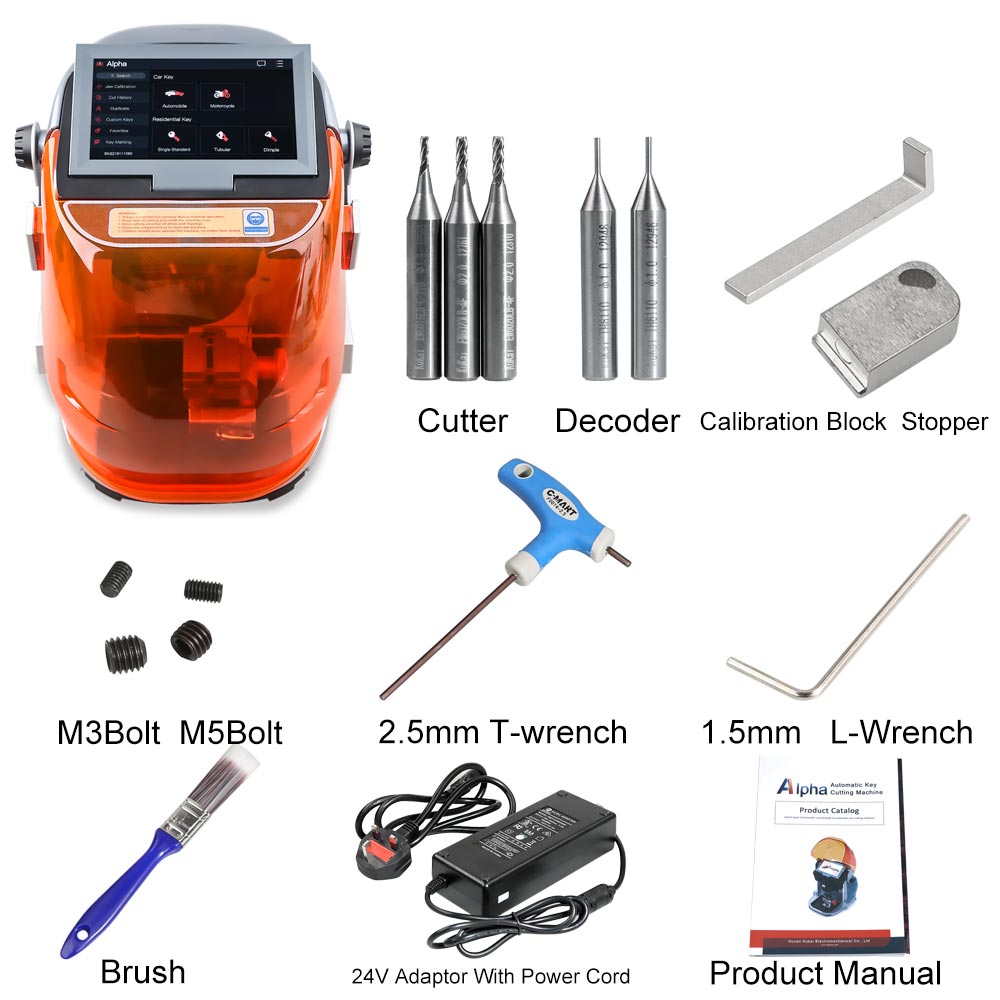

Technical parameter & package standard


Special feature:

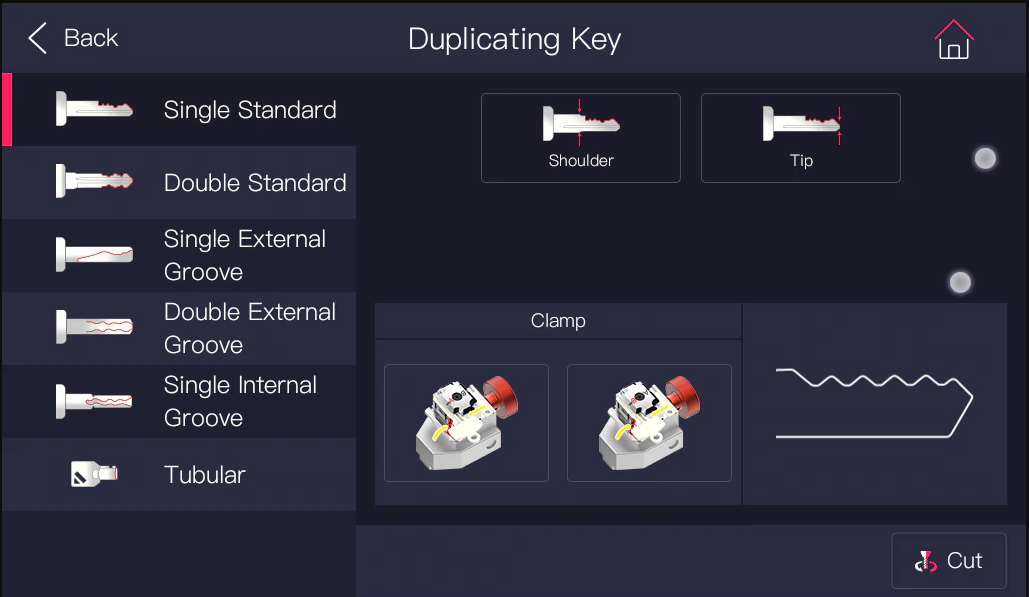

Support to duplicate keys without key data in database Including single standard keys, double standard keys, single external groove keys,double external groove keys,internal groove keys & tubular keys
