Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator

Top 3 threes to get 1008B 8CH PC Oscilloscope/DAQ/8CH Generator:

1. Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing

2. 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function

3. 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.

1) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function

2) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.

3) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.

Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator parameters:

Model	Hantek1008
Oscilloscope Mode
Vertical System
Analog Channel	8
Input Impedance	Resistance: 1MΩ
Input Sensitivity	10mV/div to 5V/div
Input Coupling	DC
Resolution	12 bits
Horizontal System
Memory Depth	4K
Max. Input	400V (DC+AC Peak)
Real-Time Sampling Rate	2.4MSa/s
Time BaseRange	1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision	±50ppm
Trigger System
Time Base Range	1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision	±50ppm
Trigger Source	CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Trigger Mode	Edge
X-Y Mode
X-Axis Input	CH1
Y-Axis Input	CH2
Cursors and Measurement
Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement	Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process	+,- , x,÷, FFT, Invert
Voltage Range	10mV to 5V/div @ x 1 probe  100mV to 50V/div @ x 10 probe 10V to 5000V/div @ x 1000 probe 100V to 50000V/div @ x 10000 probe 200mV to 100V/div @ 20:1
Current Range	100mA to50.0A/div @ CC65(20A) 1000mA to500.0A/div @ CC65(65A) 1A to100.0A/div @ CC650(60A) 1A to200.0A/div @CC1100(100A) 10A to2000.0A/div @CC1100(1100A)
FFT	Rectangular, Hanning, Hamming, Blackman Window
Math	Addition, subtraction, multiplication, division
Programmable Generator
Channel	8
Output Level	LVTTL
Frequency Range	0-250kHz
Interface	USB 2.0(Full Speed)
Power	No need extra power supply
Size & Weight	185 x 150 x 27 (mm); 0.35kg

Package including:

1pc x 8CH USB Auto Scope/DAQ/8CH Generator

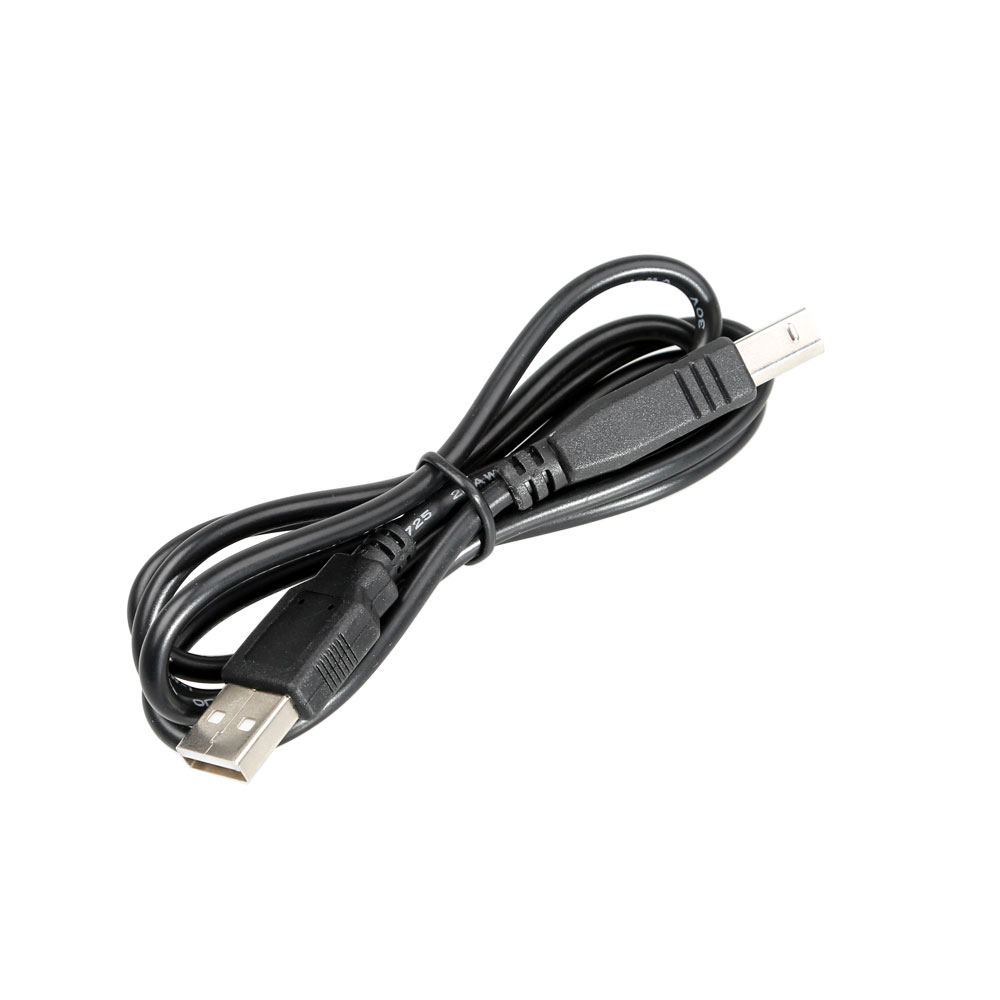

1pc x USB Cable
4pcs x Connect cable
4pcs x BNC Connector
1pc x CD for English software
