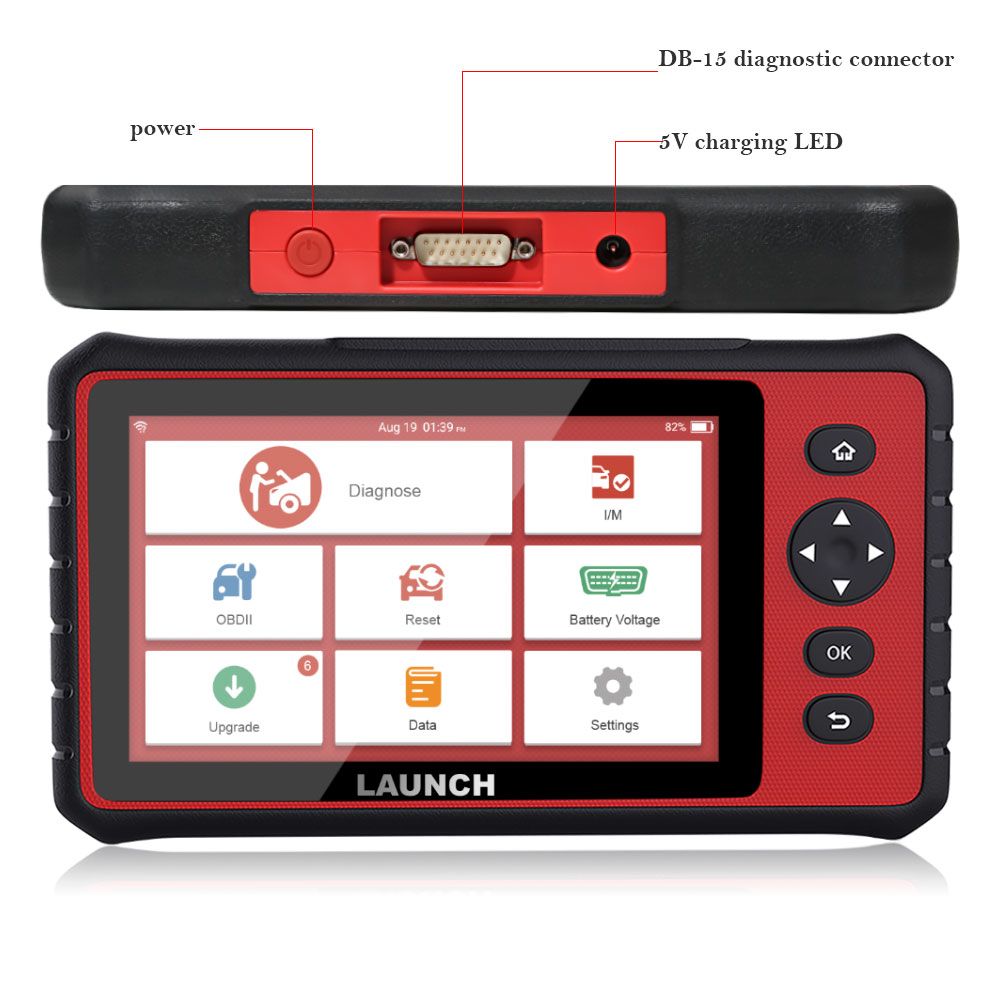

LAUNCH X431 CRP909 All System Diagnostic Scanner with 15 Special Functions



LAUNCH CRP909 is an newest evolutionary Android smart solution for 12V passenger cars, Suvs, light duty trucks, pickup trucks diagnosis & maintenance. CRP909 is a full system scanner which can diagnose all of electronic systems in your vehicle, the most surprised thing is it has 15 reset functions, frequently used maintenance and reset items can be done. It includes Oil Reset Service, Electronic Parking Brake Reset, Steering Angle Calibration, ABS Bleeding, TPMS (Tire Pressure Monitor System) Reset, Gear Learning, IMMO Service, Injector Coding, Battery Maintenance System, Diesel Particulate Filter (DPF) Regeneration, Electronic Throttle Position Reset, Gearbox Matching, AFS (Adaptive Front-lighting System) Reset, Sunroof Initialization and Suspension Calibration. It's a good choice for car repair garage, car beauty service parlors, auto mechanic and DIY car owners.

Launch CRP909 Highlights :

1. Full Systems Diagnoses Function,Smart Auto-Detect Diagnosis
2. 15 Special Reset and Maintenance Service Function: ABS/AFS/EPB/DPF/SAS/Oil/TMPS/IMMO/Injector Coding/Gear Learning/Battery Match......
3. High configuration tablet: Based on Android 7.1, 7' inches touch screens and high configuration. Just connect it via wifi, download the apps you like.
4. Remote technical assist and feedback: You are enabled to receive or ask remote assistance service from LAUNCH technical engineers and mechanic.
5. Multi-Language : English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean
6. One-Click Free Update Online



LAUNCH CRP 909 All OBD-II Functions:

Engines Auto Transmission Airbags Immobilizer ABS ESP system Cruise Control system Gateway Body Systems Steering system TPMS system Rain Sensors 4WD System Stabilizer Intelligent Parking Assist Audio Radio Systems Air Conditioning Central Locking Electric Windows Heated Rear Window Xenon Headlights Wash Wipe Fuel Burning Heater Seat & Door Motor system Electronic Throttle system Electronic Spark System



LAUNCH X431 CRP909 15 Special Reset Function

Frequently used maintenance and reset items can be done. It includes Oil Reset Service, Electronic Parking Brake Reset, Steering Angle Calibration, ABS Bleeding, TPMS (Tire Pressure Monitor System) Reset, Gear Learning, IMMO Service, Injector Coding, Battery Maintenance System, Diesel Particulate Filter (DPF) Regeneration, Electronic Throttle Position Reset, Gearbox Matching, AFS (Adaptive Front-lighting System) Reset, Sunroof Initialization and Suspension Calibration.



1. Oil Lamp Reset Service:
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. EPB service:
Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

3. BAT battery service:
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF service:
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS service:
helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. TPMS service:
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. IMMO Key Programming:
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding:
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system

9. Sunroof Reset:
The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies

10. Suspension Reset:
Try reset electronic suspension air ride with the massage system close all doors koeo flip through message system go to suspension reset or on off

11. Gearbox Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12. AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel

13. Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled.
Otherp roblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off

14. Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

15. Gear Learning:
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

Launch CRP909 Supported Car List:

for OBD-II EOBD, for ACURA, for Alfa Romeo, for Audi，for BMW, for BUGATTI, for Chrysler，for Jeep, for RAM, For Citroen,for DACIA, for Daewoo, for Euro Ford, for Fiat, for USA Ford, for Mitsubishi, for Nissan, for Opel，for Peugeot, for Porsche , for Renault, for SAAB, for SAMSUNG, for Seat, For Skoda, for Smart, for Sprinter, for Subaru, for Suzuki, for SAAB, for SAMSUNG for Toyota, for Vauxhall, for Volvo, for VW, for USA GM, for Gmsa, for Honda, for Hyundai, for Infiniti,  for Jaguar, for Kia, for Lancia, for Land rover, for Lexus, for Lincoln, for Mazda, for Mercedes , for Mini,for Mahindra, for TATA, for Maruti,for VAZ, for Maserati,for GMC, for Chevrolet, for Cadillac,for Buick...

Note: These special functions are NOT for all car models, if you are confused, you can send your car brand, model and release year to us, or check from official page http://qcar.x431.com/newqcar/



Creader CRP909 Special Function Vehicle List :



How to Update Launch CRP909 Software:

1. Input mailbox activate machine and connect with wifi network before update work
2. If some new software or APK can be updated, a numeric indicator will display on the "Upgrade" module on the Job menu. In this case, you may use this option to keep it synchronized with the latest version.
3. Tap "Upgrade" on the Job menu to enter the update center. By default, all diagnostic software is selected.
4. To deselect certain software, tap "Unselect", and then check the box next to vehicle model.
5. Tap "Update" to start downloading. It may take several minutes to finish it, please be patient to wait. To pause downloading, tap "Stop". To resume it, tap "Continue". If network connection failure occurs, tap "Retry" to try again.
6. Once download is finished, the software packages will be installed automatically.

Launch CRP909 Technical Parameters:

Operating System:Android 7.1
Processor:Powerful Quad-Core Processer
RAM:1GB
ROM:16GB
Display:7 inch IPS touch screen
Connectivity:Mini USB 2.0,  Wi-Fi
Battery:6000mAh lithium-polymer battery
Battery Life:more than 8 hours
Product Size:9.8x5.5x1.5(inch)
Product Net Weight:700g



Launch CRP909 Package:
