VAS 5054A Bluetooth ODIS V5.2.6 VW Audi Bentley Lamborghini Diagnostic Tool with OKI Chip Multi-languages



Top 4 Reasons To Get VAS5054A:

1. Software Version: ODIS V5.2.6

2. Support Multi-Language: English /Japanese /Portuguese /Romanian /Korean /Dutch /Polish /Turkish /Spanish /French /Italian /Croatian /
Danish /German /Swedish /Finnish /Slovenian /Czech /Russian /Greek /Chinese

3. Bluetooth Version(Bluetooth Connection Password: 082145725)
4. Support Car models: VW, Audi, Seat, Skoda, Bentley and Lamborghini



Note:
1. If you need the software for Lamborghini, Bentley, please leave us information when order
3.  This VAS 5054A hardware support Online Coding with VW dealer's software,our software do not support online coding

VAS 5054A Computer Windows System Requirements:



Windows System Language: American English

Win 7 Professional version

System C:// have to be NTFS format

C:// need to have at least 40GB space for installing VAS 5054A


The Following Vehicle Bus Systems are Supported:



K line (ISO9141-2)

High-speed CAN (ISO 11898-2)

Low-speed CAN (ISO 11898-3)

J1850 (SAE J1850)
UDS Protocol
PWM Protocol



VAS 5054A Description:



The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.

The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.

No cables are needed for vehicle diagnostics using the VAS 5054A.

The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.

The Serial Port Profile (SPP) is used for data transfer via Bluetooth.


VAS 5054A Specification:



The vehicle protocols are handled directly in the VAS 5054A.

This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.The diagnostic application and the associated Diagnostic Base System are installed on the application PC.

The diagnostic base system can access the VAS 5054A via Bluetooth or USB.Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.



VAS 5054A Package List:



1pc x VAS 5054A Main unit

1pc x USB Cable

1pc x USB Bluetooth Adapter

2pcs x CD Software

1pc x Carry Case

FAQ:

Q:How to select language when use ODIS?
A:There are two ways to select language. One is automatically identified by system, if your system language is English,then your ODIS software language is also English
The other way is you select language when you install the software,but it must be the same in these two places.

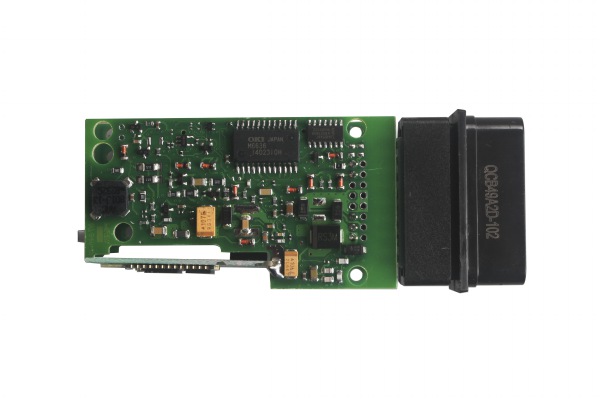

PCB Board Display:
