VXDIAG MULTI Diagnostic Tool For TOYOTA V9.30.002+ HONDA V3.014+ LandRover/Jaguar JLR V139 3 IN 1 Support Original Software

VXDIAG is the latest diagnostic software platform. Diagnostic software can be operated under WinCE and Windows, available installation for Laptop or PDA.
Automotive Diagnostic language (VDL) exploitation platform based on XML by self -determination  and high efficiency  database management  system, these will make it easily to explore the vehicles.

Top 4 Reasons to Get VXDIAG Multi Diagnostic Tool:

1. This version VXDIAG support Toyota, Honda, LandRover & Jaguar 3 software in 1 device. Now Can Also Pay to Get Subaru Software Update Package andPorsche Softare Update Package. It is support original software if you already have it.
2. VXDIAG support add more original software in future, you only need buy authorization from us. Already released original software authorization has Toyota, Honda, LandRover, Jaguar, and Porsche. Software will release soon including: Volvo, Subaru, Chrysler, GM, Ford, Mazda, Kia, Hyundai, GMC, Nissan, Suzuki, VAG, BMW, BENZ, FERRARI and Marerati.
3. Support both 12V and 24V gasoline and diesel car.
4. Hardware support 4-way CAN BUS and 2-way K - Line/L-Line, support multi-protocol high-speed and concurrent communication
5. With the innovation design of OBD II intelligent bus protocol routing hardware, a diagnostic plug can be intelligent identification test all  models, fully meet the future  demand for all kinds of bus communication

Toyota V9.30 Supported languages:



Jlr V139 Supported languages:


VXDIAG Multi Diagnostic Tool Software Update: When original newer software coming out, you need send back the old version HDD back for update

VXDIAG Multi Diagnostic Tool Software Version:

Toyota 9.30
Honda 3.014
LandRover, Jaguar Version V139
VXDIAG Multi Diagnostic Tool support all original software function.

VXDIAG Multi Diagnostic Tool Language: Multi Language support like English, Spanish, German, Italian, Japense, French and so on.

VXDIAG Multi Diagnostic Tool Specification:

1. Item State

RAM 32bit180MHz ARM
FLASH 1MByte FALSH
Diagnostic Port 24PIN, self-determination design
LED 4 LED indicator light,indicate power and status.
Power DC 9V-36V
Consumption 3W
Working Temperature -20°C~70 °C
Storage Temperature -40°C~85 °C
Warranty: One Year

2. Product Feature

1. Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles protocols.
2. Diagnostic software accord with international standard, collocate communication port flexibly, less connectors
3. Self-determination design for connectors and cables.
4. Hardware accord with CE and FCC standard.
5. Support almost all vehicles socket.

VXDIAG Multi Diagnostic Tool Supported Protocols:

ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 CAN
SAE-J1850-VPW (GM Class2)
SAE-J1850-PWM (FORD SCP)
ISO-11898-2 DWCAN
ISO-11898-3 DWFTCAN
SAE-J2411 Single Wire CAN (GMLAN)
SAE-J2610 SCI (Chrysler)
SAE-J1567 CCD BUS (Chrysler)
SAE-J2740 GM ALDL
SAE-J2809 (HONDA DIAG-H)
CAN125/CAN250/CAN500/CAN1000
SAE-J1939 CAN
SAE-J1708/J1587 On RS485
CAT DATALINK (Catepillar)
ATA DATALINK (Catepillar)

PC Requirement:

Processor: Pentium 4 / 1.6GHz+.
Memory: 1G Bytes or more.
Hard disk: 40G or more.
Display: Resolution 1024x768 or higher.
Network interfaces: LAN 10 / 100M or 802.11b / g.
Communication Interface: USB2.0 or USB3.0
Operating System: Windows XP / Vista / Win7 / Win8 / Win8.1.

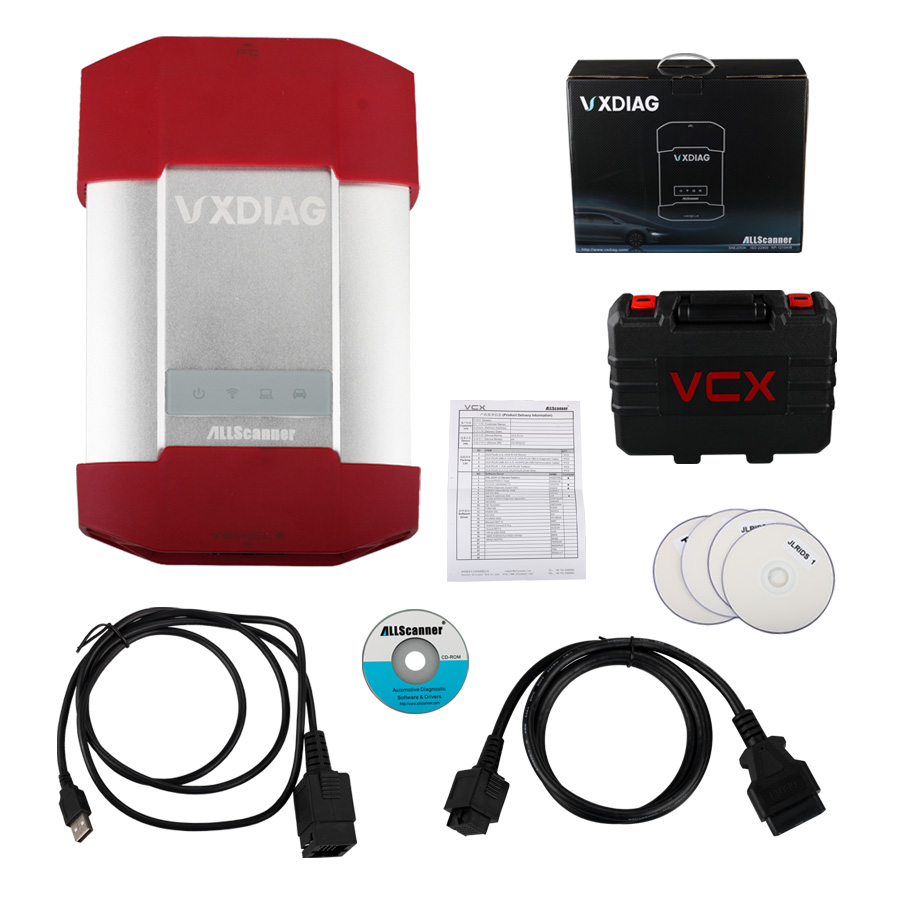

Packing List:

1pc x VXDIAG VCX-PLUS
1pc x OBDII Cable
1pc x USB Cable
1pc x CD
