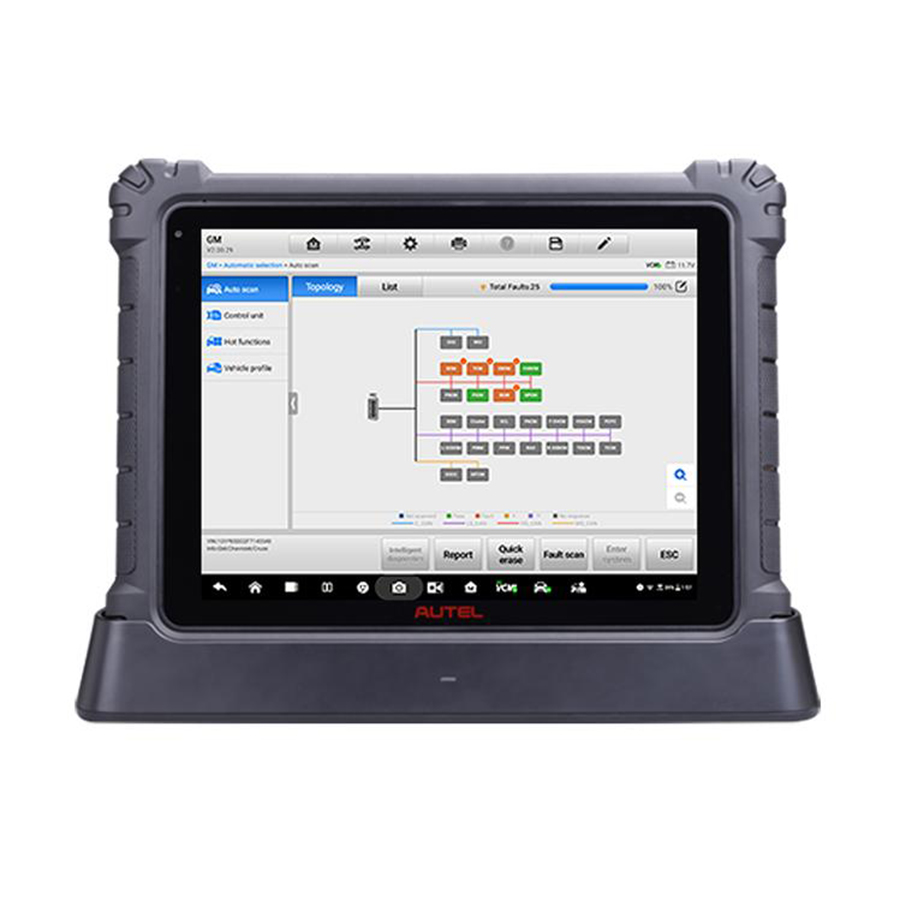

Autel MaxiSYS Ultra Diagnostic Tool with Advanced VCMI


• The MaxiSys Ultra is Autel's most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.



Autel Maxisys Ultra Features:

• Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0
• 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
• Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
• Oscilloscope Preset Guided & Component Tests / Waveform Library
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Split Screen Multi-Application Function / Dual Wi-Fi Connection
• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
• Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
• Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
• Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
• Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

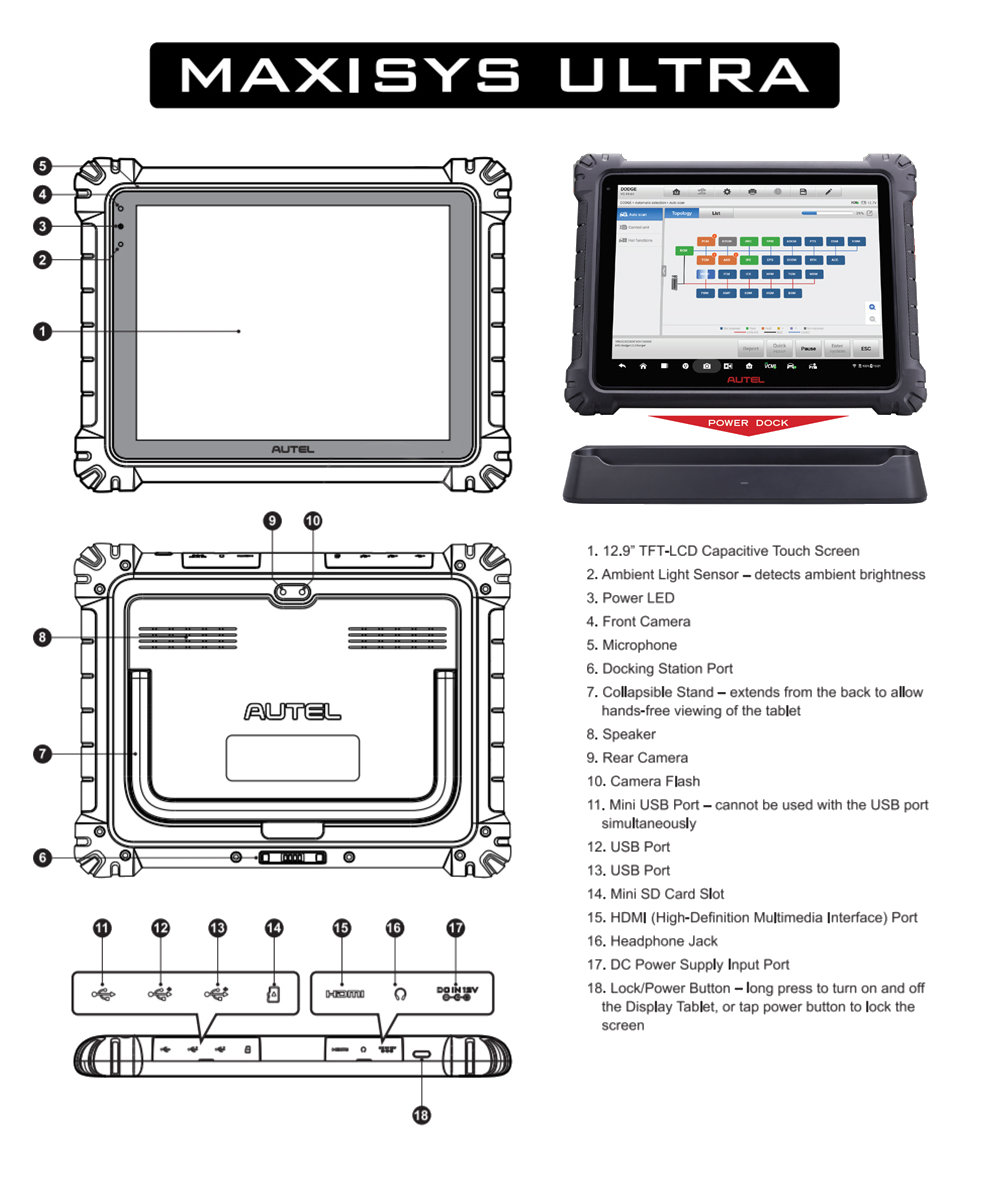

Autel Maxisys Ultra Specification:

• Operating System: Android 7.0
• Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
• Memory: 4GB RAM & 256GB On-board Memory
• Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
• Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO); BT v.2.1 + EDR; GPS; USB 2.0 (Two USB HOST Type A, one USB mini device); HDMI 2.0
• SD Card: (Support up to 256GB)
• Camera: Rear: 16 Megapixel, Autofocus with Flashlight; Front: 5 Megapixel
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack;
• Power and Battery: 18000mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
• Input Voltage: 12V/3A Adapter
• Operating Temp.: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Dimensions: (WxHxD) 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
• Weight: 2.18kg (4.81 lb.)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Autel MaxiSYS Ultra Package Content:

• Maxisys Ultra Main Unit
• MaxiFlash VCMI
• Main Cable V2.0
• USB 2.0 Cable V2
• AC/DC Adapter(12V)
• Cigarette Lighter
• Light Fuse 6x30mm 2PCS
• Clipper Cable
• Scope Test Lead 4PCS
• Multimeter Test Lead 2PCS
• Secondary Ignition Pickup 2PCS
• Attenuator 20:1 2PCS
• Breakout Lead 4x6PCS
• Multimeter Probe 1x2PCS
• Flexible Back-pinning Probe 2x2PCS
• Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5PCS
• Back-pinning Probe Screw 2PCS
• Back-pinning Probe Replacement Needle 20PCS
• Small Crocodile Clip 2x2PCS
• Large Dolphin Clip 1x2PCS
• Quick Reference Guide
• Packing List
• Soft Cloth
• Tool Box 177 x 102.5 x 23.5 mm
• Carrying Case 687 x 170 x 470 mm
