Launch X431 PAD VII PAD 7 with X-PROG3 Immobilizer & Key Programmer

X-431 PAD VII is an unexpected high-end diagnostic tool from LAUNCH, comes with the ADAS calibration function, 32 service functions, TPMS service and 8 extended modules functions. New Smartlink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle types.



Why do you buy Launch Tools from US?

• Launch X431 official authorized dealer
• 1 Year Free Update Online on Launch Official Website, 1 Year Warranty
• Global Version without IP Blocking Problem
• Bundle package saves more



Launch X-431 PAD VII Highlights:

Topology Mapping

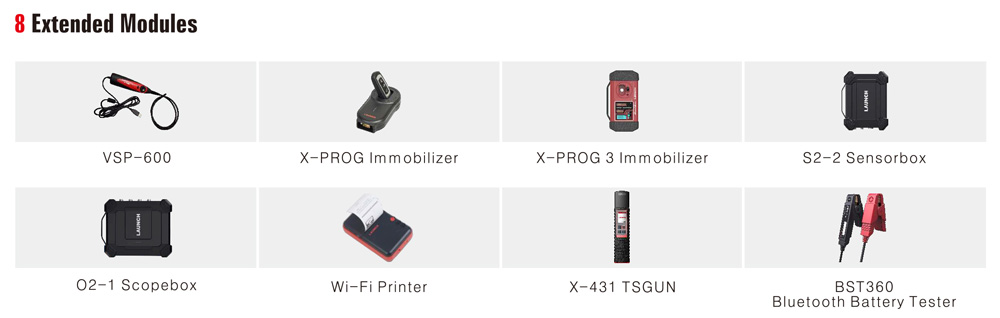

8 Extended Modules
With 32 services functions
Optional ADAS Calibration Functions
Online Programming: BMW, Benz, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti and many coverage from Smartlink
Supported Language: English, Chinese and other language depending on the car makes
Supports gasoline cars and diesel heavy-duty trucks (need to purchase truck software in 'Mall')

Note: Online Programming function has not been authorized in the USA, Canada, and Spain.



Launch X-431 PAD VII PAD 7 Features:

1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
2. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
4. Topology mapping gives a visual checking on DTCs and all systems communication status
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
7. Intelligent diagnostic enable identify VIN automatically and access system quickly
8. Guided function for VW and AUDI
9. Optional ADAS calibration function increases more revenue
10. Advanced coding and programming function
11. An extended solutio to support TPMS service
12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
13. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
14. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
15. Build-in repair information and training video modules help to track and fix issue fast.
16. Support some car makes coverage till 2021, incl. BMW, Benz, VW, Audi, GM, Ford, Chrysler, Toyota, Nissan, Honda, Land rover etc

32 Service Functions:

Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change



Accurate ADAS Calibration functions

Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting. (NOTE: Need to be purchased separately)

Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols.
It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software. As J2534 Pass Thru Tool, support remote connection with OEM software to complete remote diagnostics, support OEM software of multiple brands


Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
Support the latest diagnosis protocol of CAN/DOIP / CAN FD
Support 2.4G/5G dual band
Support online upgrade

Smartlink remote diagnosis introduction

SmartLink Remote Diagnostics is a brand new remote diagnostic technology that better links remote assistance demanders with professional technicians through the bridge role of SmartLink remote diagnostic service open platform. Professional technicians can carry out remote diagnostic operations on PCs (with J2534 driver and OEM software installed) to assist in the completion of remote diagnostics after users use SmartLink C connector as a J2534 Pass Thru device and connect it to the Ethernet.


Add-on Features:
Support oscillograph, sensor, battery tester, endoscope, Wi-Fi printer, TSGUN, Immobilizer,etc.

Software Coverage:

Passenger vehicles:

1. Australian:  AUST Holden, AUST Ford

2. Asian: Toyota Lexus, Honda/Acura, Mazda, Subaru, Nissan Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

3. European: Audi, Mercedes Maybach, BMW MINI Rolls Royce, VW Bentley Bugatti, Opel Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault Dacia, Fiat Romeo Abarth Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar

4. USA: USA Ford/Lincoln, GM, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Jeep

5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.



Heavy Duty Vehicles (Optional, can be purchased in 'Mall'):

Software Coverage:

• Nissan (Diesel)
• Mitsubishi (Diesel)
• USA Ford Diesel, Kenworth
• Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
• Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
• Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
• WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
• Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
• Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
• Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
• HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
• IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
• Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

X-PROG3 Immobilizer Key Programmer

Supported Brands

VW, Audi, Skoda, SEAT, BMW, Mercedes-Benz, Toyota… (updates to be continue)


X-PROG3 Features:

1. Compatible with X-431 series diagnostic scanners, X-PROG 3 enables reading/writing EEPROM, on-board MCU and BMW CAS4+/FEM chips, Mercedes-Benz infrared keys, generating special keys, reading BMW engine INS code.

2. Supported brands: VW, AUDI, SKODA, SEAT, BMW, MERCEDES-BENZ, TOYOTA, etc. More models continue to be updated.

3. Supported systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.

4. Compatible with: X-431 PRO GT, X-431 PRO V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII

5. Reads & writes most Engine/Gearbox ECUs without disassembling the shell


Launch X431 XPROG3 Core Functions

1. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.

2. Supports common ECU/MCU/EEPROM major manufacturers, with over 1200 product models, and constantly updating.

3. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC).

4. Supports ECU replacement for the fourth-generation of VW/AUDI engine;

5. Supports ECU replacement for the fifth-generation of VW/AUDI Bosch and Siemens engines.

6. Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.

7. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.

8. Supports the BMW CAS4/CAS4+ module replacement.

9. Supports the ECU cloning and replacement for BMW Siemens engines.

10. Erase the password for Mercedes-Benz engine and gearbox within 3S.

11. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.

Supported Chip Brands:
It supports common mainstream ECU MCU manufacturers, with more than 1,000 product models, and they are continuously being updated.

Supported EEPROM Brands:
It supports common mainstream EEPROM manufacturers, with nearly 1,000 product models, and they are continuously being updated.



Specification



	X-431 PAD VII	Smartlink
Operation System	Andorid 9.0	N/A
CPU	2.0GHz Octa-core	N/A
Display	13.3' touch screen 1920*1080	3.5' touch screen  320*480
Memory	8GB	256M
Storage	256GB	8GB
Camera	Rear 13MP, Front 8MP	N/A
WiFi	Dual Band 2.4 & 5GHz	Dual Band 2.4 & 5GHz
Diagnostic Communication	WiFi	WiFi & BT & USB
Working Temperature	0℃~50℃	0℃~50℃
Dimension	353*236*71 mm	204*110*45 mm



Launch X431 Pad III vs. X431 Pad V vs. X431 PAD VII




Package List:

1x X-431 PAD VII main unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cabel
1x Password envelope
1x Non-16pin connectors set
1set x Launch X-PROG 3
