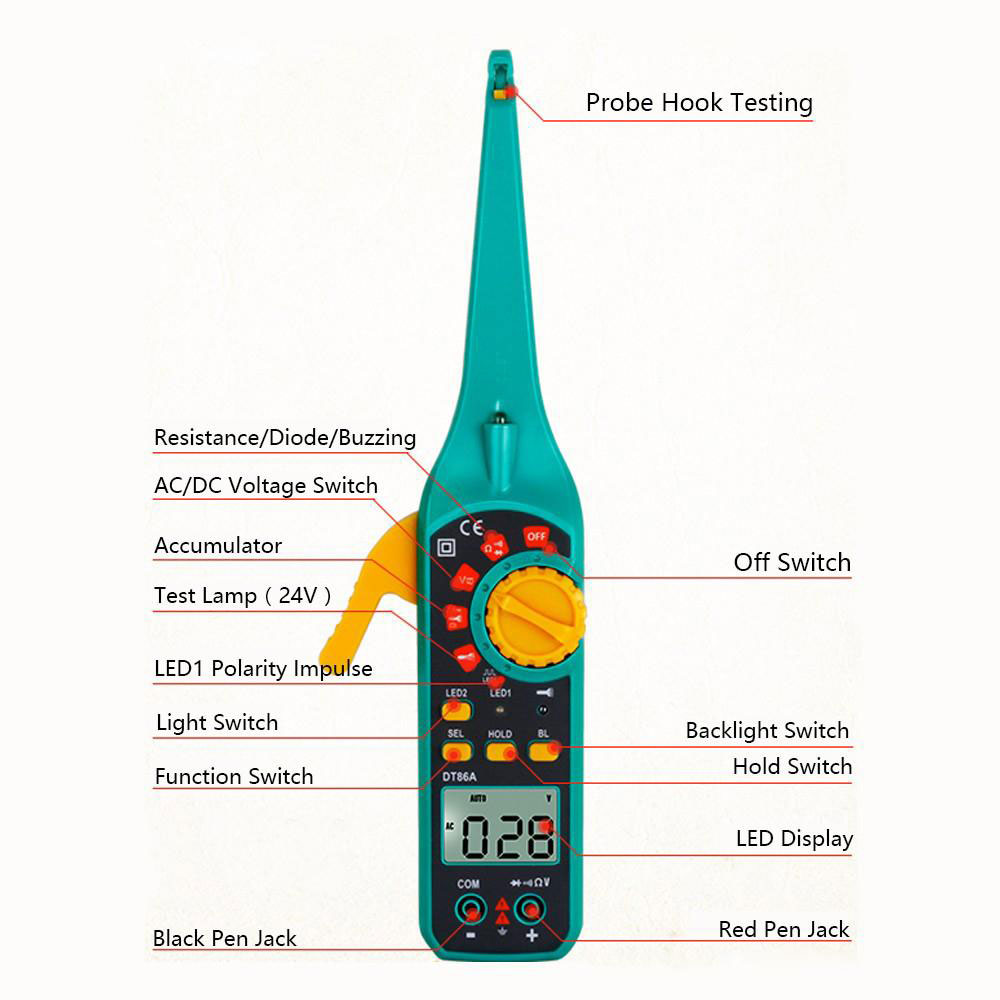

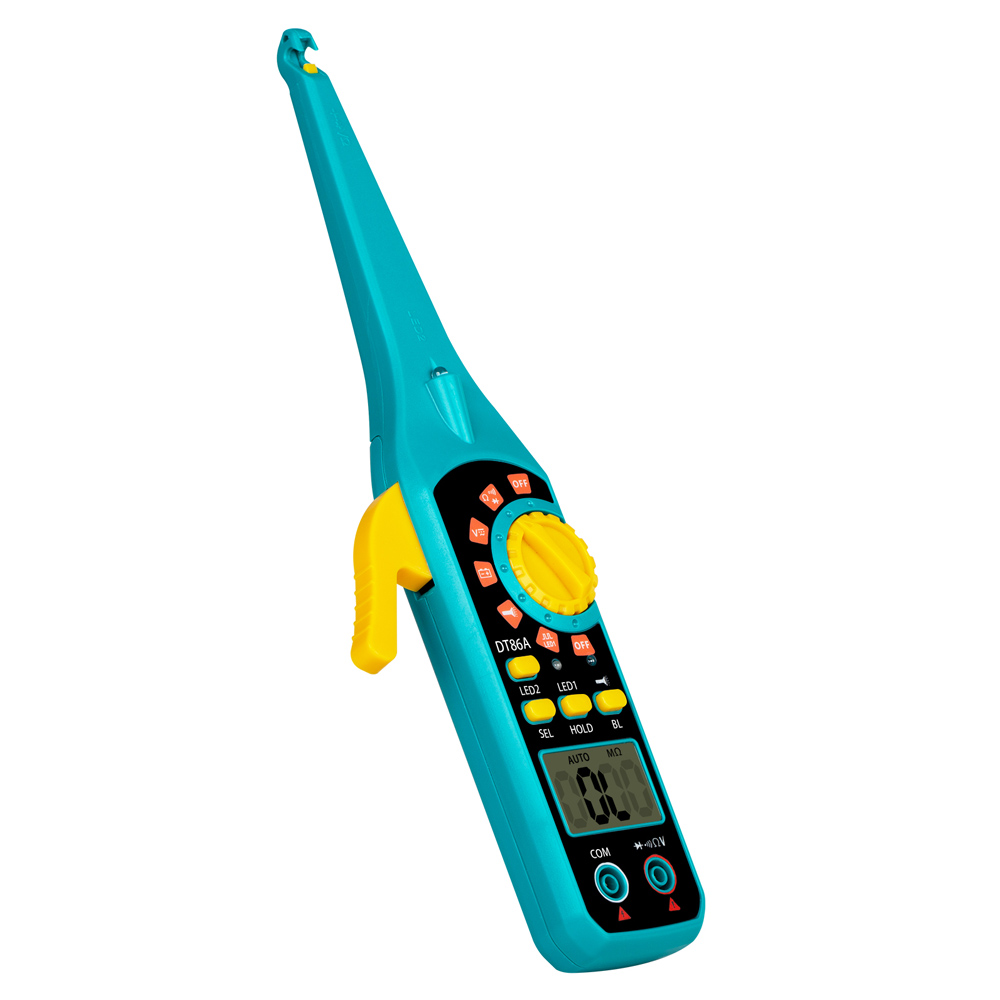

OBDEMOTO DT86A Digital Power Electric Multi-function Auto Circuit Tester Automotive Electrical Multimeter

Multi-function four-in-one tester: Multimeter, Test Lamp, Illumination Lamp and Probe It can accurately detect automotive circuit troubleshooting. The multiple gear set may be suitable for detecting various faults. Suitable for auto repair shop, 4S shop, DIY enthusiasts.

Highlights

• Use the modern detection technology , electronic technology, to test car line without disassemble the detection.
• Unique structure design, easy to operate at small space.

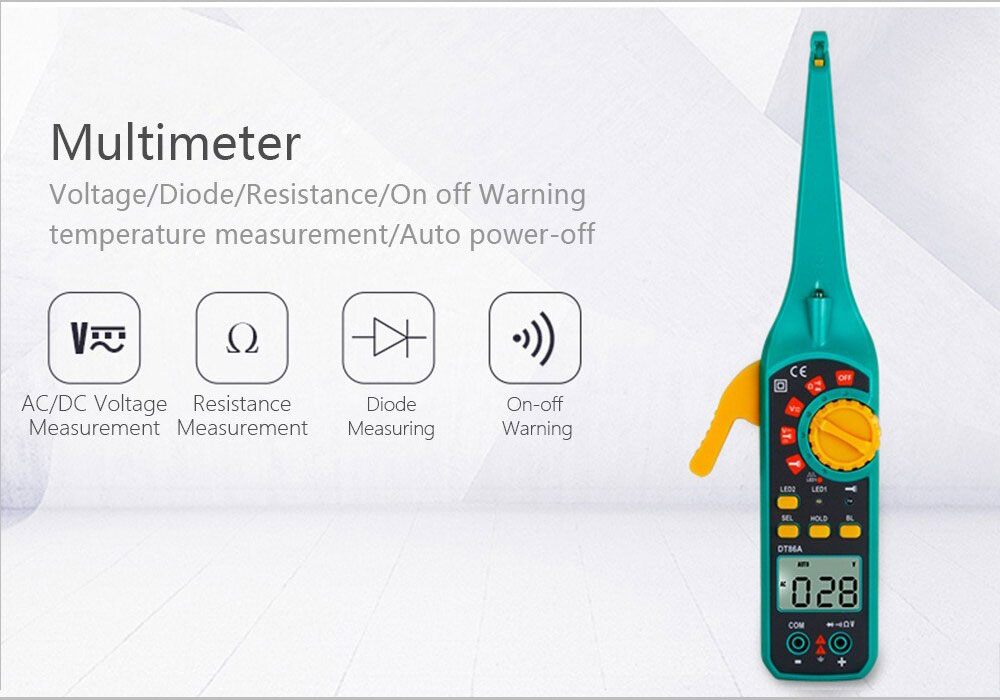

• With the function of multimeter (voltage, resistance, diode, buzzer, etc.)

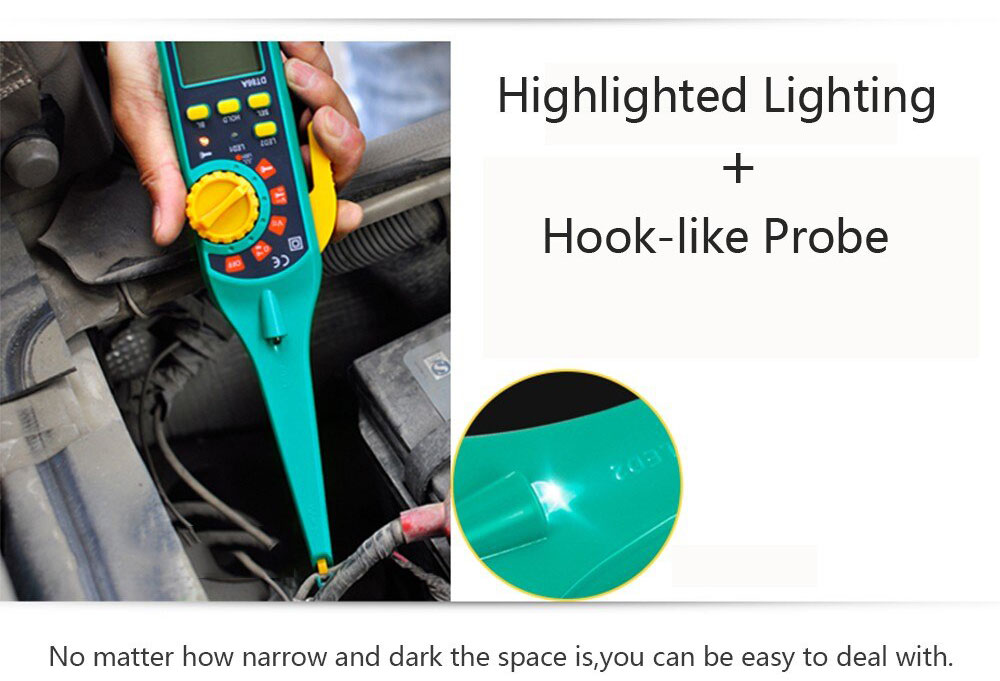

• The front with unique path finding probe hook , which can accurately measure the internal problem , voltage and signal from the surface.
• Test the function of pulse signal.
• High brightness lighting.
• Designed to detect the poor contact and aging lines.
• Car battery voltage detection.
• AC/DC 12V/24V Voltage Signal Tester
• With LCD Display and Resistor Diode


OBDEMOTO Features
1. Max. display: 1999
2. Switching rate: 3 times/second
3. Range mode: Active combination of full-automatic or full-manual range
4. Polar indication: Automatic
5.Temperature measurement: Centigrade  and Fahrenheit
6. Working voltage: 2.4V-3.6V
7. Low-voltage indication: about 2.4V
8. Buzzer frequency: About 2.7 kHz
9. There is unit symbol and backlight display.
10. There is automatic power-off function (the function can be cancelled during use)
11. Test lamp: DC 0V-30V
12. LEC test lamp: DC 0V-30V
13. Aging wire test gear: DC 0V-30V
14. Lighting lamp: white light, power supply 3V,packaging Φ5mm, brightness 18000-20000
15. Feeler: All tests directly
16. DC voltage: 199.9mV, 1.999V, 19.99V, 199.9V, 1000V
17. AC voltage: 199.9mV, 1.999V, 19.99V, 199.9V, 750V
18. Resistance: 199.9Ω, 1.999KΩ, 19.99KΩ, 199.99KΩ'  1.999MΩ,19.99MΩ

Attention:

Test lamp voltage :12-24V applicable , for both ac and dc .
Led lamp can only be used for DC , AC does not apply.
Test lamp and LED lamp, and resistance can not be used for 220V AC test, otherwise it will burn down , only in the voltage condition used for 220V AC test.

Parameter:

How to use DT86A 4 in 1 Tester?

Package includes:
1pc x DT86A Auto Circuit Tester
