2023 Autel MaxiIM IM608 II (IM608 PRO II) Automotive All-In-One Key Programming Tool

What is Autel MaxiIM IM608 II ?

Autel MaxiIM IM608 II is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.



Highlights:

1. Autel MaxiIM IM608 II = IM608 PRO II
2. No IP Limitation: You Can Use it All Around the World without Limitation
3. One Year Free Update Online (After One Year, IM608 II Software Subscription Cost $795/Year)
4. Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration
5. Smart Mode and Expert Mode Solution In One Tool to Easy Operation with Ambient Light Sensor – detects ambient brightness.
6. Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.)
7. Works for 85% Cars In The Wordwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop
8. Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly


Difference between IM608 II and IM608:

1. IM608/Pro II has improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.
2. Supports CAN protocol read and write without a password
3. Add bulit-in DoIP and CAN FD protocol (don't need converter)
4. Support remote expert function

Main Features of Autel IM608 II:

IMMO & Key Programming Bundle
MaxiIM IM608 II 10.1-inch Android Touchscreen Tablet
Program IMMO & Keys for U.S., Asian and European Vehicles
XP400Pro Key and Chip Programmer
JVCI Wireless J2534 Pass Thru Programming Device
Bi-directional Control/ Active Tests




AUTEL IM608 II Supported Functions :

1. IMMO Functions

Auto Detect Make/Model/Year/System
Read PIN (All Key Lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaption
BMW CAS4 Key Learning and Adaption
Mercedes Key Learning
2015-2018 Land Rover & Jaguar write key via dump
Volvo Smart Key Learning/knob-style smart key
Advanced Programming Functions
EEPROM Read/Write
MCU Read/Write
Key Programming
Mercedes Key Read/Write
Remote Frequency Detect
OE-Level Diagnoses

2.All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

Oil Service Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
Active Test
ECU Coding
VW/Audi Component Protection
Complete Service Functions



XP400 Pro adds support for following Chips:

EEPROM-->AMD-->AM29FXXX series chip
EEPROM--> FUJITSU-->MB29FXXX series chip
EEPROM-->ST-->M29FXXX series chip
Engine control module-->SIMTEC76(AM29F800BB) write
IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->BMW-->EWS3 module read/write function
REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase

XP400 Pro adds support for the following adapter board:

APB113 PCF79XX adapter board
APB114 EWS3 adapter board
APB115 NEC Adapter board
APB118 NEC ELV adapter board
APB119 TB28FXXX adapter board
APB120 TMS370 adapter board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adapter board 1
APB123 AM29FXXX adapter board 2
APB126 M35080/D80 adapter board
APB127 MC68HC0(7)05BXX adapter board
APB128 MC68HC05X32 adapter board

Advanced Key Programming Functions:

Exclusive Smart Mode to guide Key Programming
Auto Read IMMO Data via OBD
One-tap Key Programming via OBD & Easy-to-use Remote Programming
With the newly upgraded key programmer XP400 Pro
Extensive Vehicle & Functionality Coverage
Support Diagnostics & IMMO Programming for 10,000+ Models;
Support Models Up to 2020;
All System Diagnostics and Advanced Maintenance Services;
Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
Jaguar LandRover -- Add Key / All Key Lost up to 2019
Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump




Product Comparison Between Autel IM608 II and IM608 Pro


Product Model	/	IM608 II	IM608 Pro
Accessories	VCI	JVCI+	JVCI
	Programmer	XP400Pro	XP400Pro
Hardware Configuration	CPU	Qualcomm SDM660 Octa-core Processor 4x 2.2 GHz(A73) 4x 1.8 GHz(A53)	Samsung Exynos T5260 6-Core Processor: 4x 1.3 GHz(A7) 2x 1.7 GHz(A15)
	OS	Android 10.0	Android™ 4.4.2, KitKat
	Memory	4 GBRAM+128GB FLASH	2 GBRAM+64GB FLASH
	Display	10.1 inches	10.1 inches
	Resolution	1920*1200	1920*1200
	Battery	3.8V 15000 mAh	3.8V 15000 mAh
	BT	BT V5.0 + BR/EDR	BT V2.1 + EDR
	DoIP	Yes	Adapter required
	CANFD	Yes	Adapter required
diagnostic function	Basic functions	Full Function	Full Function
	Coding	Yes	Yes
	Programming	Mercedes-Benz BMW system	Mercedes-Benz BMW system
IMMO Functions	Matching device	Full Function	Full Function
	Programmer	EEPROM reading and writing, MCU reading and writing	EEPROM reading and writing, MCU reading and writing
	Key Tool Function	Yes	Yes
Remote expert	/	Yes	No

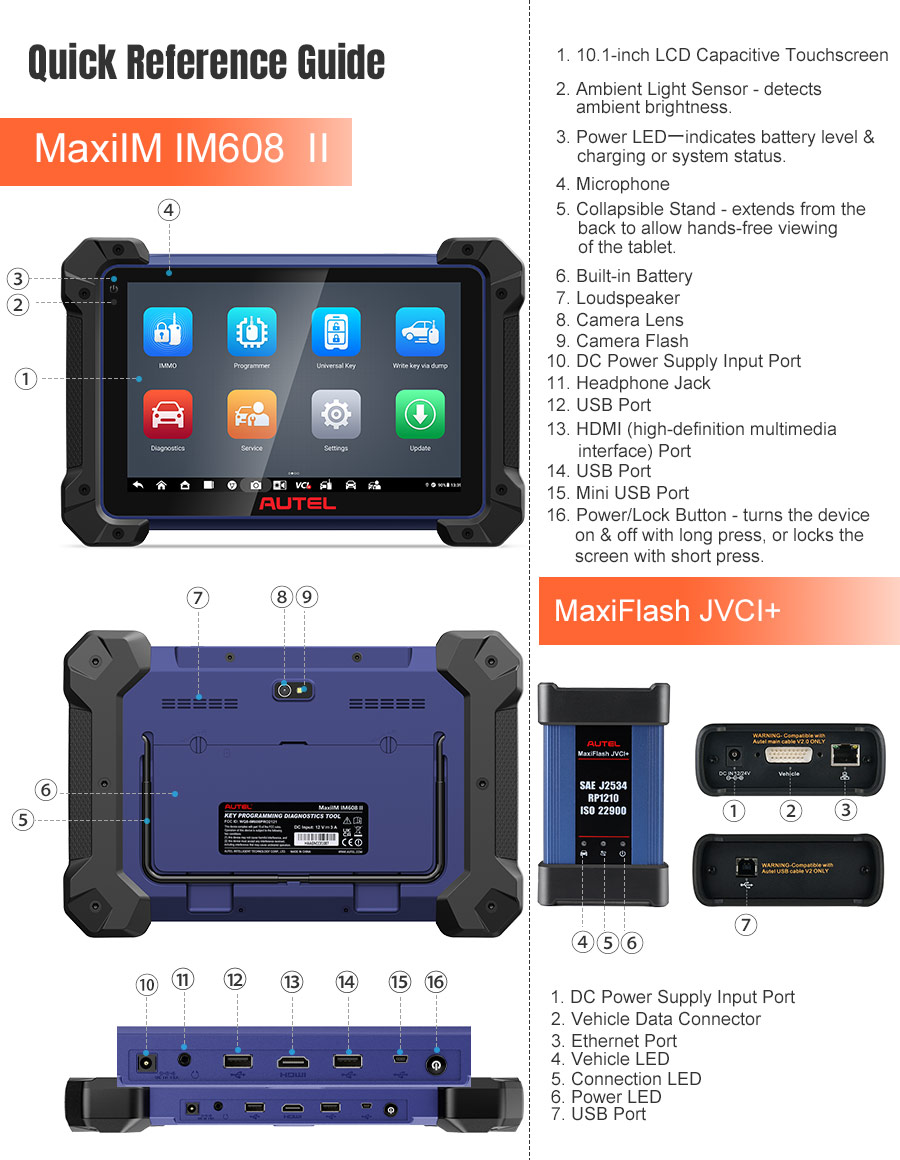

Autel IM608 II Quick Reference Guide:



Package List:

1pc x IM608 II Tablet
1pc x XP400 Pro Key Programmer
1pc x JVCI+ ECU Reprogrammer
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Connect Cable
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x USB to Ethernet Adapter
