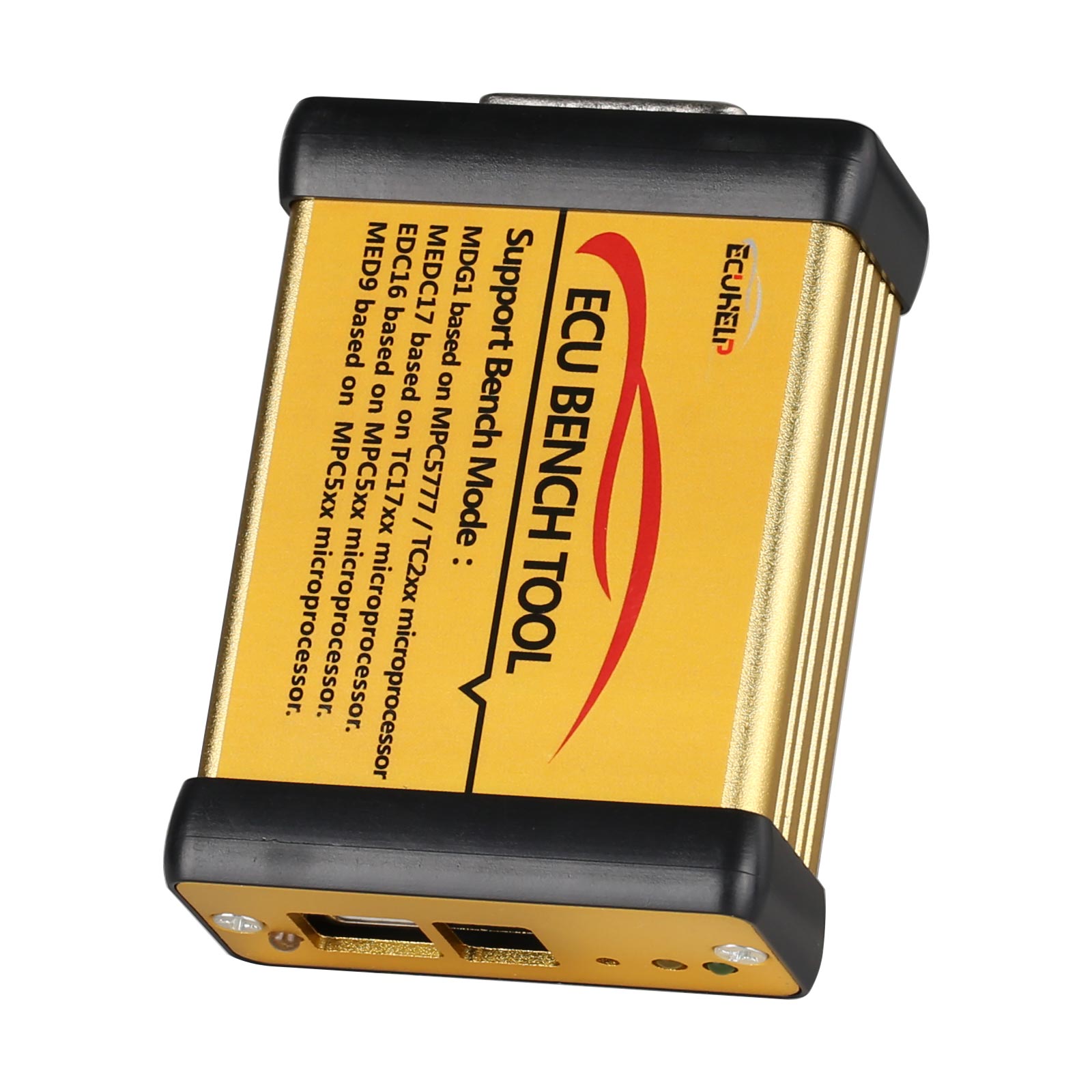

ECUHelp ECU Bench Tool Full Version with License Supports MD1 MG1 EDC16 MED9 No Need to Open ECU



ECUHelp ECU Bench Tool Highlights:

1. Master Version. Flash checksums are included!
2. Support Bench Operation
3. AMT Bench Service Tool and ECUHelp Software are Included:
AMT Bench Service Tool: Read and Write ECU bench or boot mode.
ECUHelp: Check wiring diagram, download VR file and tuning file.
AMT Offline Software Free Download
ECUHelp V3.0 Software Free Download, V3.0 can connect the network.
4. It is the first tool which support Bosch MD1 MG1 (other tools do not support this function now)
5. Support old EDC16, MED9 no need open ECU, no risk (other tool need open ECU, there is risk)

Description:

ECU Bench Tool is a universal bench service tool. Its software automatically can detect the ecu and memory types, which helps users to simplify the ECU writing and reading process. Since it gives the users an access to the available memories,  you can individually read/write the desired data via the software.

ECU Bench Tool allows us to read/write Bosch EDC ECU's using the TriCore processor on bench without actually opening the lid - which also includes access to the full flash areas (IROM/XROM and EEPROM). This will make life a lot easier for engine controllers for which OBD programming protocols are not yet available, it will speed up the task of working with such vehicles no end.



ECU Bench Tool Currently Supports (PCM Flash does not support these):

Bench mode: Bosch MEDC17 based on TriCore microprocessor.
Bench mode: Bosch MD1 MG1 based on Motorola MPC5777 / Aurix TC2xx microprocessor
Bench mode: Bosch EDC16& based on Motorola MPC5xx microprocessor.
Bench mode: VAG/VOLVO MED9 based on Motorola MPC5xx microprocessor (Other brands using ME(D)9 are currently not supported, will be added in a future releases)
This tool is available as a master only. Flash checksums are included!
Allows network connection. Update online.
Bench mode mode operation



ECU Bench Tool Software:

AMT Bench Service Tool V1.01.05- Read and Write ECU bench or boot mode
ECUHelp 2.0- check wiring diagram, download VR file and tuning file



ECUHelp2.0 Function:

Wiring picture: to search and download wiring diagram
Virtual file: download virtual files (Not Free)
Tuning file: download ecu tuning file (Not Free)
ECU Service: DPF EGR REMOVE, DTC OFF  (Not Free)




ECU Bench Tool Bench Connection:



ECU Bench Tools vs PCMtuner:


Item	PCMtuner	ECU Bench Tool
Price	$449	$299
Dongle	with Smart Dongle	without Dongle
Software	1. PCMtuner 2. PCMflash	1. AMT Bench Service Tool(AMT BST) 2. ECUHelp
Version	Master	Master
Datacenter	VZ Performace	ECUHelp 2.0
Network Connection	Yes	Yes
Update & Subscription	1. PCMtuner update online, no subscription, no annual fee 2. PCMflash update by dongle	Both ATM BST and ECUHelp Update Online
Checksum	Yes	Yes
VR read & Write	Yes, Online	Yes, Online
EDC16	Support, Buy Fetrotech Tool	Support, no need open ECU
EDC17 MEDC17	Yes, good for this	Yes, only a few models
MG1 MD1	Support, Buy Fetrotech Tool	Yes, the license freely activated already
VAG Volvo ME9	No	Yes, no need open ECU
Operation Mode	OBD, Bench, Boot	Bench
Offline/Online	Work offline, VR need online	Work offline, VR need online
Activation	Yes, provide SN and register email to activate	Yes, provide SN to activate
ECU List	PCMtuner ECU List	ECU Bench Tool ECU List
ECU Tuning Service	Download VR files for free Pay for tuning file	Pay for VR files Pay for tuning file

Q: How to Confirm Whether the ECU Bench Tool Support Your Car?

A: 1. If you have Bosch number only, but do not know the specific ECU model of your car, you can input the Bosch number here to confirm the ECU model
After you confirmed the ECU model, you can check the ECU Bench Tool support list, if the ECU model is in the support list, that means it support your car

2. You have both ECU model and Bosch number, while our support list only list ECU model, do not mark hardware bosch number, you want to confirm doubly, if you can find out the Bosch No. on this link. and ECU model in ECU Bench tool support list, that means it surely support this car

ECUHelp 3.0 Software display：







ECU Bench Tool Support List:

ASTONMARTIN_ME17.8.31
ASTONMARTIN_MED17.8.3
BMW_EDC16C1
BMW_EDC16C31
BMW_EDC16C35
BMW_EDC17C06
BMW_EDC17C41
BMW_EDC17C50
BMW_EDCc17C56
BMW_EDC17C76
BMW_EDC17CP02
BMW_EDC17CP09
BMW_EDC17CP45
BMW_EDC17CP49
BMW_ME17.2.4
BMW_ME17.2
BMW_MEVD17.2.3
BMW_MEVD17.2.4
BMW_MEVD17.2.5
BMW_MEVD17.2.6
BMW_MEVD17.2.8
BMW_MEVD17.2.9
BMW_EVD17.2.G
BMW_EVD17.2.H
BMW_EVD17.2.P
BMW_SPC5777_MD1CP002
BMW_SPC5777_MD1CP032
BMW_SPC5777_MD1CS001
BMW_SPC5777_MG1CS003
BMW_SPC5777_MG1CS024
BMW_SPC5777_MG1CS201
BMW_TC298_MD1CS001
BMW_TC298_MD1CS024
BMW_TC298_MD1CS201
DUCATI_ME17.9.21
EDC17CV54
FAL_EDC16C8
FAL_EDC16C39
FAL_EDC17C49
FAL_EDC17C69
FAL_EDC17C79
FAL_EDC17CP27

FAL_EDC17CP52
FAL_ME17.3
FAL_MED17.3.1
FAL_MED17.3.3
FAL_MED17.3
FERRARI_MED17.3.5
FORD_EDC17C10
FORD_EDC17C70
FODE_EDC17CP05
FORD_EDC17CP42
FORD_EDC17CP65
FORD_MED17.0.1
FORD_MED17.0.7
FORD_MED17.0
FORD_MED17.2
FORD_TC298_MD1CS005
GMC_EDC17CP18
HONDA_EDC17C58
HONDA_EDC17CP16 HONDA_EDC17CP50
HONDA_MD17.9.3
HYUNDAI_EDC17C53
HYUNDAI_ME17.9.11
HYUNDAI_ME17.9.21
HYUNDAI_MED17.9.30
HYUNDAI_MEDG17.9.8
HYUNDAI_MEG17.9.21
HYUNDAI_TC298_MD1C012 HYUNDI_EDC17C08
ISUZU_EDC17C83
JAGUAR_MED17.8.31
JAGUAR_MED17.9.7
JAGUAR_MEDC17.9
JMC_EDC17C55
KIA_EDC17CP62
KIA_MEG17.9.8
KIA_MEG17.9.12
KlA_TC298_MD1CS012
LANDROVER_EDC17C11
LANDROVER_EDC17CP55
MASERATI_MED17.3.4
MCLAREN_ME17.8.3
MCLAREN_ME17.8.32
MERCEDES_EDC16C2
MERCEDES_EDC16C32
MERCEDES_EDC16CP31

MERCEDES_EDC17C43
MERCEDES_EDC17C57
 MERCEDES_EDC17C66
MERCEDES_EDC17CP01
MERCEDES_EDC17CP10
MERCEDES_EDC17CP46
MERCEDES_EDC17CP57
MERCEDES_EDC17CP60
MERCEDES_ME17.7
MERCEDES_MD17.7.1
MERCEDES_MED17.7.2
MERCEDES_MED17.7.3
MERCEDES_MED17.7.5
MERCEDES_MED17.7.7
MERCEDES_MED17.7.8
MERCEDES_SPC5777_MD1CP001
MERCEDES_SPC5777_MG1CP001
MERCEDES_SPC5777_MG1CP002
MINI_MED17.2
MINI_MEV17.2.2
OPEL_EDC16C9
OPEL_EDC16C39
OPEL_EDC17C18
OPEL_EDC17C19
OPEL_EDC17C59
OPEL_EDC17CP47
OPEL_ME17.9.5
OPEL_TC298_MD1CS003
OPEL-TC298_MG1CS042
POELARlS_M17.9.74
PORSCHENMED17.1.11
PORSCHE_SPC5777_MG1CP007 PORSCHE_TC298_MG1C007
PORSCHE_TC298_MG1CS047 PSA_EDC16C34
PSA_EDC17C10
PSA_EDC17C60
PSA_EDC17CP52
PSA_ME17.9.7
PSA_ME17.9.52
PSA_ME17.9.71
PSA_MED17.4.4
PSA_MED17.4
PSA_MEDV17.44
PSA_MEV17.4
PSA_TC298_MD1CS003

PSA_TC298_MG1CS042
RENAULT_EDC16C36
RENAULT_EDC16C41
RENAULT_EDC16CP33
RENAULT_EDC17C11
RENAULT_EDC17C42
RENAULT_EDC17C45
RENAULT_EDC17C84
RENAULT_EDC17CP11
RENAULT_EDC17CP19
RENAULT_EDC17CP42
RENAULT_EDC17CP58
RENAULT_ME17.9.20
RENAULT_ME17.9.23
SKODA_ME17.5.26
SUZUKI_ME17.9.5
SUZUKI_ME17.9.6
SUZUKI_ME17.9.61
SUZUKI_ME17.9.64
SUZUKI_MED17.9.63
TOYOTA_EDC17C47
TOYOTA_EDC17C73
TOYOTA_EDC17CP07
TOYOTA_EDC17CP37
VAG_EDC16CP34
VAG_EDC16U1
VAG_EDC16U31
VAG_EDC16U34
VAG_EDC17C46
VAG_EDC17C54
VAG_EDC17C64
VAG_EDC17C74
VAG_EDC17CP04
VAG_EDC17CP14
VAG_EDC17CP20
VAG_EDC17CP24
VAG_EDC17CP44
VAG_EDC17PC54
VAG_EDC17CP74
VAG_EDC17U01
VAG_EDC17U05
VAG_ME17.1.1
VAG_ME17.5.6
VAG_ME17.5.20

VAG_ME17.5.22
VAG_ME17.5.24
VAG_M17.5
VAG_MED9.1.2
VAG_MED9.1
VAG_MED9.5.10
VAG_MED17.1.1
VAG_MED17.1.6
VAG_MED17.1.10
VAG_MED17.1.21
VAG_MED17.1.27
VAG_MED17.1.61
VAG_MED17.1.62
VAG_MED17.1
VAG_MED17.5.1
VAG_MED17.5.2
VAG_MED17.5.5
VAG_MED17.5.20
VAG_MED17.5.21
VAG_MED17.5.25
VAG_MED17.5
VAG_SPC5777_MD1CP004
VAG_SPC5777_MD1CP014
VAG_SPC5777_MG1CS001
VAG_SPC5777_MG1CS002
VAG_SPC5777_MG1CS008
VAG_SPC5777_MG1CS011
VAG_SPC5777_MG1CS111
VAG_SPC5777_TC298_MD1CP004
VAG_SPC5777_TC298_MD1CP014
VAG_TC298_MD1CS004
VAG_TC298_SPC5777_MG1CS008
VOLVO_EDC16C31
VOLVO_EDC17CP22
VOLVO_EDC17CP48
VOLVO_EDC17CP68
VOLVO_ME9.0
VOLVO_MED17.2
RENAULT_NISSAN_TC298_MD1CS006

ECU Bench Tool Customer Feedback:

EDC17C46 VAG OK
EDC16C34 PSA OK
EDC16CP34 VAG OK
Vw passat 2018  Edc17c74  Adblue dpf egr off, Read ok  and Write ok
edc17c60 BENCH  psa OK
Edc16U1 ok
Edc17c50 ok
Mercedes EDC17CP57 read write ok
edc17c74 vag ok
edc17c64  vag dpf egr off  ok read write ok
EDC16C1 ok
EDC16C35 ok
EDC17c84 nissan all ok
Edc17c70 ford all ok
Edc17c07 toyuota all ok
Md1 nissan all ok
VAG EDC17CP20 ok
MD1CP001 SPC5777 ok
EDC17C50 BMW all works ok.
Read med17.5.21 in 1m 26s, write a few seconds
edc17cp64 read write ok Mercedes EDC17CP57 read write ok
edc17cp20 dieselgate audi a4 read write no problem

Package List:

1pc x BENCH Cable
1pc x  Power Adapter
1pc x  Master Interface
1pc x  USB Cable
