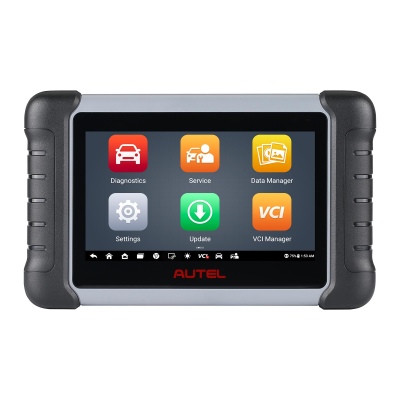

Autel MaxiCOM MK808BT MK808Z-BT OBD2 Diagnostic Scan Tool ABS SRS EPB DPF BMS SAS TPMS IMMO MK808 Code Reader



Featuring the powerful Cortex-A9 processor, and a 7.0 inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808BT is your ideal auto diagnostic and service tool. MK808Z-BT provides you with superior special functions, including Oil Reset, EPB(Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).



Product Highlights:

1. Globel Version, No Blocking Problem
2. Upgraded Version of Autel MK808BT, Autel MaxiCOM MK808BT = MK808Z-BT = MK808BT PRO
3. With One Year Free Update Online. After One Year, MK808BT/ MK808BT PRO/ MK808Z-BT Subscription Cost 130USD/ Year
4. Adds 7 Hot Special Functions: Transport Mode, HV Battery, ACC, A/C, Rain/Light Sensor, EGR, and FRM Reset.
5. Adds Basic Functions and Special Functions for Models with 4 Types of Chassis Including G22 and G82.
6. Multi-Language Supported: English, Polish, Korea, German, Italian, Russian, Dutch, Portuguese, Spanish, Swedish, French
7. Compatible with Autel MV108/ MV105 Inspection Camera: This is a very pratical and useful functions, which allows you to have a futher wear situation check on your car engine/transmission,etc internal structure, to avoid further damage or avoid potential dangerous driving.
8. Battery Test work with MaxiBAS BT506:
* MK808BT PRO can work with Autel BT506 battery tester to perform professional cranking/ charging system test and In-Vehicle & Out-of Vehicle Battery Test, and with over 95% accuracy result with advanced adaptive condutive technology, which is far more accurate than the 50% of market avreage accuracy.
* Autel automotive battery test tool BT506 can test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries, and compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA standards.

Product Features:

【Autel Most Worth Buying Wireless Diagnostic Tool】Upgraded from MK808/ MX808, Autel MK808BT is the most powerful wireless diagnostic tool for it's price! Equipped with multi-functions of wireless BT technology, Bi-Directional Control(Active Test), 28+ maintenance services, all systems diagnostic, Auto Scan & Auto VIN, 10,000+ vehicle coverage, Cloud-based report management, Compatible with Autel BT506 battery tester/ MV108, 1-year free update, multilingual etc. Designed for workshops & DIYers.
【Added Functional Benefits】Autel MaxiCOM MK808BT has been added $300+ valued powerful functions, namely: Bi-Directional Control(Active Test), 28+ Services, battery test(Autel BT506 required), which MK808 wired tool doesn't support, compatible with MV108, "Auto Auth" gateway for 2018 and newer FCA cars(Chrysler/Dodge/Jeep,etc) for US/Canada & Mexico. All these functions are available(V2.62 and above) to download for all MK808BT on 1st, June, 2022. Autel is dedicated to make life easier!

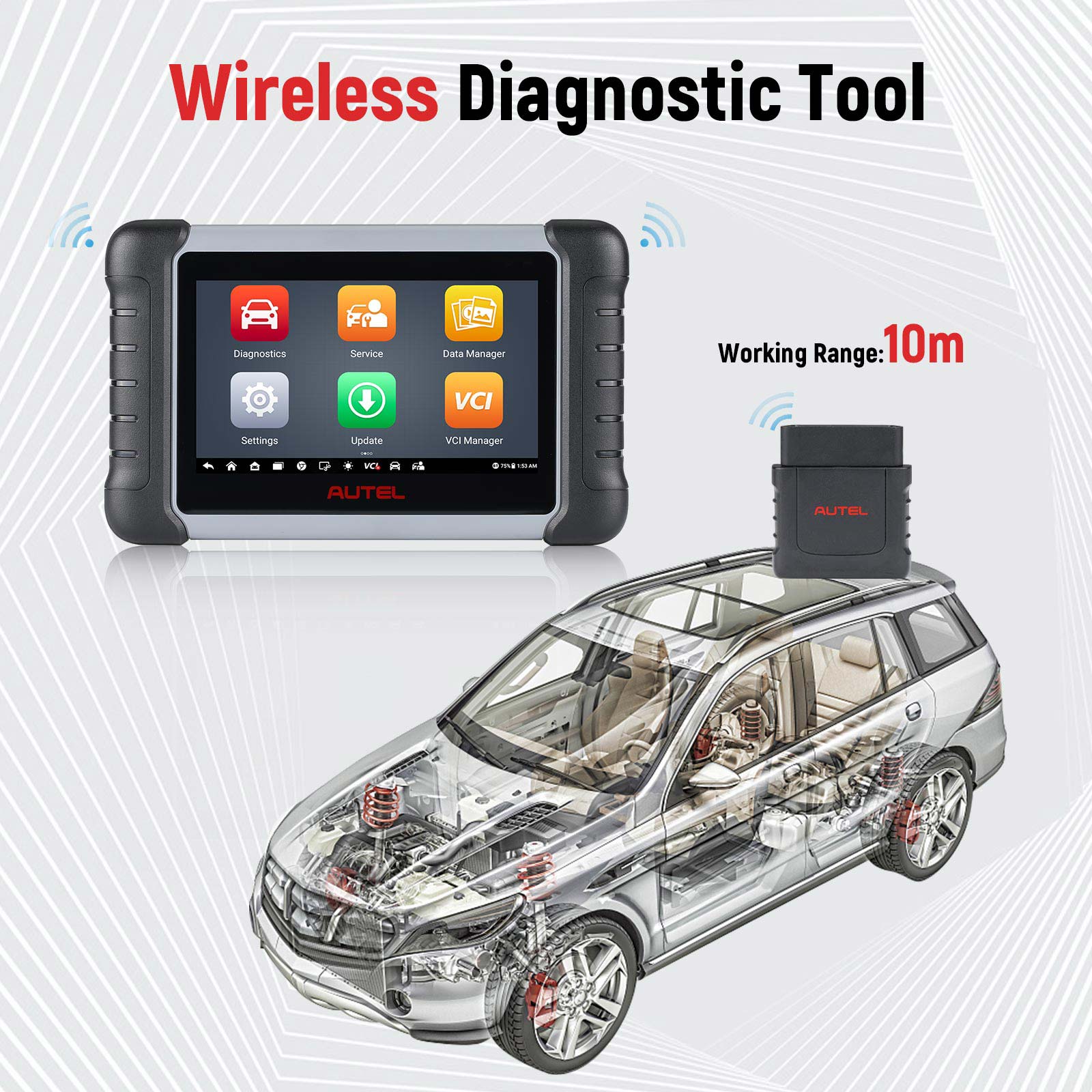

【Equipped VCI Mini, USB Wired+Wireless Diagnostic】Do you want to get out of your narrow driving seat for a car diagnosis? MK808BT CAN DO IT! Compared with the old wired diagnostic tool MK808, MK808BT equipped with wireless BT technology, up to 33ft(10m) working range, enabling wireless diagnostic with more stable and faster data transmission. This way you can check any part of your car while holding the MK808BT or, as users commented, perform a diagnosis while sitting in a comfortable chair.
【28+ Maintenance Services, Everything for you】How much did you spend on maintaining your car? In fact, experience tells us that just a small repair service may cost a lot of money. So Autel MK808BT are actively reducing the unnecessary expense by integrating 28+ services, meeting most of maintenance needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc. Note: Service functions vary by vehicle, please send VIN to us to check compatibility before order.

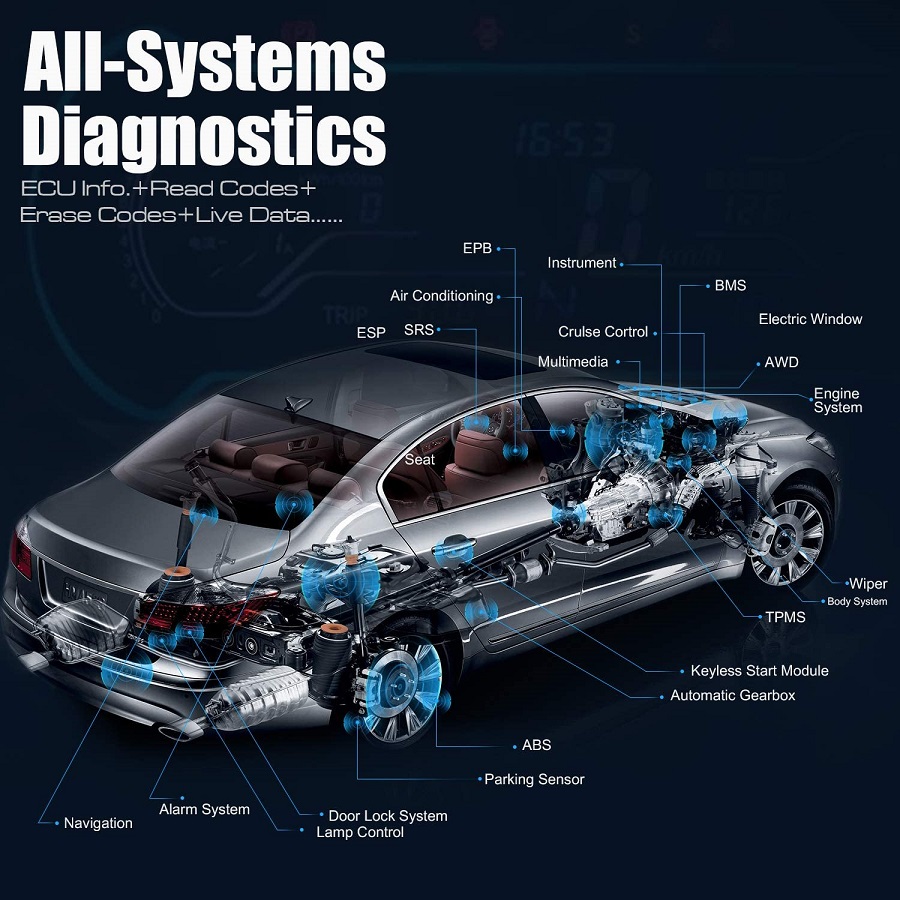

【All Systems Diagnostic, Make Full Check for Cars】Busy for a long time but can't find what's wrong with the car? Are you going to change your car? Take it easy! Autel MK808BT scanner can scan all available car systems and perform OE-level diagnosis by reading/clearing codes, viewing live data of multiple sensors in text, graph & analog, freeze frame data, ECU info & Bidirectional conrol/active test. Just a few simple clicks, you can easily master the car situation. Not Support TPMS.



【Bi-Directional Control/Active Test】What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars. Bidirectional control tool MK808BT can perform real active test that can send commands to the vehicle's ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc., helping you quickly find out bad parts and pinpoint faulty issues. Note: NOT universal, please check compatibility.



【Auto Scan & Auto VIN, Easy to Use】If you are worry about complex operation, MaxiCOM MK808BT can avoid the trouble for you. AutoVIN technology allow MK808BT to identity your vehicle's make, model, and year information with one click. More convenient is AutoScan that can automatically scan all vehicle's ECUs at one touch and find out fault codes. Note: AutoVIN does NOT work on all vehicles, depends on whether the VIN is programmed to car ECU or not. Always support manually input VIN.





Autel MK808BT Function:

1. Support Bluetooth connection
2. Extraordinarily powerful Cortex-A9 processor (1.5 GHz) processor
3. 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
4. Internal reliable 32GB On-board Memory for better performance
5. Unique ergonomic design with rubberized outer protection and a rugged internal housing
6. Android 4.4.2 KitKat Operating System for fast boot-up and multitasking
7. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
8. Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc
9. Data Manager saves customer and vehicle records, scanner data and technician notes for future review
10. Read/clear codes functions
11. Display live data in text, graph & analog for easy data review
12. Auto VIN technology can automatically identify the vehicle’s make, model, and year information
13. Reset Steering Angle Sensor (SAS)
14. Support forced DPF regeneration

Autel MaxiCOM MK808BT  vs Autel MK808/MX808



Autel MK808BT Specifications:

Recommended Use: Indoor
Operating System:  Cortex-A9 processor (1.5 GHz)
Memory:  32GB
Display: 7-inch LCD capacitive touchscreen with 1024 x 600 resolution

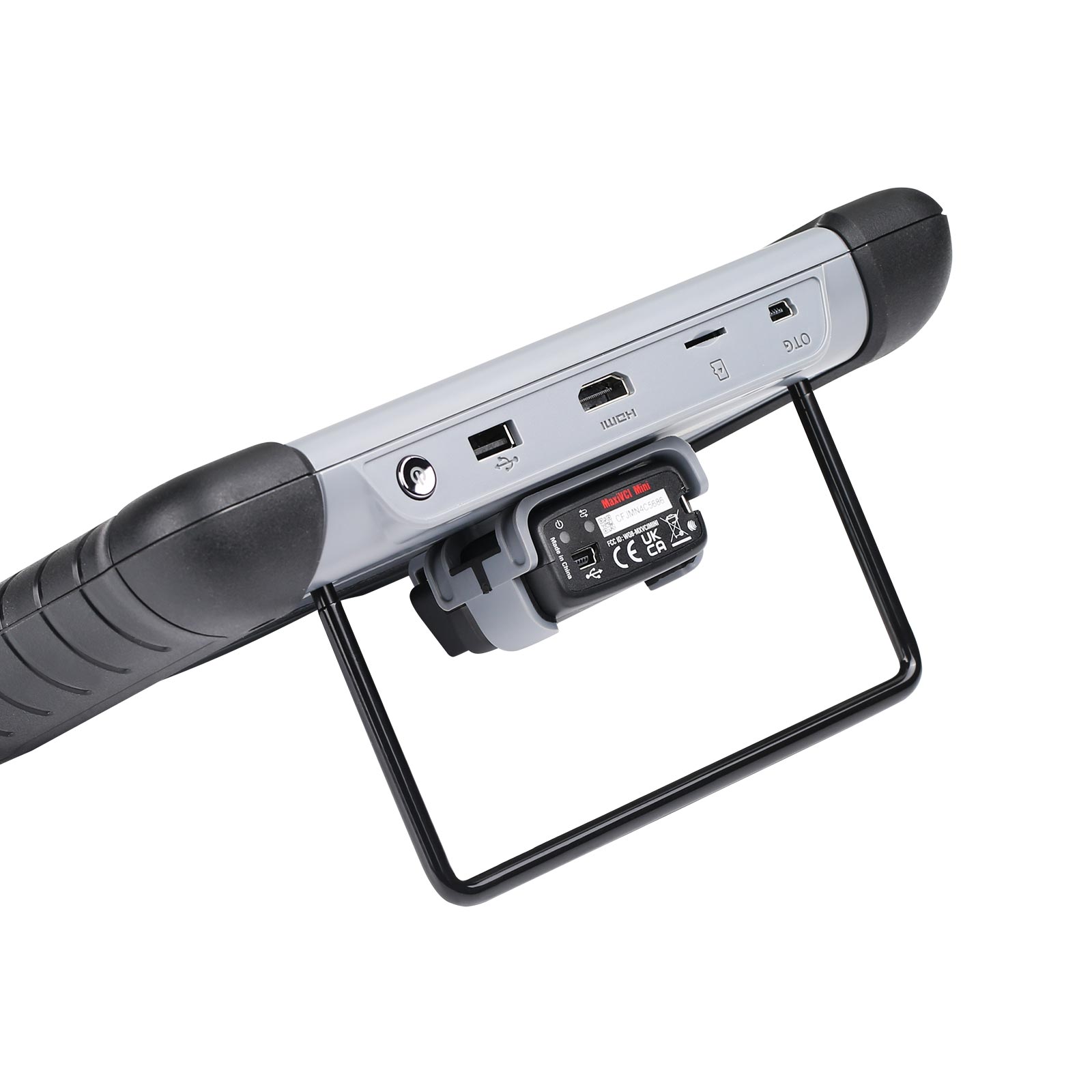

Connectivity: Mini USB 2.0 USB 2.0 Wi-Fi HDMI Type A Micro SD card (supports up to 32GB)
Sensors: Light sensor for brightness auto changing
Audio input/output: Input: N/A Output: buzzer
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life: Around 7 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 600 mA (LCD on with default brightness, Wi-Fi on) @3.7V
Operating Temp.: 0 to 55°C(32 to 131°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Operating Humidity: 5% - 95% non-condensing
Dimensions (W x H x D): 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight: 788 g (2.42 lb.)
Protocols:  ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.

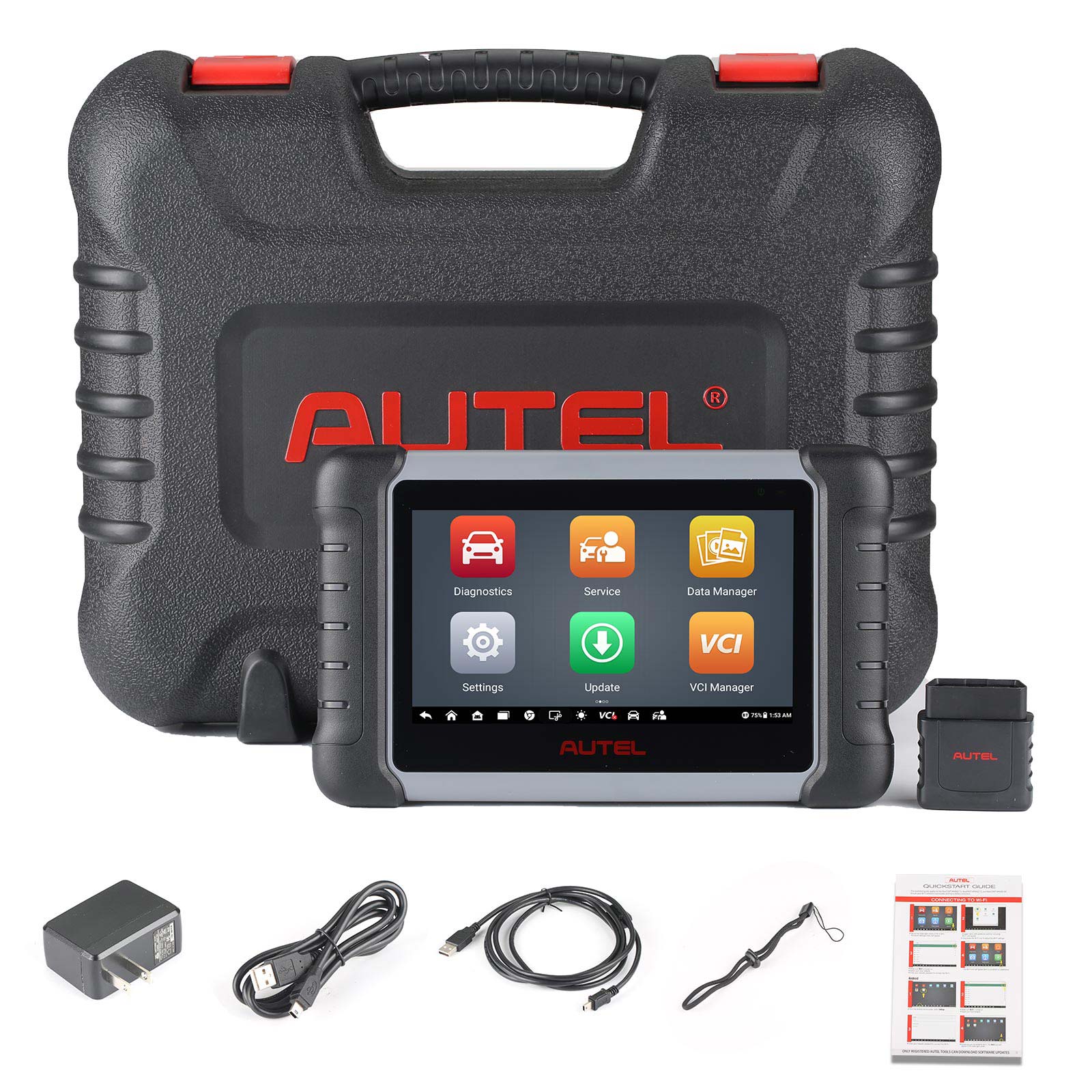

Autel MK808BT Package List:

1x MK808BT Tablet
1x USB External Power Adapter
1x USB Cable(for testing)
1x USB Cable(for charging)
1x MaxiVCI Mini
1x Quick Reference Guide
1x User Manual
