PADFLASH Support ECM & TCM Reading, Writing, Programming Virtual Read Real Read



PADFLASH is a professional tool for automotive workshops and chip tuners. It is designed to diagnose, repair and reprogram engine and transmission control units of cars, trucks, special vehicles, boats, and yachts, bikes, agricultural and many other vehicles.



Product Features:



R&W Fast, Stable, Checksum, VR Read, Real Read, Clone Read, Clone ECM, Friendly UI, Multi-port



Supported ECU Brands:



Bosch, Delphi, Denso, Siemens, Magneti, Hitachi and more...



Product Comparison Among PADFLASH, FOXFLASH and Other Tools


Model	PADFLASH	FOXFLASH	Other Tools
TCU Support	Average	Good(Strong Support on TCU)	Only some tools support
BENCH	Yes	Yes	Only some tools support
Supported Vehicle Types	CAR,TRUCK,TRACKTOR,MARIN,BIKE	CAR,TRUCK,TRACKTOR,MARIN,BIKE	Car or truck, or BIKE, CANT Cover ALL
SUB Fee	NO	NO	SOME ABOUT 600 USD / YEAR SOME NO
Dongle	Yes	NO	Some tools have.
Read Method	BENCH,OBD,FULL CONNECTION ,BOOT,JTAG,BDM	BENCH,OBD,FULL CONNECTION ,BOOT,JTAG,BDM	Some tools partially support.
Virtual READ	Yes	Yes	SOME YES , SOME NO
Internet Connection	Yes	Yes	Yes
EMS2.4	Yes	NO	SOME YES , SOME NO
SID6 SID8	Yes	NO	SOME YES , SOME NO
MD1CS018 MG1CA811	Yes	NO	Some can, some can’t.
PSG16 CLONE	BENCH Read, Can be cloned.	OBD Read, Can't be cloned.	Some can, some can’t.
M10JA	BENCH Read, Can be cloned.	OBD,BOOT, OTB, Can't be cloned.	SOME OBD. SOME BENCH. SOME BOOT
PSG16	BENCH	OBD	:OBD OR BOOT
Order Option	Can be ordered separately	Just one full version	SOME CAN, SOME CANT
Master or Slave	Master	Master	MASTER OR SLAVE
Languages supported	16	Less than 16	ABOUT 6
Speed Modification	YES but partly supported	NO	Some can, some can’t.
Counter Reset	Yes	NO	Some can, some can’t.
Conclusion	IF you need clone without opening ECU, PADFLASH is a better choice.


Device Installation Process:

After receiving the device, please follow the steps below to install it

1: Please install Teamviwer remote control software on your computer
2: Connect the device host USB cable to the computer
3: Insert the USB KEY that comes with the device into the computer
4: Maintain a good working network
5: Turn on your teamviwer device and send the remote control ID and password to your sales, or send an email to info@padflashr.uk
6: Remote technical staff is online to assist you with installation online.
7: Activation time is
1: CET, UTC+1 11:00-14:00
2: CEST, UTC+2 12:00-15:00
Spanish time
8: For the convenience of customers, please leave a WhatsApp or email address to facilitate technical flexibility to connect with customers for installation and activation.
9: Operating system requirements: Currently, WIN7 64 is recommended as the main choice for better stability. WIN10 is currently under testing, and customers are not recommended to install WIN10 64. If it is stable, the win10 64 operating system will be released.
10: Computer hardware requirements: RAM not less than 4GB, CPU not less than 2.5GHz

Warm reminder: Users should not disassemble the device casing by themselves, otherwise the machine will be damaged and the warranty will be void.

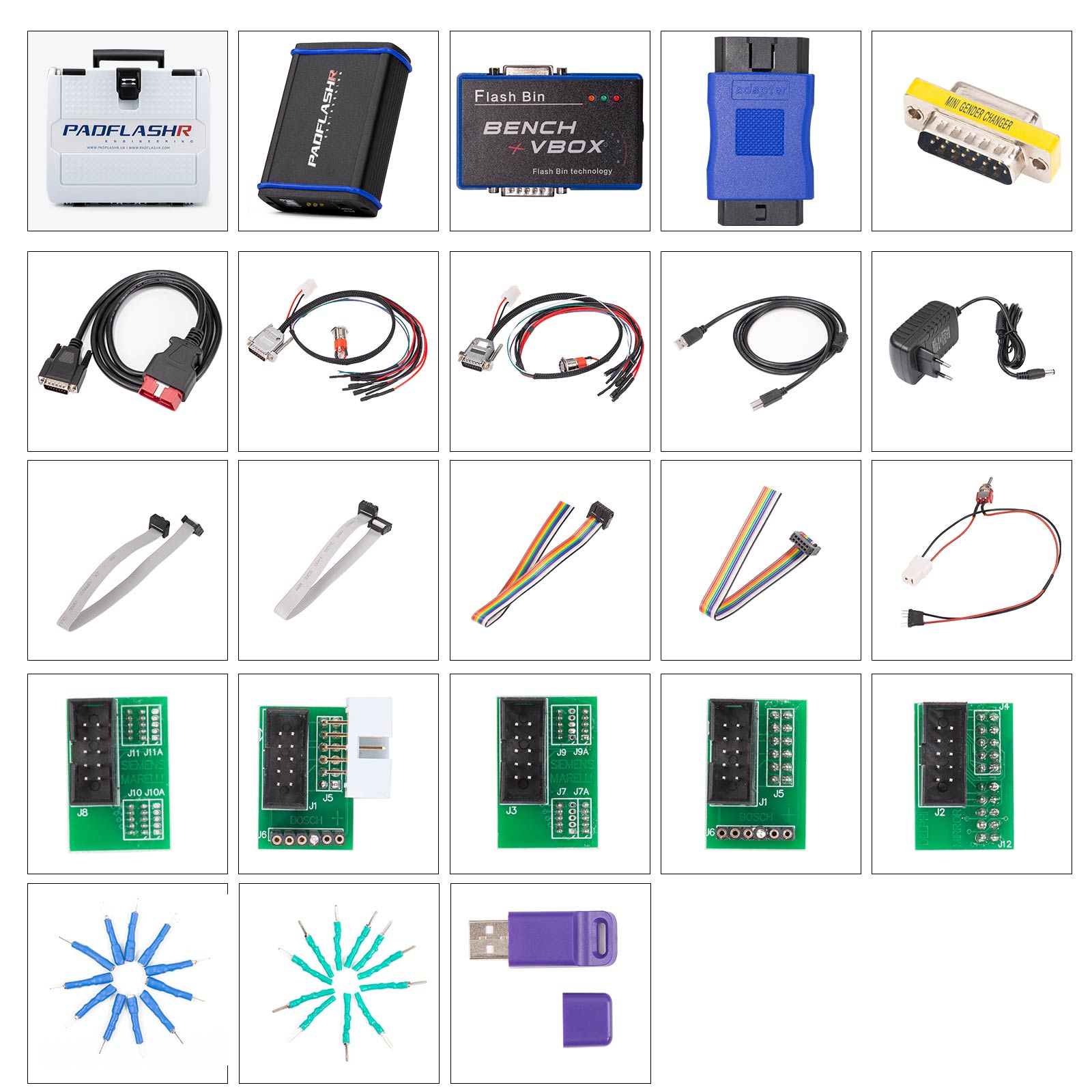

Package includes:

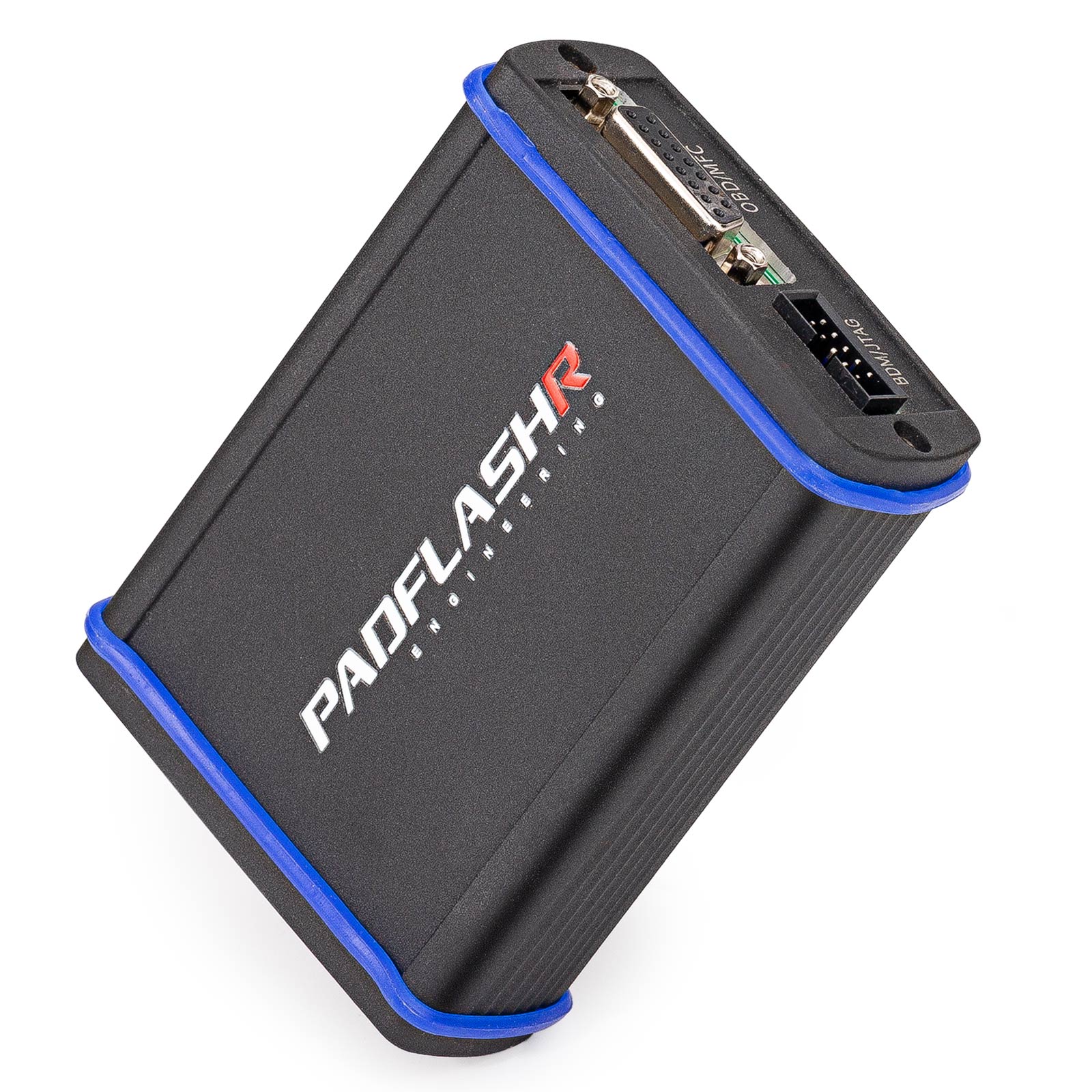

1pc x main unit

1pc x BENCH VBOX

1pc x OBDII main cable

1pc x Truck OBD adapter

1pc x Bench Boot Cable(for New Style Trucks)

1pc x Bench Boot Cable(for Old Style Trucks)

1pc x power adapter

1pc x MINI adapter

1pc x USB Key

5pcs x BDM JTAG adapters

4pcs x wiring pins

2pcs x wiring pins

1pc x adapter cable

2pcs x bdm jtag cables

2pcs x bdm jtag cables(grey)

11pcs x adapter pins(green)

11pcs x adapter pins(blue)

FAQs:

Q1: Why I need use this padflash, I already have others chiptuning tools.
Answer1: No one tuner can use one tool cover all protocols, for example, even though you have tool which includes pcr2.1, you cant read it in real test. But another tool also have pcr2.1, you will get it works on others tool, that's why we need a lot of tools.

Q2: Does it have sub fee every year?
Answer2: No.

Q3: Master or Slave?
Answer3: Master.

Q4: Need offline or online?
Answer4: online use because need checksum online.

Q5: Support virtual read or not?
Answer5: Yes, very important things, it has VR read.

Q6: Device Compatibility Which vehicle models and ECU types are supported?
Answer6: It is compatible with standard OBD-II, CAN, K-Line, and other communication protocols. It supports various vehicle types, including passenger cars, commercial trucks, motorcycles, and agricultural machinery, bikes.

Q7: What are the hardware specifications?
Answer7: USB, 12v and 24v support.

Q8: Usability & Operation?
Answer8: support automatic ECU identification, or manual selection. It requires user's manual support.

Q9: After-Sales Support
1 year warranty online support, online installation support, provide remote assistance service.

Q10: Security Feature:
Answer: It has the dongle to keep hardware safe.
