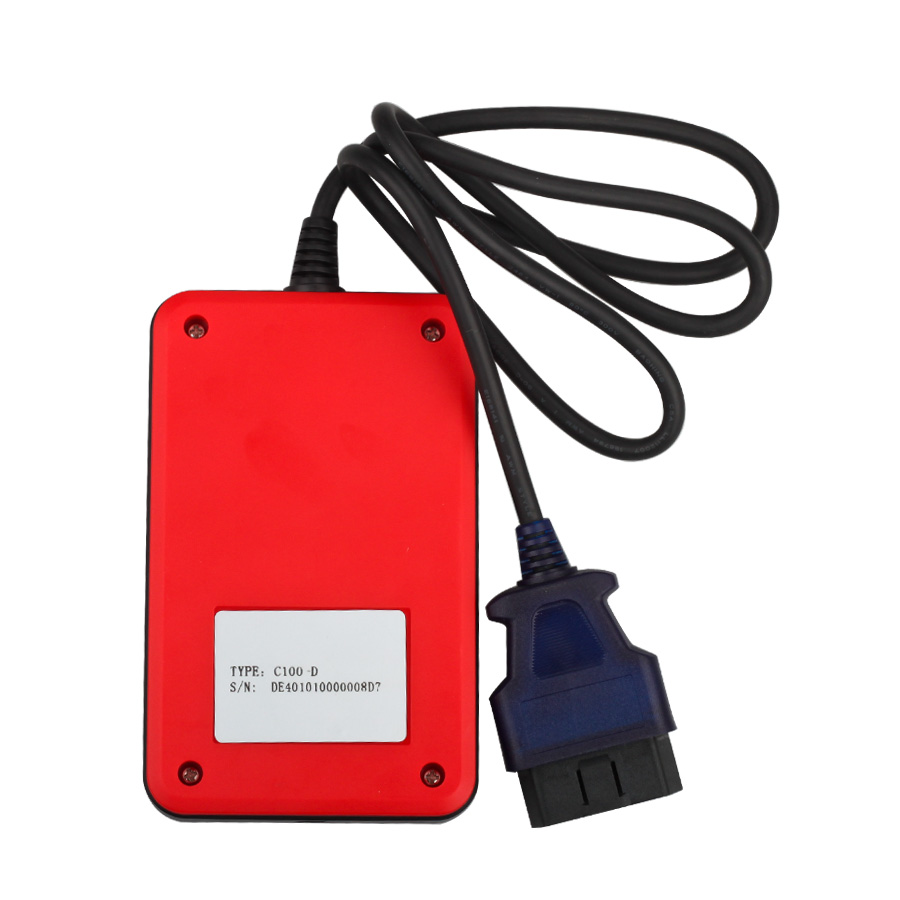

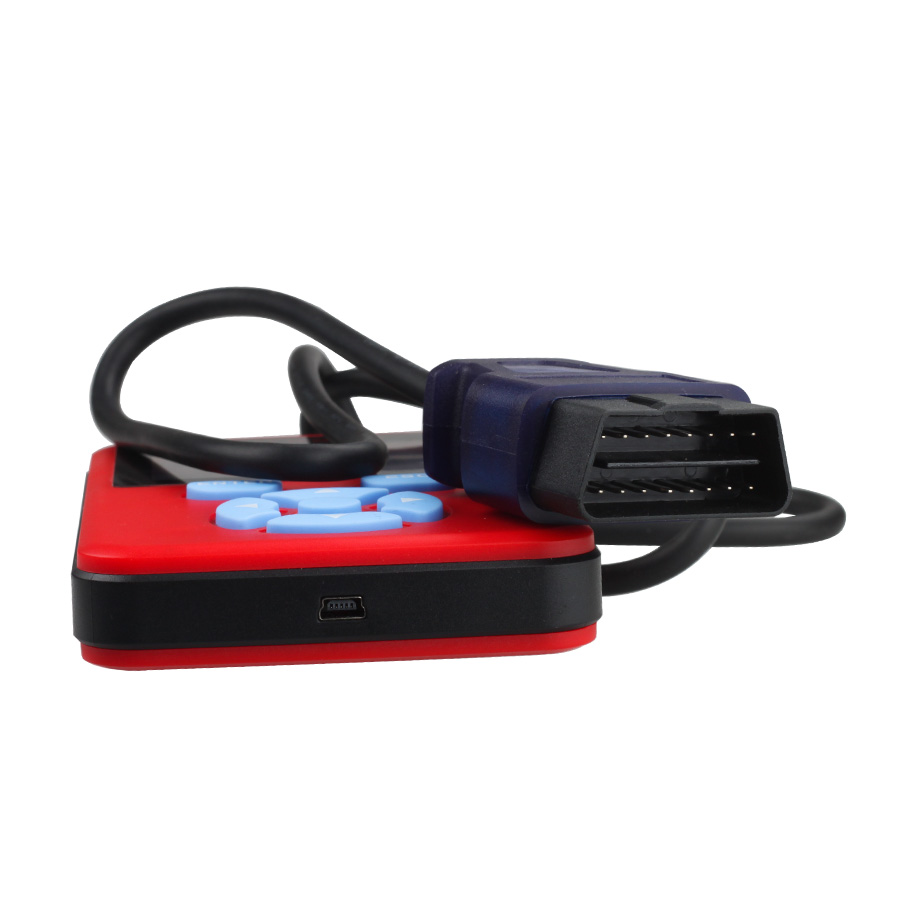

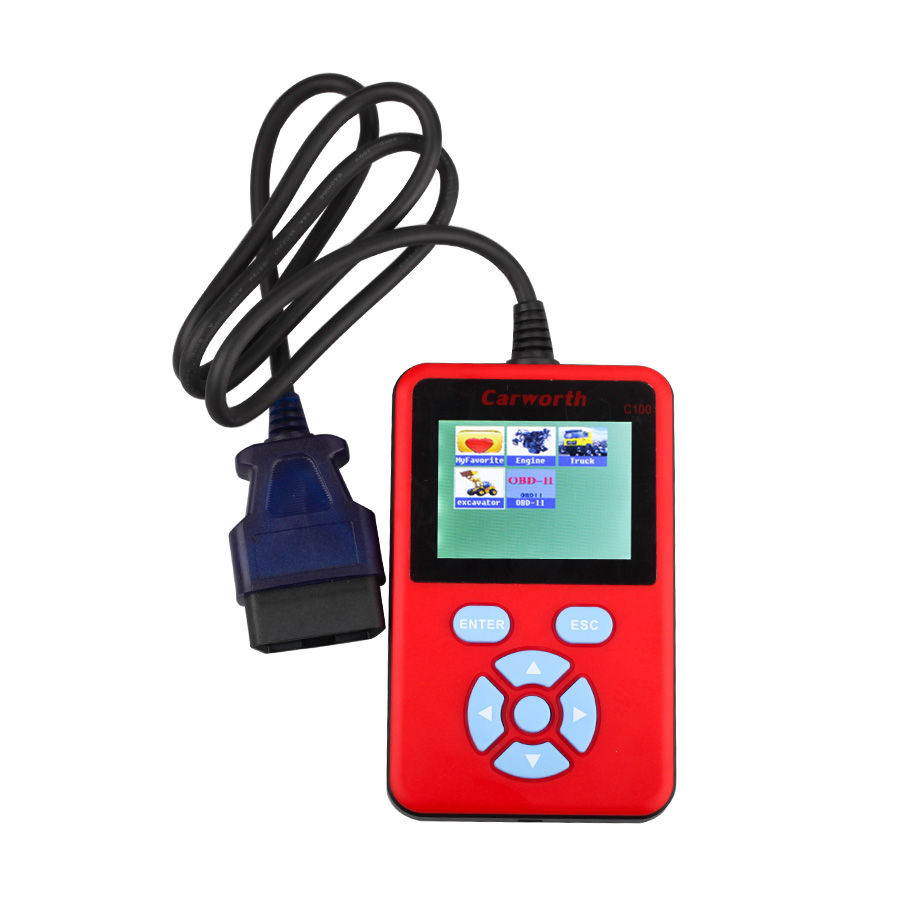

Carworth C100-D 24V Diesel Universal OBDII Scanner



Carworth vehicle coverage:



Carworth can diagnose all kinds of diesel control systems quickly and easily, especially available for China, Europe, America, Japan and Korea and so on,build-in high/low speed CAN-Bus to satisfy all Can-Bus vehicles;

It can test the vehicles including: International, Freightliner, Sterling, Western Star, Detroit, Daf, Erf, Kenworth, Man, Mitsubishi, Scania, Isuzu, Mark, Hino, Volvo, Benz, UD, Renault,and Foton, Faw, CNHTC, and all other Chinese Heavy duty trucks , Bus...



Support ECU Manufacturers including:



Bosch, Cummins, Caterpillar, Denso, Siemens, Motorola, Zexel, VITO, NanYue, Delphi, Wabco...



OBDII Diesel Scanner Carworth C100-D Features and Benefits:



Support for all standard models of OBD-II interface

Support trouble shooting all electrical control systems.

By reading the trouble code feature, you can quickly and accurately obtain the reasons of electronic control system (ECU) fault lights reasons.

A key to the elimination of the electronic control system (ECU) temporary failure exists, fault light extinguished.

Real-time display condition information, including engine speed, intake air pressure, acceleration performance, coolant temperature, oxygen sensor voltage and other information in order to analyze the reasons for failure in the technician or vehicle owner Product packaging and appearance.



Support Function:



Read DTC, Read Engine Model, Read Computer Edition Information, Read QR code, Read System parameter number, Read Data Stream, Clear DTC, Read-in QR Code, Component test, Cut off Cylinder Test, Compression Test, Injector Test, Maintenance Help, Study on line and so on some/ most models .



Supported protocols



ISO14230 (KWP2000)

ISO9141

SAE J1850 (PWM)

SAE J1850 (VPW)

J1939 (CAN)

IS014229 (UDS CAN)

BENZ-9BIT

Flash Code Protocol

SAE J1708



Technical Parameters



Host Parameters


1    CPU    dual-core architecture CORTEX M3 + ARM9 400M clocked

2    built-in    Built-in high-capacity 8G TF card

3    Power supply    9-36(VDC)

4    Port    OBD16

5    System Memory    64M SDRAM

6    Monitor    2.8-inch TFT LCD true color touch

7    Resolution    320 × 240,24-bit

8    weight    0.3kg

9    Dimensions    13.2×8.6×2.0cm

10    Storage Temperature    -30~45℃

11    Operating Temperature    -10~45℃

12    Humidity    ＜90

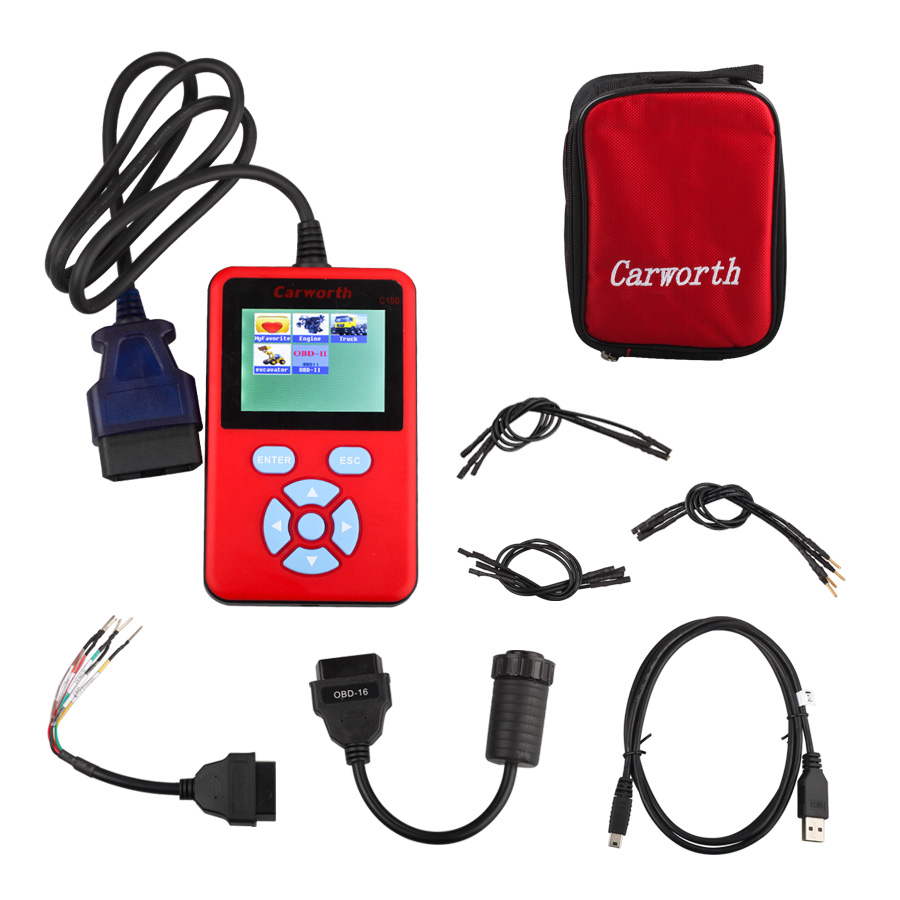

Package including:



1pc x C100-A Main unit

1pc x OBD2 Cable for Heavy duty

1pc x USB Cable

5pcs x Connect Cable

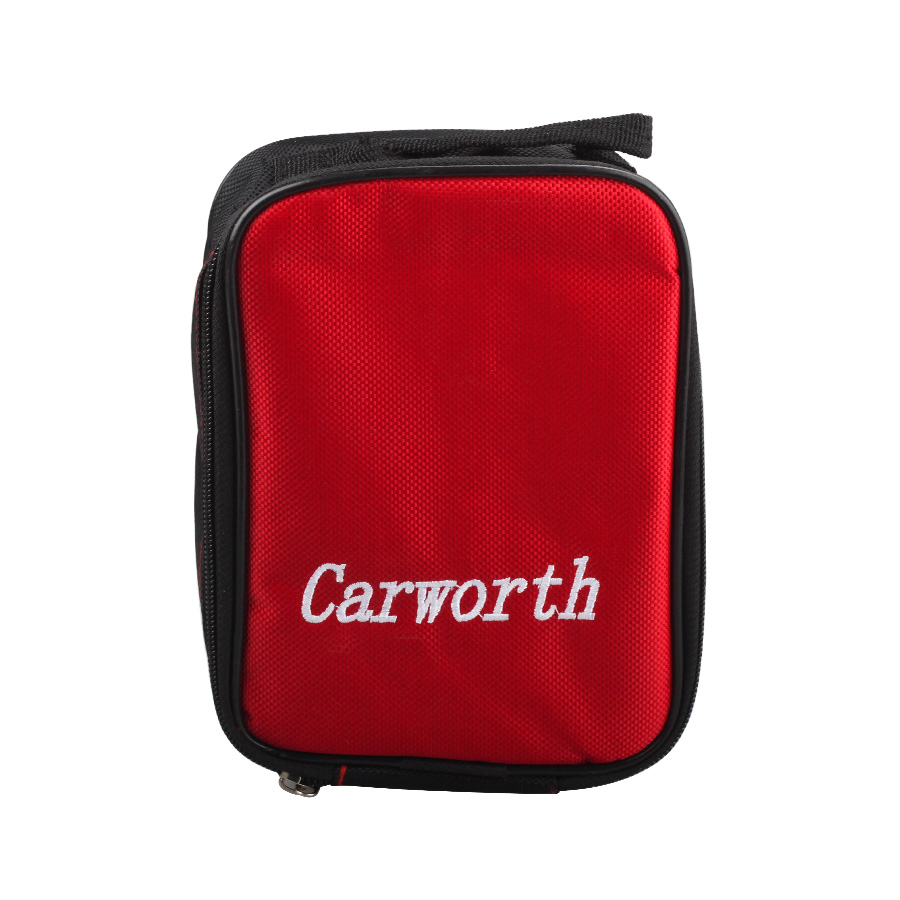

1pc x Carry Bag
