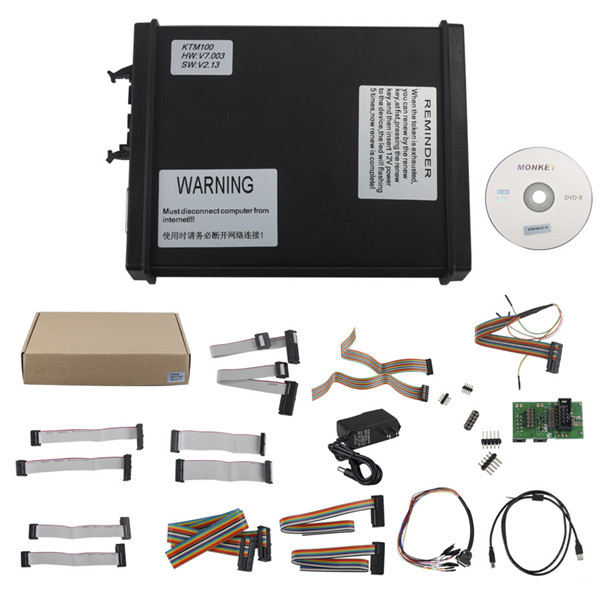

V2.13 KTM100 KTAG ECU Programming Tool Master Version Firmware V7.003 with Unlimited Token
  • Item NO. OBDAPK0422
  • History: 8 sold
  • Market price:USD$539.98
    Shop price:USD$449.99

    Quantity：

    Total：

  • Shipping Cost Inquiry:
    Select shipping to China:
    HK Post Express: USD$26
    China Korea South United States Aaland Islands Afghanistan Albania Algeria American Samoa Andorra Angola Anguilla Antarctica Antigua Argentina Armenia Aruba Australia Austria Azerbaijan Bahamas Bahrain Bangladesh Barbados Belarus Belgium Belize Benin Bermuda Bhutan Bolivia Bosnia and Herzegowina Botswana Bouvet Island Brazil British Indian Ocean Territory Brunei Darussalam Bulgaria Burkina Faso Burundi Cambodia Cameroon Canada Cape Verde Cayman Islands Central African Republic Chad Chile Christmas Island Cocos (Keeling) Islands Colombia Comoros Republic of the Congo Cook Islands Costa Rica Croatia Cuba Cyprus Czech Republic Denmark Djibouti Dominica Dominican Republic Ecuador Egypt El Salvador Equatorial Guinea Eritrea Estonia Ethiopia Falkland Islands Faroe Islands Fiji Finland France French Guiana French Polynesia French Southern Territories Gabon Gambia Georgia Germany Ghana Gibraltar Greece Greenland Grenada Guadeloupe Guam Guatemala Guinea Guinea-Bissau Guyana Haiti Heard and Mc Donald Islands Honduras Hong Kong Hungary Iceland India Indonesia Iran Iraq Ireland Israel Italy Jamaica Japan Jordan Kazakhstan Kenya Kiribati Korea-North Kuwait Kyrgyzstan Latvia Lebanon Lesotho Liberia Libya Liechtenstein Lithuania Luxembourg Macau Macedonia Madagascar Malawi Malaysia Maldives Mali Malta Marshall Islands Martinique Mauritania Mauritius Mayotte Mexico Micronesia Moldova Monaco Mongolia Montserrat Morocco Mozambique Myanmar Namibia Nauru Nepal Netherlands Netherlands Antilles New Caledonia New Zealand Nicaragua Niger Nigeria Niue Norfolk Island Northern Mariana Islands Norway Oman Pakistan Palau Panama Papua New Guinea Paraguay Peru Philippines Pitcairn Poland Portugal Puerto Rico Qatar Reunion Island Romania Russian Federation Rwanda Saint Kitts and Nevis Saint Lucia Saint Vincent and the Grenadines Samoa San Marino Sao Tome and Principe Saudi Arabia Senegal Serbia Seychelles Sierra Leone Singapore Slovakia Slovenia Solomon Islands Somalia South Africa South Georgia and the South Sandwich Islands Spain Sri Lanka St. Helena St. Pierre and Miquelon Sudan Suriname Svalbard and Jan Mayen Islands Swaziland Sweden Switzerland Syria Taiwan Tajikistan Tanzania Thailand Timor-Leste Togo Tokelau Tonga Trinidad and Tobago Tunisia Turkey Turkmenistan Turks and Caicos Islands Tuvalu Uganda Ukraine United Arab Emirates United Kingdom Somaliland United States Minor Outlying Islands Uruguay Uzbekistan Vanuatu Vatican City State Venezuela Viet Nam Virgin Islands (British) Virgin Islands (U.S.) Wallis and Futuna Islands Western Sahara Yemen Zambia Zimbabwe Brunei Laos Saipan Tahiti Guernsey Island Jersey Island Canary Islands Montenegro Kosovo The Democratic Republic of the Congo Cote D'Ivoire Bonaire Curacao Nevis St.Barthelemy St.Eustatius St.Kitts St.Lucia St.Vincent Palestine Azores Guemsey

    Weight:1.5Kg

    Rank:comment rank 5




    • Releate Goods

    Goods Brief:

    Attribute

    Video


     V2.13 KTM100 KTAG ECU Programming Tool Master Version Firmware V7.003 with Unlimited Token


    Top 6 Reasons to Get V2.13 KTM100 KTAG:

    1. Software V2.13, Hardware Version V7.003
    2. Multi-Language Support: English, Italian, Portuguese (If you need other languages, please feel free to contact us)
    3. Support BDM Function Well, Available Protocols BDM MOTOROLA MPC5xx
    4. Support both Car, Motorcyle and Truck ECU Programming
    5. V2.13 KTAG Has Unlimited Tokens, We Add a Renew Button, when you run out of tokens, only need press the renew button, then you will have tokens again.

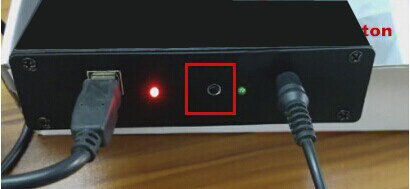

    KTM100 KTAG Renew Button

    6. KTM100 Ktag Newly Add  Encrypted ECU As Below:
    BMW:
    EDC17C41   TC1797
    EDC17CP45  TC1797
    EDC17C50   TC1797
    EDC17C56   TC1797
    EDC17CP49  TC1797
    MEVD172G  TC1797
    MEDV1725   TC1797

    VW:
    EDC17C46   TC1797
    EDC17C44   TC1797
    MED17.1.6   TC1797
    MED17.5.21  TC1782
    MED17.5.5   TC1767
    ME17.5.24   TC1724
    MED17.1.1   TC1797

    Volvo:
    EDC17CP48  TC1797

    Jaguar:
    MED17.8.31   TC1797

    Opel:
    EDC17C59   TC1767

    Mercedes:
    EDC17C46    TC1797
    MED17.7.2    TC1797
    EDC17CP57   TC1793
    EDC17C66    TC1793

    Ford:
    EDC17C10    TC1797

    Ferrari:
    MED17.3.4    TC1797

    McLaren:
    ME17.8.3      TC1797

    Renault
    ME17.9.20     TC1782

    Usage Notice:
    1. Please Only Use Our Software
    2. Operating System: Better to Use Win XP
    3. Please Disconnect Internet While Using KTAG, Otherwise It Will Get Damaged

    KTM100 KTAG Connection Picture Display:

    ktag connection

    KTAG Connection

    V2.13 KTM100 KTAG Description:

    The new KTM100 K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.

    V2.13 KTM100 K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

    Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.

    Cables From Left to Right:

    K-TAG ECU Programming Tool cable

    1.GREEN-CAN L
    2.ORANGE-VKEY
    3.YELLOW-K LINE
    4.ORANGE-VKEY
    5. RED-VECU
    6.BLACK-GND
    7.BLACK-GND
    8.PURPLE-VPP
    9.RED-VECU
    10.WHITE-CAN H

    TYPE BRAND ECU ECU_TYPE K-TAG

    Car FORD BOSCH EDC 16C34-2.20 1060
    Car FIAT BOSCH EDC 16C39 1070
    Car SEAT BOSCH EDC16 1002
    Car SKODA BOSCH EDC16 1002
    Car VOLKSWAGEN BOSCH EDC16 1002
    Car Mercedes BOSCH EDC16 C2 1004
    Car BMW BOSCH EDC16 C31 1003
    Car Mercedes BOSCH EDC16 C31 1004
    Truck Mitsubishi Fuso BOSCH EDC16 C31 1043
    Car BMW BOSCH EDC16 C31 1065
    Car Volvo BOSCH EDC16 C31 1068
    Car Mercedes BOSCH EDC16 C31 1071
    Car Mitsubishi BOSCH EDC16 C31 1077
    Car BMW BOSCH EDC16 C35 1003
    Car BMW BOSCH EDC16 C35 1065
    Car Kia BOSCH EDC16 C39 1061
    Car MAHINDRA BOSCH EDC16 C8 1021
    Car JEEP BOSCH EDC16 C-C2 1014
    Car Mercedes BOSCH EDC16 CP31 1071
    Car BMW BOSCH EDC16 CP35 1065
    Car Mercedes BOSCH EDC16 CP36 1071
    Car HYUNDAI BOSCH EDC16+ 1061
    Car LANCIA BOSCH EDC16+ 1070
    Car FORD BOSCH EDC16+ C34 1060
    Car MAZDA BOSCH EDC16+ C34 1060
    Car PEUGEOT BOSCH EDC16+ C34 1060
    Car FORD BOSCH EDC16+ C34/5.95 1060
    Car CITROEN BOSCH EDC16+ C34/C39 1060
    Car PEUGEOT BOSCH EDC16+ C34/C39 1060
    Car MINI BOSCH EDC16+ C35 1065
    Car BUICK BOSCH EDC16+ C39 1074
    Car CHEVROLET BOSCH EDC16+ C39 1074
    Car GM DAEWOO BOSCH EDC16+ C39 1074
    Car HOLDEN BOSCH EDC16+ C39 1074
    Car OPEL GM BOSCH EDC16+ C39 1074
    Car SAAB BOSCH EDC16+ C39 1074
    Car SATURN BOSCH EDC16+ C39 1074
    Car SUBARU BOSCH EDC16+ C39 1074
    Car VAUXHALL BOSCH EDC16+ C39 1074
    Car GWM BOSCH EDC16+ C39 1084
    Truck IVECO TRUCKS BOSCH EDC16+ C39 1140
    Car SUZUKI BOSCH EDC16+ C39 1212
    Car CHRYSLER BOSCH EDC16+ CP31 1077
    Car JEEP BOSCH EDC16+ CP31 1077
    Car DODGE BOSCH EDC16+ CP31 1080
    Car SMART BOSCH EDC16+ CP32 1077
    Car VOLKSWAGEN BOSCH EDC16+ CP34 1067
    Car LAND ROVER BOSCH EDC16+ CP39-6.40 1120
    Car SEAT BOSCH EDC16+ U31/U34 1067
    Car SKODA BOSCH EDC16+ U31/U34 1067
    Car VOLKSWAGEN BOSCH EDC16+ U31/U34 1067
    Tractor LINDE AG BOSCH EDC16+ U31/U34 1067
    Car SMART BOSCH EDC16+C31 1077
    Car NISSAN BOSCH EDC16+C36 1029
    Car OPEL GM BOSCH EDC16+C36 1029
    Car RENAULT BOSCH EDC16+C36 1029
    Car CITROEN BOSCH EDC16C0/C3 1005
    Car PEUGEOT BOSCH EDC16C0/C3 1005
    Car NISSAN BOSCH EDC16C0/C3 1006
    Car OPEL GM BOSCH EDC16C0/C3 1006
    Car RENAULT BOSCH EDC16C0/C3 1006
    Car SUZUKI BOSCH EDC16C0/C3 1016
    Car HONDA BOSCH EDC16C1-7 1012
    Car FORD BOSCH EDC16C3 1011
    Car MAZDA BOSCH EDC16C3 1011
    Car FORD BOSCH EDC16C34 1060
    Car FIAT BOSCH EDC16C39 1060
    Car Alfa Romeo BOSCH EDC16C39 1070
    Car FIAT BOSCH EDC16C39 1070
    Car LANCIA BOSCH EDC16C39 1070
    Car FORD BOSCH EDC16C7-7 1011
    Car MAZDA BOSCH EDC16C7-7 1011
    Car Alfa Romeo BOSCH EDC16C8 1001
    Car FIAT BOSCH EDC16C8 1001
    Car LANCIA BOSCH EDC16C8 1001
    Truck IVECO TRUCKS BOSCH EDC16C8 1130
    Car FIAT BOSCH EDC16C9 1001
    Car HOLDEN BOSCH EDC16C9 1007
    Car OPEL GM BOSCH EDC16C9 1007
    Car SAAB BOSCH EDC16C9 1007
    Car SATURN BOSCH EDC16C9 1007
    Car SUBARU BOSCH EDC16C9 1007
    Car VAUXHALL BOSCH EDC16C9 1007
    Car CHEVROLET BOSCH EDC16C9 1017
    Car Audi BOSCH EDC16CP34 1067
    Car Audi BOSCH EDC16CP34 V8 M&S 1067
    Car Audi BOSCH EDC16U 1002
    Car Audi BOSCH EDC16U31 1067
    Car SKODA BOSCH EDC16U31 1067
    Car Audi BOSCH EDC16U34 1067
    Truck FORD TRUCKS BOSCH EDC7 1031
    Truck VOLVO TRUCKS BOSCH EDC7 C1 1059
    Truck MAN TRUCKS BOSCH EDC7/C 1135
    Truck MAN TRUCKS BOSCH EDC7+/C32 1139
    Truck AGRALE TRUCKS BOSCH EDC7C1 1383
    Truck FORD TRUCKS BOSCH EDC7C1/C2 1031
    Truck VOLKSWAGEN TRUCKS BOSCH EDC7C1/C2 1058
    Tractor CASE TRACTORS BOSCH EDC7C1/C2 1129
    Tractor NEW HOLLAND BOSCH EDC7C1/C2 1129
    Truck IVECO TRUCKS BOSCH EDC7C1/C2 1129
    Tractor LEXEA BOSCH EDC7C1/C2 1134
    Truck AGRALE TRUCKS BOSCH EDC7C1/C2 1134
    Truck ASTRA TRUCKS BOSCH EDC7U31 1137
    Truck IVECO TRUCKS BOSCH EDC7U31 1137
    Tractor AGCO TRACTORS BOSCH EDC7UC31 1089
    Tractor CASE TRACTORS BOSCH EDC7UC31 1089
    Tractor FENDT TRACTORS BOSCH EDC7UC31 1089
    Tractor MASSEY FERGUSON BOSCH EDC7UC31 1089
    Tractor VALTRA TRACTORS BOSCH EDC7UC31 1089
    Tractor FENDT TRACTORS BOSCH EDC7UC31 1160
    Tractor NEW HOLLAND BOSCH EDC7UC31/EDC16U40 1143
    Tractor DEUTZ BOSCH EDC7UC31/EDC16U40 1144
    Tractor FENDT TRACTORS BOSCH EDC7UC31/EDC16U40 1160
    Tractor LAMBORGHINI TRACTORS BOSCH EDC7UC31/EDC16U40 1160
    Car FORD BOSCH ME9 1076
    Car Volvo BOSCH ME9.0 1073
    Car BMW BOSCH ME9.2 1019
    Car VOLKSWAGEN BOSCH ME9.5 FSI 1064
    Car OPEL GM BOSCH ME9.6 1225
    Car OPEL GM BOSCH ME9.6.1 1225
    Car Mercedes BOSCH ME9.7 1102
    Car FERRARI BOSCH MED 9.6.11 1335
    Car Audi BOSCH MED9.1.1 1064
    Car Audi BOSCH MED9.1.5 1064
    Car Audi BOSCH MED9.5.10 1064
    Car BMW BOSCH MEV946 1019
    Car BMW BOSCH MEV946 1103
    Car SSANGYONG DELPHI DCM 1022
    Car Kia DELPHI DCM3.2 1112
    Car SSANGYONG DELPHI DCM3.2 1112
    Truck DAF TRUCKS DELPHI DMCI 1142
    Car FORD DELPHI MPC 555 1020
    Car JAGUAR DELPHI MPC 555 1020
    Car OPEL GM MARELLI MAREL0100 Z13DTJ 1107
    Car CHEVROLET MARELLI MARELLI+ 6O203D 1107
    Car HOLDEN MARELLI MARELLI+ 6O203D 1107
    Car OPEL GM MARELLI MARELLI+ 6O203D 1107
    Car SATURN MARELLI MARELLI+ 6O203D 1107
    Car SUZUKI MARELLI MARELLI+ 6O203D 1107
    Car VAUXHALL MARELLI MARELLI+ 6O203D 1107
    Car Alfa Romeo MARELLI MJD6F3 1085
    Car FIAT MARELLI MJD6F3 MPC563 1085
    Car LANCIA MARELLI MJD6F3 MPC563 1085
    Car FIAT MARELLI MJT 1300 1008
    Car LANCIA MARELLI MJT 1300 1008
    Car SUZUKI MARELLI MJT 1300 1009
    Car CHEVROLET MARELLI MJT 1300 1010
    Car HOLDEN MARELLI MJT 1300 1010
    Car OPEL GM MARELLI MJT 1300 1010
    Car VAUXHALL MARELLI MJT 1300 1010
    Truck VOLKSWAGEN TRUCKS MOTOROLA CM850 1093
    Tractor CASE TRACTORS MOTOROLA CM850 1124
    Tractor MC CORMICK MOTOROLA CM850 1124
    Tractor NEW HOLLAND MOTOROLA CM850 1124
    Truck DAF TRUCKS MOTOROLA CM850 1125
    Tractor HYUNDAI TRACTORS MOTOROLA CM850 1169
    Tractor John Deere MOTOROLA CM850 1190
    Tractor JCB TRACTORS MOTOROLA CM850 1191
    Tractor John Deere PHOENIX L3-4-6-9-11-12-14-15-16 1123
    Tractor CLAAS TRACTORS PHOENIX  1123
    Tractor CMI PHOENIX  1123
    Car BMW SIEMENS MS45 1018
    Car BMW SIEMENS MSS70 1110
    Car BMW SIEMENS MSV70 1110
    Car Audi SIEMENS PPD1.2 1075
    Car VOLKSWAGEN SIEMENS PPD1.5 1075
    Car SEAT SIEMENS PPD1.XX 1075
    Car SKODA SIEMENS PPD1.XX 1075
    Car VOLKSWAGEN SIEMENS PPD1.XX 1075
    Car LAND ROVER SIEMENS SID 201-203-204 1098
    Car Volvo SIEMENS SID 206 1082
    Car JAGUAR SIEMENS SID 20X 1105
    Car NISSAN SIEMENS SID 301 1081
    Car RENAULT SIEMENS SID 301 1081
    Car Volvo SIEMENS SID 803 1032
    Car Volvo SIEMENS SID 803A 1078
    Car PEUGEOT SIEMENS SID201 1104
    Car FORD SIEMENS SID206 1082
    Car MAZDA SIEMENS SID206 1082
    Car CITROEN SIEMENS SID803 1032
    Car PEUGEOT SIEMENS SID803 1032
    Car CITROEN SIEMENS SID803A 1078
    Car FORD SIEMENS SID803A 1078
    Car PEUGEOT SIEMENS SID803A 1078
    Car FIAT SIEMENS SID803A 1083
    Car LANCIA SIEMENS SID803A 1083
    Car Kia SIEMENS SIM2K 1194
    Car Audi SIEMENS SIMOS 6.2/6.3 1174
    Truck RENAULT TRUCKS TRW TRW EMS2 1138
    Truck VOLVO TRUCKS TRW TRW EMS2 1138
    Truck RENAULT TRUCKS TRW TRW EMS2 DXI12 1138

    J-TAG NEXUS MPC5xx

    TYPE BRAND ECU ECU_TYPE K-TAG
    Car CITROEN DELPHI DCM3.5 244
    Car FORD DELPHI DCM3.5 244
    Car Mercedes DELPHI DCM3.5 248
    Car JEEP DELPHI DCM3.5 - CRD2 248
    Car FIAT MARELLI 7GF 247
    Car SUZUKI MARELLI 8DS 364
    Car Abarth MARELLI 8GMF 243
    Car Alfa Romeo MARELLI 8GMF 243
    Car FIAT MARELLI 8GMF 243
    Car FIAT MARELLI 8GSF 243
    Car LANCIA MARELLI 8GSF 243
    Car Alfa Romeo MARELLI MJ8DF 303
    Car CITROEN MARELLI MJ8DF 303
    Car FIAT MARELLI MJ8DF 303
    Car LANCIA MARELLI MJ8DF 303
    Car PEUGEOT MARELLI MJ8DF 303
    Car Fiat MARELLI MJ8F3 382
    Truck VOLVO TRUCKS TRW TRW EMS2 246

    J-TAG RENESAS SH705x

    TYPE BRAND ECU ECU_TYPE K-TAG
    Car CITROEN DELPHI DCM3.4 257
    Car PEUGEOT DELPHI DCM3.4 257
    Car DACIA DELPHI DCM3.4 258
    Car NISSAN DELPHI DCM3.4 258
    Car RENAULT DELPHI DCM3.4 258
    Car PEUGEOT DELPHI DCM3.4 362
    Car SUZUKI DENSO 057L1 370
    Car SUZUKI DENSO 062J0 262
    Car OPEL GM DENSO 1.7 253
    Car SUZUKI DENSO 79J2 316
    Car SUBARU DENSO CJ 281
    Car NISSAN DENSO D3 264
    Car RENAULT DENSO D3 264
    Car Subaru DENSO DM 375
    Car SUBARU DENSO DT 276
    Car NISSAN DENSO E1x 315
    Car NISSAN DENSO H1 294
    Car SUBARU DENSO KS 275
    Car JAGUAR DENSO MB079700 346
    Car Mazda Denso N3J1 395
    Car MAZDA DENSO R2AX 263
    Car Mitsubishi DENSO RA6 265
    Car Mitsubishi DENSO RA6 319
    Car Mitsubishi DENSO RA6 324
    Car MAZDA DENSO RF7K 278
    Car MAZDA DENSO RF7X 278
    Car MAZDA DENSO RF8G 277
    Car MAZDA DENSO RF8K 277
    Car Mitsubishi DENSO RHF4 265
    Car MAZDA DENSO ZJ77 344
    Car OPEL GM DENSO  253
    Car MAZDA DENSO  262
    Car NISSAN DENSO  264
    Car OPEL GM DENSO  295
    Car NISSAN DENSO  314
    Car NISSAN DENSO  315
    Car SUZUKI DENSO  316
    Car MAZDA DENSO  321
    Car OPEL GM DENSO  322
    Truck HINO DENSO  347
    Car NISSAN HITACHI  296
    Car NISSAN HITACHI  298
    Car NISSAN HITACHI  299
    Car RENAULT SAGEM SAGEM 3000 210
    Car RENAULT SAGEM SAGEM 3000 250
    Car RENAULT SAGEM SAGEM 3000 280
    Car RENAULT SAGEM SAGEM S3000 280
    Car RENAULT SIEMENS SIM32 252
    Car DACIA VALEO V40 251
    Car RENAULT VALEO V42 280
    Car HOLDEN
    Car OPEL GM
    Car SATURN
    Car SUZUKI
    Car VAUXHALL
    Car Alfa Romeo
    Car FIAT
    Car LANCIA
    Car CHEVROLET
    Car FIAT
    Car HOLDEN
    Car LANCIA
    Car OPEL GM
    Car SUZUKI
    Car VAUXHALL
    Tractor CASE TRACTORS
    Tractor HYUNDAI TRACTORS
    Tractor JCB TRACTORS
    Tractor John Deere
    Tractor MC CORMICK
    Tractor NEW HOLLAND
    Truck DAF TRUCKS
    Truck VOLKSWAGEN TRUCKS
    Tractor John Deere
    Tractor CLAAS TRACTORS
    Tractor CMI
    Car BMW
    Car BMW
    Car BMW
    Car Audi
    Car VOLKSWAGEN
    Car SEAT
    Car SKODA
    Car VOLKSWAGEN
    Car LAND ROVER
    Car Volvo
    Car JAGUAR
    Car NISSAN
    Car RENAULT
    Car Volvo
    Car Volvo
    Car PEUGEOT
    Car FORD
    Car MAZDA
    Car CITROEN
    Car PEUGEOT
    Car CITROEN
    Car FIAT
    Car FORD
    Car LANCIA
    Car PEUGEOT
    Car Kia
    Car Audi
    Truck RENAULT TRUCKS
    Truck VOLVO TRUCKS
    Truck RENAULT TRUCKS

    BOOTLOADER MITSUBISHI MH72xx/MH8xx

    TYPE BRAND ECU ECU_TYPE K-TAG
    Car Kia KEFIKO EH8 317
    Car Kia KEFIKO KTS3 351
    Car Mitsubishi MELCO G1Tx 350
    Car Mitsubishi MELCO MH72XX 259
    Car Volvo MELCO MH72XX 259
    Car Mitsubishi MELCO MH72XX 260
    Car Mitsubishi MELCO MH72XX 297
    Car Mitsubishi MELCO MH72XX 318
    Car Mitsubishi MELCO MH8304F 255
    Car Mitsubishi MELCO MH8XXX 260
    Bike SUZUKI MARINE MELCO  254
    Bike YAMAHA MELCO  284
    Bike KAWASAKI MELCO  285
    Car SUZUKI MITSUBISHI E6T172 369
    Car Mitsubishi MITSUBISHI E6T49xxx 391
    Car SUZUKI MITSUBISHI E6T900 M0 355
    Car MAZDA MITSUBISHI L3Bx 345
    Car SUZUKI MITSUBISHI MH72XX 259
    Car Brilliance MITSUBISHI MH72XX 297
    Car FORD MITSUBISHI MH72XX 297
    Car HYUNDAI MITSUBISHI MH72XX 297
    Car MAZDA MITSUBISHI MH72XX 297
    Car SMART MITSUBISHI MH8304F 255
    Bike KAWASAKI MITSUBISHI  300

    BOOTLOADER INFINEON TRICORE

    TYPE BRAND ECU ECU_TYPE K-TAG
    Car BMW BOSCH EDC17 C06 1156
    Car OPEL GM BOSCH EDC17 C19 1153
    Car BMW BOSCH EDC17 C41 DDE8 1220
    Car MINI BOSCH EDC17 C41 DDE8 1220
    Car Mercedes BOSCH EDC17 C43 1231
    Car Mercedes BOSCH EDC17 CP01 1157
    Car BMW BOSCH EDC17 CP02 1156
    Car SEAT BOSCH EDC17 CP04/CP14 1126
    Car SKODA BOSCH EDC17 CP04/CP14 1126
    Car VOLKSWAGEN BOSCH EDC17 CP04/CP14 1126
    Car BMW BOSCH EDC17 CP09 1156
    Truck Mitsubishi Fuso BOSCH EDC17 CP15 1170
    Car Chevrolet BOSCH EDC17 CP18 1394
    Car GMC BOSCH EDC17 CP18 1394
    Car Volvo BOSCH EDC17 CP22 1158
    Car LAND ROVER BOSCH EDC17 CP42 1177
    Car FORD BOSCH EDC17 CP42 1197
    Car BMW BOSCH EDC17 CP45 DDE8 1220
    Car Fiat BOSCH EDC17 CP52 1363
    Car HYUNDAI BOSCH EDC17C08 1127
    Car Kia BOSCH EDC17C08 1127
    Car Audi BOSCH EDC17CP14 1126
    Car Audi BOSCH EDC17CP20 1126
    Car SEAT BOSCH EDC17U01 1126
    Car SKODA BOSCH EDC17U01 1126
    Car VOLKSWAGEN BOSCH EDC17U01 1126
    Car VOLKSWAGEN BOSCH EDC17U01/U05 1126
    Car HYUNDAI BOSCH ME 17.9.11 1339
    Car Kia BOSCH ME17.9 1339
    Car SUZUKI BOSCH ME17.X 1340
    Car Alfa Romeo BOSCH MED17.3.1 1150
    Car LANCIA BOSCH MED17.3.1 1150
    Car CITROEN BOSCH MED17.4/MEV17.4 1196
    Car PEUGEOT BOSCH MED17.4/MEV17.4 1196
    Car Audi BOSCH MED17.5 1128
    Car Audi BOSCH MED17.5.1 1128
    Car Audi BOSCH MED17.5.20 1128
    Car Audi BOSCH MED17.5.5 1128
    Car Mercedes BOSCH MED17.7.1 1249
    Car SEAT BOSCH MED17.X CAN 1128
    Car SKODA BOSCH MED17.X CAN 1128
    Car VOLKSWAGEN BOSCH MED17.X CAN 1128
    Car MINI BOSCH MED17x/MEV17x 1148
    Car BMW BOSCH MEV1746 1171
    Car BMW BOSCH MEVD17.2 1215

    BOOTLOADER ST10

    TYPE BRAND ECU ECU_TYPE K-TAG
    Car PEUGEOT BOSCH EDC15C2 397
    Car PEUGEOT BOSCH EDC15C6/C7 397
    Car PEUGEOT BOSCH EDC16+ 397
    Car PEUGEOT BOSCH EDC16+ C34 397
    Car PEUGEOT BOSCH EDC16+ C34/C39 397
    Car PEUGEOT BOSCH EDC16+ CP39 397
    Car PEUGEOT BOSCH EDC16C0/C3 397
    Car PEUGEOT BOSCH EDC16C34/5.90 397
    Car Kia BOSCH M7.9.8 167
    Car Volvo BOSCH ME7.0 325
    Car Audi BOSCH ME7.1.1 51
    Car Audi BOSCH ME7.1.1 52
    Car Audi BOSCH ME7.1.5 51
    Car PORSCHE BOSCH ME7.2 240
    Car FERRARI BOSCH ME7.3.2 42
    Car MASERATI BOSCH ME7.3.2 42
    Car PEUGEOT BOSCH ME7.4.4 397
    Car Chery BOSCH ME7.4.4 409
    Car CITROEN BOSCH ME7.4.5 25
    Car PEUGEOT BOSCH ME7.4.5 397
    Car Audi BOSCH ME7.5.10 49
    Car VOLKSWAGEN BOSCH ME7.5.20 186
    Car VOLKSWAGEN BOSCH ME7.5.30 186
    Car Audi BOSCH ME7.5.5 48
    Car OPEL GM BOSCH ME7.6.4 192
    Car SMART BOSCH ME7.7.0 23
    Car PORSCHE BOSCH ME7.8 41
    Car PORSCHE BOSCH ME7.8.2 40
    Car Abarth BOSCH ME7.9.10 24
    Car Alfa Romeo BOSCH ME7.9.10 24
    Car FIAT BOSCH ME7.9.10 24
    Car FIAT BOSCH ME7.9.10 24
    Car LANCIA BOSCH ME7.9.10 24
    Car OPEL GM BOSCH ME7.9.9 224
    Car PEUGEOT BOSCH MED17.4/MEV17.4 397
    Car Alfa Romeo BOSCH MED7.1.1 30
    Car Alfa Romeo BOSCH MED7.6.1 27
    Car Alfa Romeo BOSCH MED7.6.2 26
    Car PEUGEOT DELPHI DCM3.4 397
    Car CITROEN JOHNSON VALEO 122
    Car PEUGEOT JOHNSON VALEO 122
    Car CITROEN JOHNSON VALEO V34P 211
    Car FIAT JOHNSON VALEO V34P 211
    Car PEUGEOT MARELLI IAW 48P2 397
    Car FIAT MARELLI IAW 4AF 390
    Car Mitsubishi MARELLI IAW 4AM 232
    Car VOLKSWAGEN MARELLI IAW 4AVP 183
    Car VOLKSWAGEN MARELLI IAW 4BV 184
    Car Ford MARELLI IAW 4CF 393
    Car FIAT MARELLI IAW 4DF 44
    Car VOLKSWAGEN MARELLI IAW 4GV 185
    Car SEAT MARELLI IAW 4HV 185
    Car SKODA MARELLI IAW 4HV 185
    Car VOLKSWAGEN MARELLI IAW 4HV 185
    Car FIAT MARELLI IAW 4SF 44
    Car SEAT MARELLI IAW 4TV 173
    Car SKODA MARELLI IAW 4TV 173
    Car VOLKSWAGEN MARELLI IAW 4TV 173
    Bike APRILIA MARELLI IAW 5DM 94
    Car FIAT MARELLI IAW 5SF 28
    Car LANCIA MARELLI IAW 5SF 28
    Car FIAT MARELLI IAW 5SF 63
    Car LANCIA MARELLI IAW 5SF 63
    Bike DUCATI MARELLI IAW 5SM 87
    Bike MV AGUSTA MARELLI IAW 5SM 87
    Car CITROEN MARELLI IAW 6KPB 91
    Car PEUGEOT MARELLI IAW 6KPB 397
    Car CITROEN MARELLI IAW 6LP 45
    Car FIAT MARELLI IAW 6LP 45
    Car PEUGEOT MARELLI IAW 6LP 45
    Car PEUGEOT MARELLI IAW 6LP 397
    Bike MV AGUSTA MARELLI IAW 7BM 217
    Bike APRILIA MARELLI IAW 7SM 239
    Car PEUGEOT MARELLI MJ8DF 397
    Car Catehram MBE 959 392
    Bike POLARIS POLARIS M7.4.4 56
    Car PEUGEOT SIEMENS SID201 397
    Car PEUGEOT SIEMENS SID801 397
    Car PEUGEOT SIEMENS SID803 397
    Car PEUGEOT SIEMENS SID803A 397
    Car PEUGEOT SIEMENS SID804 397
    Car HYUNDAI SIEMENS SIMK43 353
    Car Kia SIEMENS SIMK43 353
    Car CHEVROLET SIEMENS SIMTEC 76 333
    Car HOLDEN SIEMENS SIMTEC 76 333
    Car FORD VISTEON DCU102 37
    Car LAND ROVER VISTEON DCU102 37
    Car CITROEN VISTEON DCU102 38
    Car FIAT VISTEON DCU102 38
    Car PEUGEOT VISTEON DCU102 397

    Just as the full range of Alientech programmers, K-TAG is available both in Master and Slave

    version. This way, Slave user can rely on the larger network of Master in the chiptuning

    field.The only thing that K-TAG does not do: OBD Communication. But for that you can count

    on KESSv2.

    To use K-Tag at best on any kind of Electronic Control Unit, Alientech offers you a wide

    range of special adapters, to be soldered on the ECU or to be used on the positioning frame.

    Following Details of the Accessories Available in Car List Catalog Per Group of Protocols of

    Communication

    BDM Motorola MPC5XX

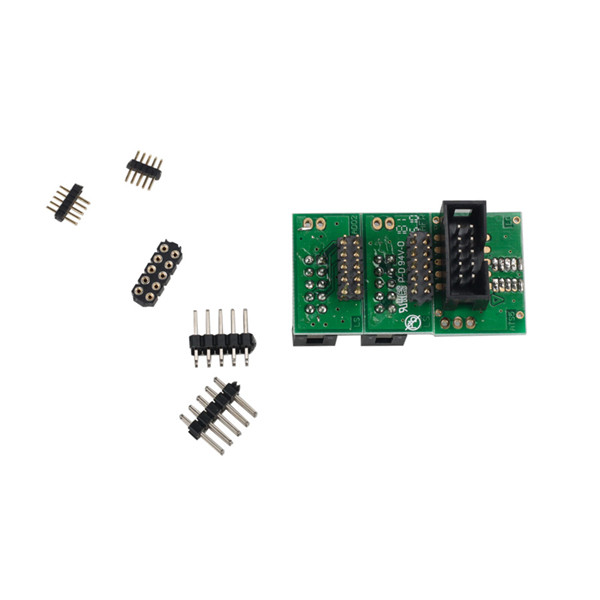

    14AS00T01S: Adapter to be soldered to the ECU
    14AS00T02S: Cable with connector to be soldered to the ECU
    14AS00T03S: Adapter to be soldered to the ECU
    14AS00T04S: Adapter to be soldered to the ECU
    14AM00T00M: Board for connection through positioning frame
    14AM00T01M: Board for connection through positioning frame
    14AM00T02M: Board for connection through positioning frame
    14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip

    14AM00TB01
    14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip

    14AM00TB02
    14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip

    14AM00TB03

    J-TAG Nexus MPC5xx
    14AS00T05S: Adapter to be soldered to the ECU
    14AM00T05M: Board for connection through positioning frame
    14AM00T06M: Board for connection through positioning frame

    J-TAG RENESAS SH705xx
    14AM00T07M: Write Board for connection through positioning frame
    14AM00T08M: Write Board for connection through positioning frame
    14AM00T09M: Write Board for connection through positioning frame
    14AM00T10M: Read Board for connection through positioning frame
    14AM00T11M: Read Board for connection through positioning frame

    BOOTLOADER INFINEON TRICORE
    14P600KT04: Board for connection through positioning frame

    BOOTLOADER ST10
    14AM00T03M: Board for connection through positioning frame




    Contact Information:

    Whatsapp: +1 937 888 0032

    Live Support: Chat with us online

    E-mail: sale@obdtools.net

    Skype: jansonsh@hotmail.com


    If you have any problem, please do not hesitate to contact us.

    User Comment(Total0User Comment Num)

    • No comment
    Total 0 records, divided into1 pages. First Prev Next Last
    Username： Anonymous user
    E-mail：
    Rank：
    Content：
    Verification code： captcha
    Company Info
    Why Shop at obdtools.net
    About obdtools.net
    Working Hours
    Our Guarantee
    Payment & Shipping
    Delivery Options
    Payment Methods
    Shopping Guide
    Delivery Cost
    Customs & Import Tax
    Other
    Customer Service
    Contact us
    Forget your account password
    Track Your Order
    Tips to use OBDTOOLS.NET
    Company Policies
    Products Warranty
    Refund Policy
    Return Policy
    Privacy Policy
    Return for repair
    Other Business
    Dropship
    Wholesale
    Join Our Community:
    OBDTOOLS Blog
    OBDTOOLS Blogger
    OBDTOOLS wordpress
    OBDTOOLS
    OBDTOOLS youtube
    OBDTOOLS tumblr
    OBDTOOLS pinterest
    OBDTOOLS linkedin
    Home | Shopping Guide | Delivery Options | Return Policy | Contact US | About
