Launch CReader 419 DIY Scanner OBDII/EOBD Auto Diagnostic Scan Tool Code Reader

 Launch CReader 419 OBD2 Scanner is a car maintenance tool for home use (junior users). It features a full color display, meets all OBDII/EOBD protocols, provides commonly-used diagnostic functions, helps to rectify daily maintenance fault codes and it is cost effective.




1. OBD partial functions
•Read DTCs
•Clear DTCs
•Turns off Malfunction Indicator Light (MIL)
•Read dynamic data streams
•Read readiness status
•Read freeze frame data
•Read pending DTCs
•Read permanent DTCs
•Read vehicle information

2. Color and graphical display of data streams
3. Query DTCs
4. Update: Free update via internet
5. Language: Multilingual English,French,Spanish (more language will be added)


Support car models for OBDII diagnostic function:
Creader 419 is a diagnostic scan tool for vehicles that work with OBD II from 1996(America)  to present , 2002(Europe) to present.

How to Register & Update Launch Creader CR419 Scanner Online?
The tool can be updated via USB cable.

Note: make sure the PC has an Internet connection.
1. Go to www.dbscar.com and download the update tool to the computer.
2. Decompress and install it on your computer (compatible with Windows XP, Windows7, Windows8 & Windows10)
3. After installation, connect one end of the USB cable to the USB port of PC, and the other end to the tool.
4. If a newer version is found, a screen similar to Fig A will appear.
5.  Launch the update tool on your PC, [Device upgrade] box will appear.
6. Choose the desired interface language and then click [Device Update] to enter update center.
7. Choose the software version and then click [Update] to start updating.
8. Once update is complete, a ‘Upgrade success’ message box will pop up. Your tool is now ready for use.


Launch CReader CR419 Code Reader Specifications:

Screen: 2.4" TFT 320*240 dpi
Voltage Range: 9-18V
Operating Temperature: 0℃~ 50℃(32℉-122℉)
Environment Temperature: -20℃~70℃(-4℉-158℉)
Dimension: 120mm*75mm*20 mm(4.7" *3.0" *0.8")
Weight: <200g(0.44lb)

Launch CReader 419 DIY Scan Tool Package Includes:

1pc x Launch DIY Scanner CReader 419 OBDII/EOBD Auto Diagnostic Scan Tool Code Reader

Launch CR419 vs. Autel Autolink AL319


Scanners	Launch Creader 419	Autel Autolink AL319
Specifications
Main Unit Display
Color Screen	2.4" TFT 320*240 dpi	2.2" TFT 220 * 176 dpi)
Operating Temperature	0℃~ 50℃(32℉-122℉)	0 to 60°C (32 to 140 F°)
Storage Tempreture	-20℃~70℃(-4℉-158℉)	-20 to 70°C (-4 to 158 F°)
External power	9-18V	8.0 to 18.0 V power provided via vehicle battery
Length/Width/Height	120mm*75mm*20 mm(4.7" *3.0" *0.8")	117 mm (4.61”) \72 mm (2.83”)\18 mm (0.71”)
Main unit Weight	<200g(0.44lb)	0.18kg (0.39lb, without wire) or 0.21 kg (0.46lb, with wire)
OBD Scan Tool Functions
Global OBD II	Yes	Yes
Manufatuer Specific DTCs	Yes	Yes
I/M Readness Status	Yes	Yes
Freeze Frame	Yes	Yes
Datastream	Yes	Yes
Data Graphing	Yes
Vehicle Information	Yes	Yes
OBDII Car Covergae	1996 to present	1996 to present
Control of the on-board system
Built-in DTC lockup	Yes
Prints data via pc
Data Record and replay
ECU Coverage
Engine	Yes	Yes
ABS System
SRS System
Visual/Audible feedback	Yes	Yes
Support & Service Features
Warranty Years Covered	2
Multilirgual Support	Yes,  English, Spanish, French, German (more language will be added)	Yes, English,Spanish, French, German,Dutch, Polish
Internet Updatable	Yes	Yes

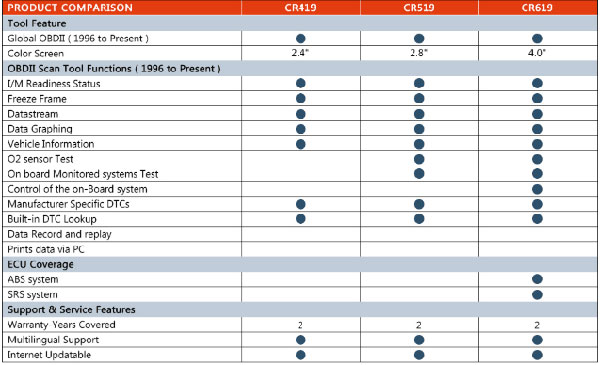

Launch CR419 vs. CR519 vs. Creader CR619
