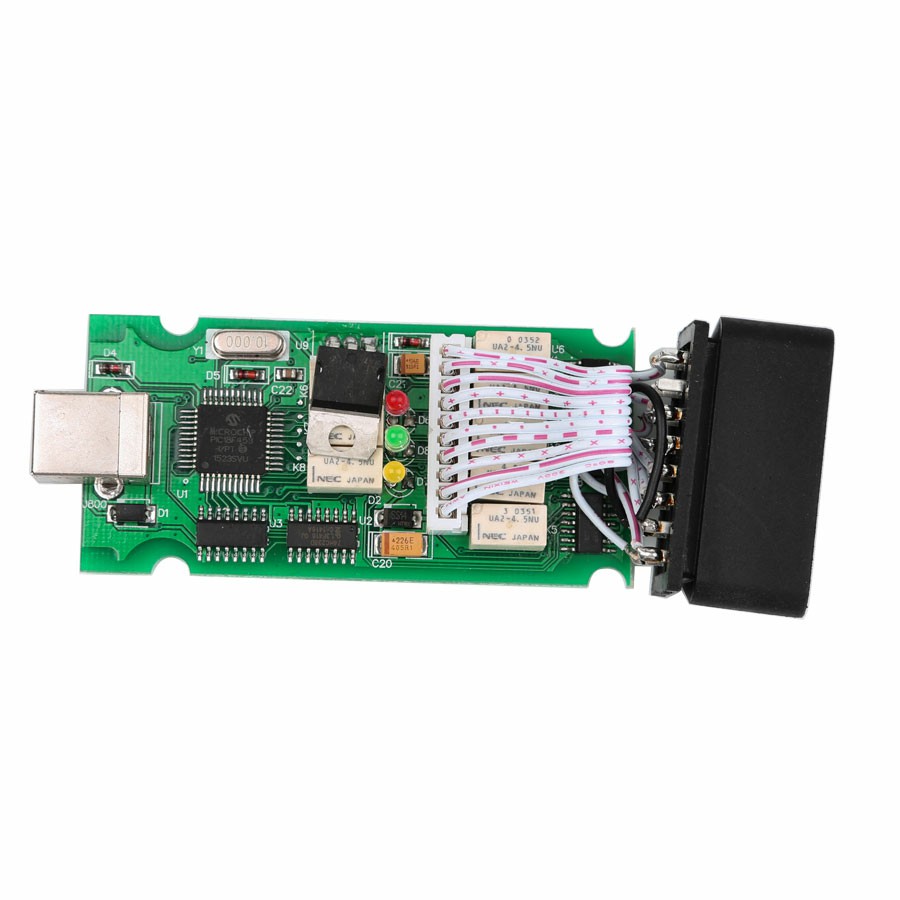

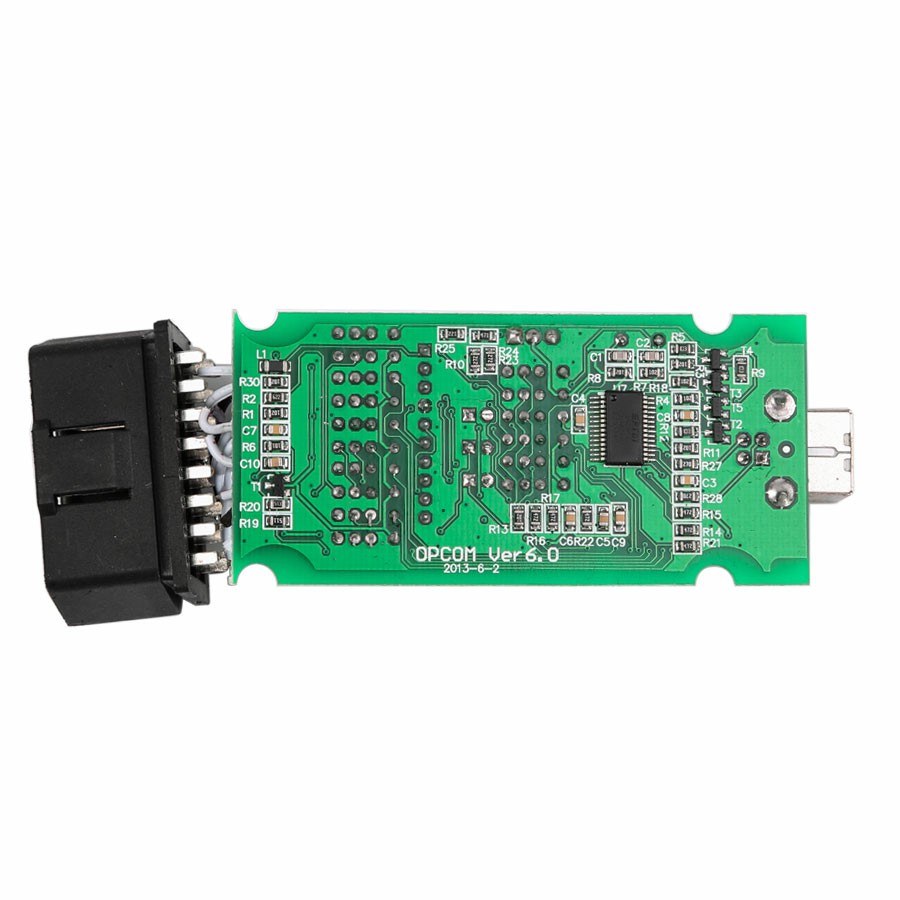

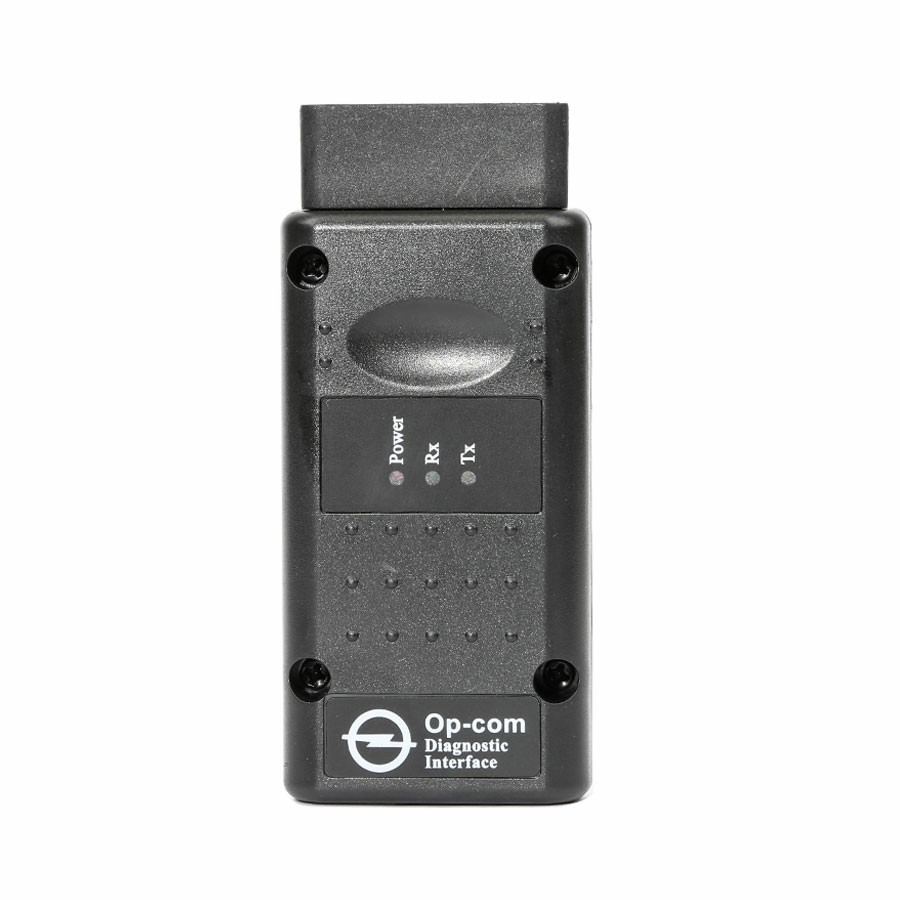

Opcom OP-Com Firmware V1.65 2010/2014 V Can OBD2 for OPEL with Dual Layer PCB

New OPCOM V1.65 Firmware 2010V Software Feature:



1. OPCOM is a special PC-based diagnostic interface especially for OPEL.

2. Software Version:2010/2014  Firmware Version: 1.65

3. DO NOT update opcom online; otherwise, the device would be damaged!



New OPCOM V1.65 Firmware 2010/2014V Software Function:



1. It covers almost all Opel cars, incl. new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

2. The program allows users to read out and clear fault codes, shows you live data and perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module,
     Instrument Cluster, Electronic Climate Control, Body Control Unit, etc.

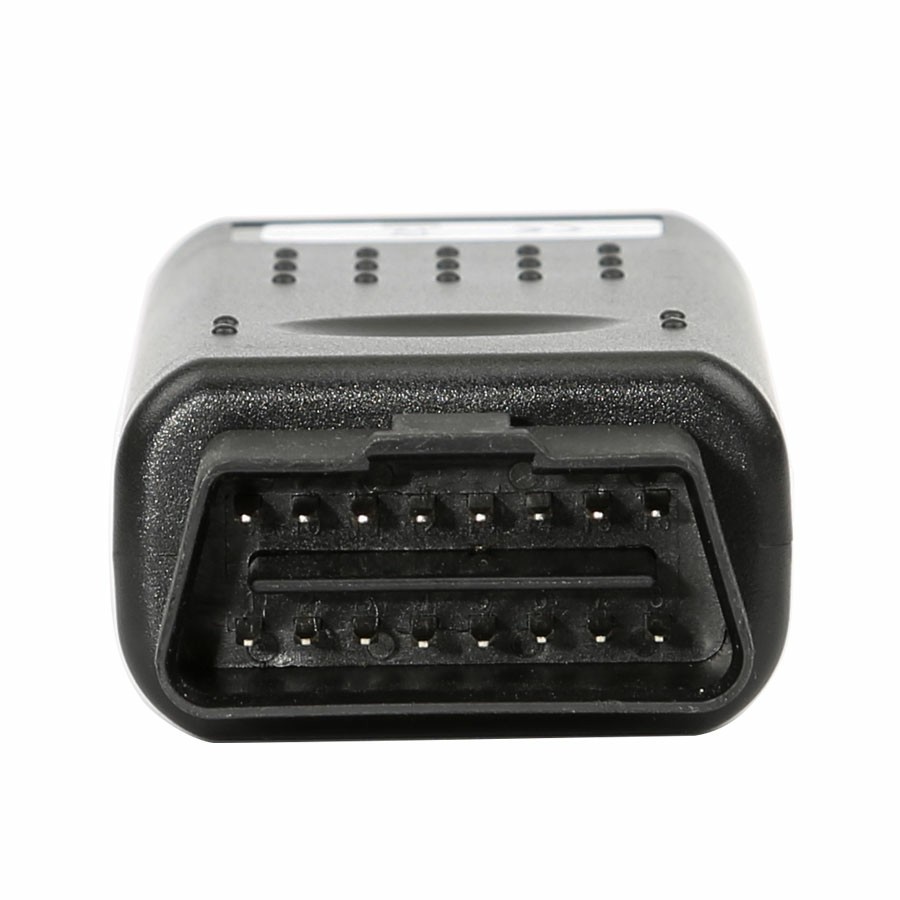

4. Since Opel cars adopt many PINs in the OBD connector, the diagnostic interface works as a multiplexer,
    and users need select the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all information available:



Full fault code text description:



1) Full status information (Present, Not present, Intermittent)

2) Users can print out, save, or copy the fault codes to any other application.
    From the fault codes window, users can go directly to the measuring blocks window.

3) The program shows measuring block information on many control module, users can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously.
    The sample rate is depends mostly on the communication protocol.
    For example, the older system like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow during communication, while the newer Multec or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!



Users can also run output tests on many controllers.



PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

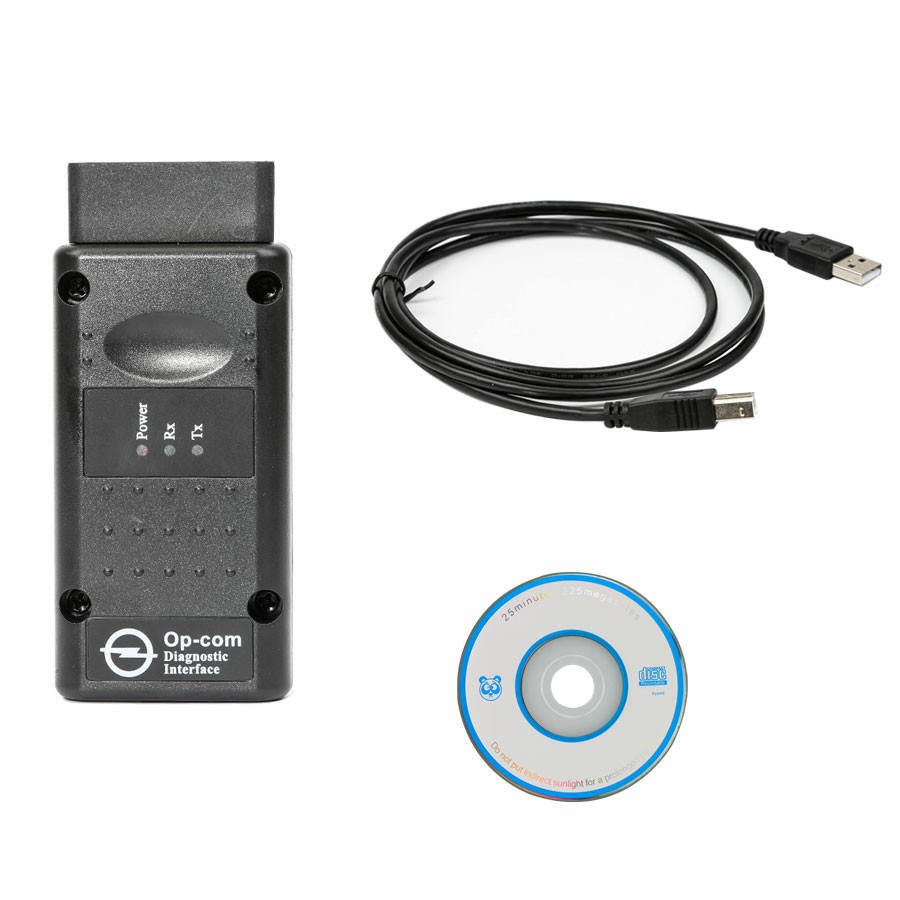

Package includes:



1pc x OP COM Interface

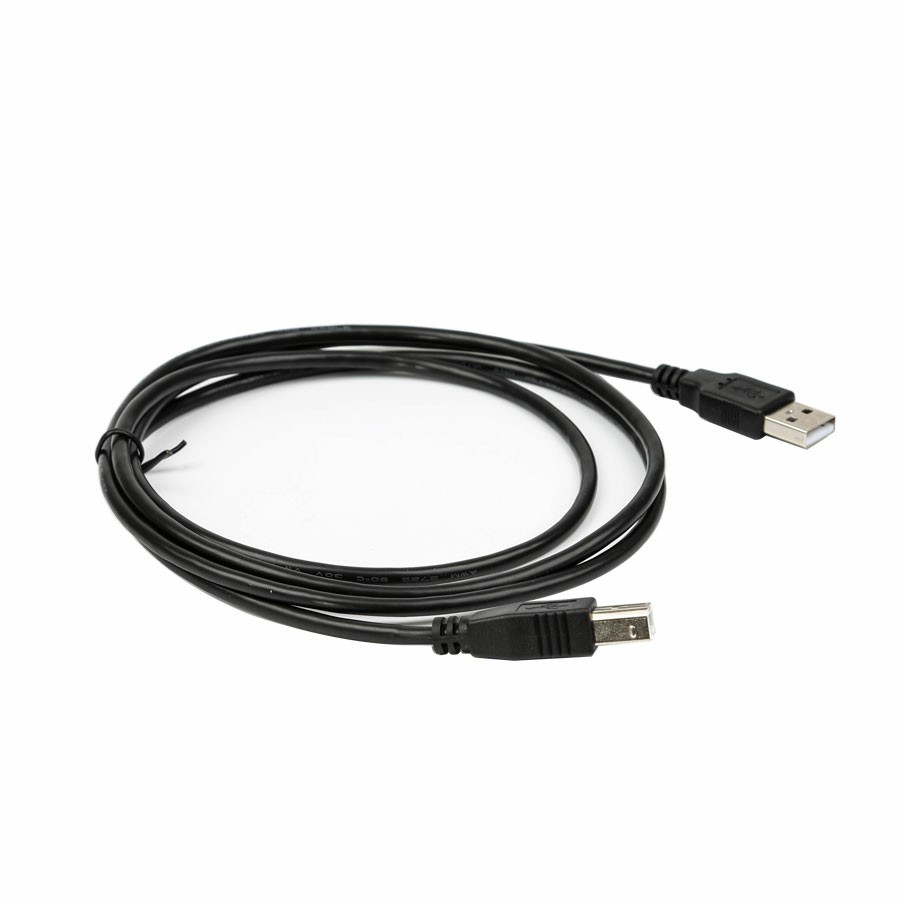

1pc x USB Cable

1pc x  Software and Drivers CD
