 Original Xhorse V3.5.0 VVDI MB BGA TooL Benz Key Programmer Including BGA Calculator Function

Xhorse VVDI MB BGA TOOL Function Introduction:



1. Support BE key, read password and prepare new key via IR.

2. NEC V051,V057 support on board get password

3. All NEC keys support on board write and erase

4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.

5. Support renew EIS and ELV

6. Support write EIS and ELV

7. Support online generate key file

8. Unlock ELV function will be released soon.

9. Renew other control modules function will support soon



Notice:

1. If you have bought Condor Key Cutting Machine ( IKEYCUTTER CONDOR XC-007 Master or  Original iKeycutter CONDOR XC-MINI ), you can buy VVDI MB BGA Tool .
2. It Supports Password Calculator Function. Each time will cost 44.99USD. It takes 4 minutes to collect data, and 2 minutes to calculate.

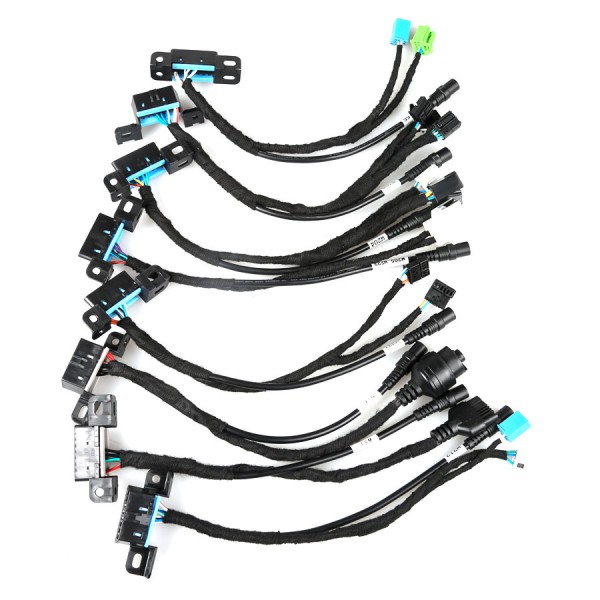

3. On March 2nd, VVDI MB Tool add these two cables: Gear lever ECU Refresh Diagnostic Cable (the first cable of the following picture) and Gearbox ECU Refresh Diagnostic Cable (the last cable of the following picture).

1. Read Write Key

1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4.  NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07, v09 (Keyless Go),v59, v61 (Keyless Go)

2. EIS Tools

1. Support read EIS data via OBD and IR adaptor
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210 (K),W215, 220 (K),W230 (K),W216,W221,W639 2009-

3. Password Calculation: support working key and lost all key

1. Password calculation can get the key password from working key and EIS(online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-

4. Prepare Key File

1. Prepare key file means prepare the key file which you will write to new key(online)
2. Prepare key file need about 20 seconds
3. Support VVDI-MB type EIS data and old Motorola EEPROM dump

5. ESL Tools

1. Support read ESL data via OBD (K-Line)
2. Support renew ESL, make 2 nd hand ESL to new one (online)
3. Support replace ESL, you can write original ESL or EIS data to new ESL
4. Support write new VIN
5. Support clear TP
6. Support auto personalized ESL, no need renew EIS
7. Support check ESL damage status
8. Support repair W204 ESL NEC chip(fatal error: 0xAA) and Motorola ESL chip
9. Support renew VVDI-MB W204 emulator

6. Renew ECU/Gearbox

1. This function support renew, write VIN, personalization operation for module ECU,Gearbox, ISM etc



VVDI MB TOOL latest software version V3.5.0 update

************************************************* *********************
*** 2017-11-21
*** Require firmware V3.5.0
************************************************* *********************
===== BENZ V3.5.0 =====
1. Attention: All user update device to firmware v3.5.0, software v3.5.0
2. Improve the success rate of erase password, the server will continue improve the database
3. New function: Menu->Other Function->Eeprom dump tool, support repair W210/W220 ISN eeprom dump
4. New function: Menu->Other Function->Read/Write EERPOM via OBDII, support read CPU eeprom from W202,W208,W210 EIS directly with KLine
5. New function: Menu->Other Function->Customer request, support communicate unit with CAN command(Professional user use)
6. Support detect EIS CPU chip from OBDII, after read EIS data via OBDII, you can get CPU chip is motorola or NEC
7. Support renew W639, W906(NEC) ESL via KLine
8. Bugfix for OBD communication with W639, W906 on the bench
9. Bugfix for erase problem in W204 ESL
10. Bugfix for IR read key hash on the motorola EIS
11. Support W209, W211 read password(from IR) under OBD mode
12. Add W251 EIS type
13. In Prepare Key File window, support save the key file in EIS folder automatically
14. Support Polish language
15. Bugfix

VVDI MB Tool V3.0.0 Update Feature:

*** 2017-05-02
*** Require firmware V3.0.0
************************************************** **********************
===== BENZ V3.0.0 =====
1. Attention: All user update device to firmware v3.0.0, software v3.0.0
2. New component released: VVDI MB Tool power adapter, contact dealer for payment
(1). Support fast mode for W204, W207 lost all key (Collect data only 18 minutes)
(2). Support W216, W164 2009- lost all key, no need insert IR adaptor for many times, save manpower
(3). Support read W164, W164 2009-, W209, W211 EIS via OBDII without gateway support
3. For the old motorola keys: Support read and write, require NEC ELV adaptor(Menu->Special Function->Old Motorola Key)
4. For some old W906, W639 EIS can not read data via OBDII, we support disable key
5. Bugfix for read v57 version password from key with NEC key adaptor
6. Bugfix

Xhorse VVDI MB TOOL 2.1.7  Update2017-01-07
Require firmware V2.1.7

===== BENZ V2.1.7   =====
1. Attention: All user update device to firmware v2.1.7, software v2.1.7
2. User manual v1.7 released, overview v1.7 released
3. BGA password calculation: bugfix for lost all key W216, W164 2009-
4. Exchange W204 ESL withou renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)
5. Activate key: Change key status from unuse to used
6. Bugfix for read v57 version password from key with NEC key adaptor
7. Bugfix

VVDI MB TOOL V2.1.5 Software Update: 2016-12-23
Need firmware V2.1.5

= = = = = For BENZ V2.1.5 = = = = =
1. Warning: All update user firmware device v2.1.5, software v2.1.5
2. Support read old type w209, w211 password via IR directly
3. Support activate blnak BGA key (0CF4)
4. Correction for data acquisition in some older version key
5. Language correction

VVDI MB Tool Update to V2.14  2016-09-12
 Require firmware V2.1.4
=====    BENZ V2.1.4            =====
1. Attention: All user update device to firmware v2.1.4, software v2.1.4
2. Support get password from w204, w207 EIS while lost all key


Support Key Types Display:



Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.



Model Support IR/OBD:

W164, W164 2009+

A166, W197,W212, W218, A246

A169, W209, W211

W172, W204, A207

W203

W204, W207, W212 only by dump

W209 only by dump

W210

W215, W220

W230

W216

W221

W906



Keys Version Supported:

v03, v06, v08

v05, v07, v09

v59,v61



Package List:




1. VVDI-MB TOOL device

2. IR adaptor

3. USB cable

4. NEC adaptor 1

5. NEC adaptor 2

6. NEC adaptor base PCB

7. K Line in OBD line

8. OBD line

VVDI Benz BGA Tool Customer Feedback:

I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU ??? -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU ??? - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU ??? - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successfulW639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK

Only support parts of HC05, HC08 motorola eis(K line),if cannot support will show error, need to remove eis get eeprom. we have tested W215 ok, but not means all W215 can support.in fact only support parts of this type.

please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password & erase password)
Write EIS data back,then Personalize W204ESL

1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok

2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.


Connection Display:

FAQ:

Q: I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect

16 12v

4+5 GND

14 CAN_L

6 CAN_H

pin 1 : ESL 1

pin 2 : GND

pin 3 : +12V (30)

pin 5 : CAN L (White)

pin 6 : CAN H (Green)

pin 7 : CAN L

pin 8 : CAN H

Can any one test?

A:Read eis via obd for W164, W169, W211, W209, require gateway connected
