 2017 New VPECKER E4 Malaysia Version Multi Functional Tablet Diagnostic Tool Wifi Scanner for Android

VPECKER E4 Language Available:

More than 22 languages available: English, Japanese, German, Russian, French, Italian, Spanish, Portuguese, Polish, Turkish, Dutch, Hungarian, Korean, Czech, Arabic, Indonesian, Persian, Thai, Vietnamese, Finnish, Swedish, Romanian, etc.
Note: It will take English by default.

VPECKER E4 Function Coverage:

Quick Test                                  Key programming
Read ECU Info.                         Oil change, Idle speed learning
Read DTCs                                Idle speed Adjustment
Erase DTCs                               Ignition timing adjustment
Clear learning value                 Camshaft timing control learning
Data Stream                               Maintenance functions
Actuations                                   ECU Initial startup
Read freeze frame data           ECU initialization
Read/Write VIN                          etc…
Basic Reset
Control unit adaptations
Throttle adaptations
Air bleeding
Level calibration
Theft alarm Reset

VPECKER E4 Product Introduction:

* Vpecker E4, android based multifunctional diagnostic tool with 8 inch tablet developed by IDUTEX, covers over 78 manufactures from Asia(China, Japan, Republic of Korea, Malaysia ), America, Europe, Australia. Featuring powerful diagnostic functions with overall special functions(resetting & coding & programming) , and professional data replay, data stream analysis for automobile repacking. It meets the customer’s requirement and would be the best choice for workshops and mechanics.
* Vpecker E4 include global version, Malaysian version, same function, supported vehicles different.

VPECKER E4 Product Features:

* 8 inch multi-touch screen.
* One key update/logging/test report/feedback/function list via WIFI.
* Automatically Wi-Fi intelligence update.
* Unparalleled OBDII functionalities-support all 5 OBDII protocols and all10 test modes.
* Extensive vehicle coverage for most US, Asian ,European and Australian vehicle makes.
* latest and wide vehicles Coverage, more makes covered to 2016 or 2017.
* Powerful diagnostic functions and coding/resetting/programming.
* Complete function including live data, ECU programming and so many others.
* Work stably and smoothly in high and low temperature environment.

VPECKER E4 Main Interface:

Hardware:




VPECKER E4 Product Specification:



Product Introduction:

* Professional diagnostic tablet with smart VCI.
* Complete function and special function.
* Easier to use with touch-screen tablet.

VPECKER E4 Product Introduction:

* OBD2 adapter can be compatible with all 16 pin vehicle.
* Online intelligence upgrade, support many intelligent way of upgrading.
* Powerful diagnostic functions covers DTC, data stream,component testing and freezeframing, coding/restting/programming ect...
* Some software realize smart intelligence of vehicle info and support test track.
* Beautiful UI interface, easy operation, good experience.
* Intelligent VCI built-in overvoltage automatic protection function, which ensures the diagnostic tool and vehicle are not  damaged by accidental damage.
* Work stably and smoothly in high and low temperature environment.

VPECKER E4 System Coverage

ME-Motor electronics
CDI-Common Rail Diesel Injection
ETC-Electronic transmission control
ESM-Electronic selector module
SBC- Sensotronic Brake Control
ESP-Electronic stability program
BAS-Brake assist
Suspension
TPC-Tire pressure monitor
Airbag
CGW-Central gateway
EIS-Electronic ignition switch
OCP-Overhead control panel
UCP-Upper control panel
XALWA-Xenon headlamp

VPECKER E4 ATA-Anti-theft alarm system

IC-Instrument cluster
ASSYST-Active Service System
SCM-Steering column module
EPS-Electrical power steering
PTS- Parktronic system
EPB-Electric parking brake
 COMAND/AUDIO
CD/DVD
TV tuner
CTEL-Cellular telephone
DCM-Door control module
ESA driver-Electric seat adjustment driver
ESA passenger-Electric seat adjustment passenger

VPECKER E4 AAC-Air conditioning

WSS-Weight sensor system
SVMCM-Special vehicle multifunction control module
etc….
Extensive system coverage, can detect all the electronic units in cars.
The data accuracy can be compete with OEM level.
The running speed and operation experience can be better than OEM equipment.
User experience and visual effect are more better than OEM equipment.

Function Button Description:



IDUTEX Store:



Extensive vehicle coverage, support over 10 thousand models.
Support Wifi upgrade automatically and one-key upgrade, simple operation.
Provide Version information, software release time and software upgrade introduction, the user can quickly understand the update content.
Provide upgrade status and download data, for users better understand the function and service condition.
Customized upgrade just for customers demand. Include car diagnostic , special function , application for car owner, product service, professional data stream analysis...ect.
Frequent upgrades which meet customer needs.

Settings:





VPECKER E4 VCI hardware architecture uses a new design with multiple protection. Interference and stability. Built-in overvoltage protection module to protect VCI and vehicle against.
It can work well and stably in high and low temperature environment.

VPECKER E4
Part name                             Specification
Processor                               ARM 32-bit Cortex processor
Input Voltage                          DC 8-16V
Operating Temperature       -10 to 70 ¡æ(14 to 158 ¨H), Relative Humidity: <90%
Storage Temperature          -30 to 120 ¡æ(-22 to 248 ¨H), Relative Humidity: <90%
Communication model       Bluetooth 4.0
Dimension                            150mm (5.91¡±) * 94mm (3.70¡±) * 40mm(1.57¡±)
Unit Weight                            NW:0.07kg (0.154lb) GW:0.166kg (0.366lb)
Protocols                                UDS, ISO 9141-2, K/L lines, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898 ISO 15765-4, High speed, Middle speed, Low speed and Single wire CAN

IDUTEX Tablet, android based multifunctional diagnostic tool with 8 inch tablet developed by IDUTEX, is humanized human-computer interface for software, extremely easy-to-use with touch-screen
operation and intuitive operation. It can work stably and smoothly in high and low temperature environment.

Part name                                Specification
Operating System                    Android 4.4
CPU                                           RK3188 quad-core,1.4G at least
RAM                                          1G DDR3
STORAGE                                32G ( 16G RAM + 16G TF Card )
WIFI+BT                                    WIFI 802.11b/g/n+ BT 4.0
Camera                                     500W AF+ Flash
Audio Output                            Adopt 8 euro 1W horn
Touch Screen                          G+G 10 Dot 38 Channel
Power Supply                          DC 12V/2A
Dimension                               225mm*174mm*24mm
Display                                     8-inch IPS, high bright full view XGA(1024x768)
Battery                                       4000mah 7.4v lithium battery
HDMI                                         Support
USB Host                                 Support
Ethernet interface                   Support

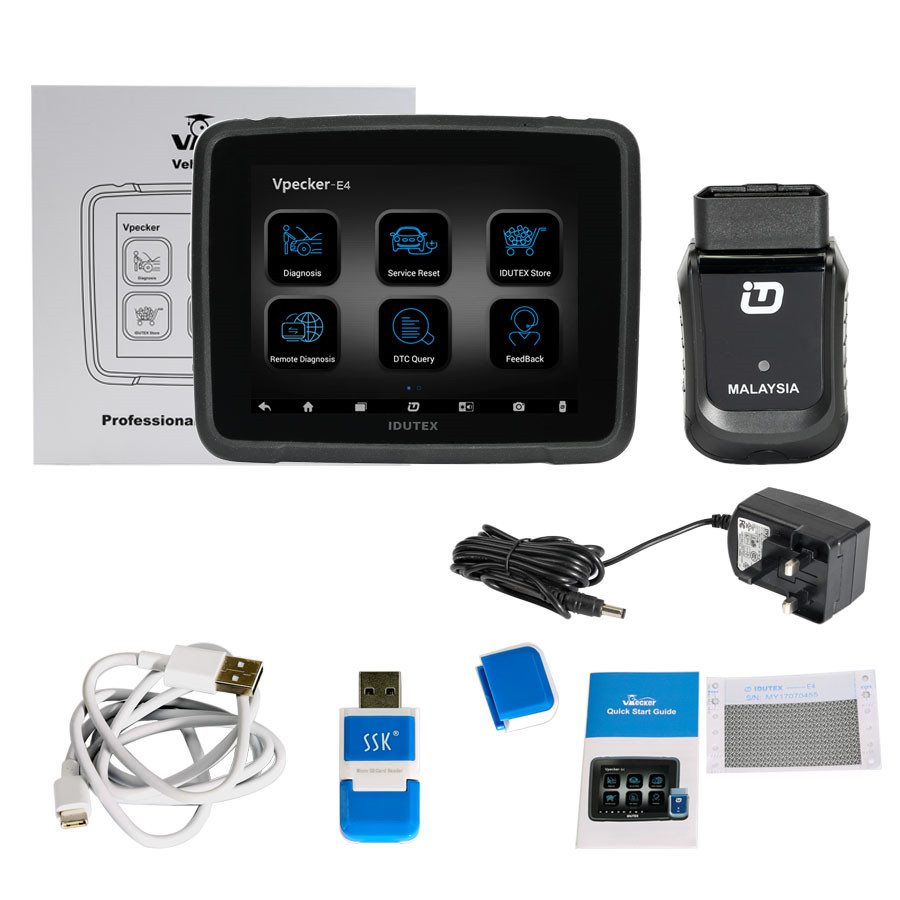

VPECKER E4  Package List:

1pc x Packing Box
1pc x Vpecker E4 VCI
1pc x Table
1pc x 12V Charger
1pc x Qulck Start Gulde
1pc x Password Envelope
1pc x USB Cable
1pc x Card Reader
1pc x 16g TF card
