OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version

OBDSTAR X300 DP Plus is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

Free Update Online for one year, after one year, it will cost $285 per year.

OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version Functions:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

OBDSTAR X300 DP Plus Hardware Features:

1. The built-in VCI box offers more stable communication.
2. The 8" touch screen offers better vision experience.
3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.
4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve
6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
9. Adds the clip for reading SOP 8PIN EEPROM.
10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

OBDSTAR X300 DP Plus Software Features:

1. Clone ECU
Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.
When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won't need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.
ECU clone Pros :
No need to go to 4S shop, convenient, fast and save money.
Simplify the operating steps, even the amateur can also operate.
No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.

2. Switch activation function
Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

3. Adds the "Help" function including the testable car models, update notice, special features, help instruction, wiring diagram etc.
Testable car models: The user can read the testable car models and year.
Update notice: The user can read all of the update content.
Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
Help instruction: Built-in the guide and instruction for each car model or function.
Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.

4. Maintenance database: equipped with powerful database.
5. Video center: large amount of videos help users to operate device easily.
6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
7. System setting: set VCI formation, language, unit, data logging, user information etc.
8. Remote assistance: achieve remote assistance by this function.
9. Report center: record maintenance data logging and create reports during operation.
10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection

OBDSTAR Update Information:
OBDSTAR X300 DP Plus Update 04.30.2019
IMMO
Renault
1.Increased Kwid 2018 key programming
2.Increased Fluence 2012 blade key programming
3.Increased Master 2008- key programming (No Need Pincode)
4.Increased Trafic 2014- key programming (No Need Pincode)
5.Increased Twingo 2014- new version key programming (No Need Pincode)
6.Increased Logan 2014- new version key programming (No Need Pincode)
7.Updated Clio IV key programming and operation guide
8.Updated Espace/Megane/Talisman/Scenic 2015 key programming procedure
9.Optimized Megane 4 2015-/Espace 2015-/Scenic 2016- generate dealer key procedure
10.Optimized Talisman 2015- key learning and generate dealer key and algorithm

Dacia
Increased Sandero 2017 key programming

Senia
1.Increased the help index
2.Increased EV smart key system
3.Increased R7 IMMO system and smart key system
4.Increased R9 IMMO system and smart key system

Peugeot/Citroen/DS
1.Increased Citroen C4 IMMO system type 2
2.Increased CITROEN BERLINGO key programming
3.Optimized key programming type2
4.Optimized Peugeot 508 programming prompt
5.Optimized Peugeot 207 key programming failure
6.Optimized N0X display ‘LOCK’in Pincode reading
7.Optimized BOSCH ME7.4.4/ME7.4.5 all keys lost Pincode reading

Changan
1.Increased Auchan A800 BCM
2.Optimized Changan X70A BCM
3.Optimized the software frame, display menu after entering system

VW/AUDI/SKODA/SEAT
1.Increased VW Magotan add and erase remote function
2.Optimized key learning and remote programming failure
3.Optimized Johnson Controls automatical recognization problem
4.Solved part of VW Magotan models 46 central control system remote programming failure
5.Optimized VW Magotan/CC key learning function
6.Optimized Audi A6L/Q7 8E chip generate dealer key function

Maserati
Optimized 2016- Maserati smart key IMMO data reading function

Chrysler
1.Increased 300C 2009-2011 PinCode Reading via OBDII
2.Increased RAM 2009-2012 PinCode Reading via OBDII
3.Revised the menu structure: list models according to district
4.Increased GRAND CHEROKEE 2009-2013 PinCode Reading via OBDII

BMW
Resolved the ISN reading failure in part of new cars
Land Rover
Removed the help information of 2015- write starting smart keys

Ford
1.Optimized -2017 Kuga
2.Increased 2017- Transit IMMO function
3.Optimized Carnival 2002-2008 and 2009-2012

Chery
1.Increased S32 (EV) remote system
2.Increased Tiggo 3XE remote system
3.Increased Arrizo 5E/7E remote system
4.Increased Arrizo 5E smart key system(type 4)
5.Increased Karry K50 electric car remote system
6.Optimized software structure, display the menu after entering system

GM
1.Increased the manual selection in Pincode reading from BCM system
2.Optimized the procedure of Pincode reading from BCM (prompt BCM type before Pincode reading)
3.Optimized software structure, display the menu after entering system
4.Optimized Chevrolet Cruze 2017- blade key programming procedure

SMART
Optimized BR451 type key programming function
Trumpchi
Optimized software structure, display the menu after entering system

Zotye
1.Optimized Zotye Z300 remote programming
2.Optimized Zotye T600 Naen smart key system
3.Optimized software structure, display the function menu after entering the system

Geely
1.Increased EC7 chip key online Pincode calculation
2.Increased GX7 (smart key) online Pincode calculation
3.Increased GX7 chip key online Pincode calculation
4.Increased GX9 (smart key) online Pincode calculation
5.Increased GX9 chip key online Pincode calculation
6.Increased Vision X1/X3/X6 online Pincode calculation
7.Increased Jingang SC6 online Pincode calculation

Enranger
Increased Enranger 737 IMMO system type 2

Cluster Calibration
FORD
1.Increased in 2018 F250 the 6&14 pin communication
2.Optimized 2018 F250 security algorithm procedure

GM
1.Increased 2017- Corvette Sport
2.Optimized 2017- Malibu cluster calibration, increased security algorithm scan

Oil Service Reset
Increased Porsche 2018- Panamera and Cayenne

EPB
New Increased:
BAIC Hyosow: H5/S7

BYD:
Qinshuangguan(2015-2016)/Qing(2017)/Tang(general version)
Tang(2017)/Song DM/Song EV/Song MAX/Song (fuel version)
Song (2017 fuel version)/Surui/Yuan (fuel version)/E6H/G6/M3/S7/T3
GAC Trumpche:
GA3S PHEV/GA4/GA5/GA6/GA8/GE3/GS3/GS4 2018/GS4 PHEV
Roewe: i6/ei6
Shanghai GM:
BUICK:
New Lacrosse 2017-/Envision 2015-2018/
Verano 2016-2018/Velite_5 2017/Velite 2018
CADILLAC: CT6 2016-2018/XT5 2017-2018
CHEVROLET:
Malibu 2016-2018/Springo EV 2014/Camaro 2017-2018/Equinox 2018
GM:
BUICK:
Envision 2016-2018/Enclave 2014-2017/Enclave 2018/
Cascada 2016-2018/Regal 2016-2018

CADILLAC:
XT5 2017-2018/CT6/ATS 2017-2018/CTS 2017-2018/
Escalade 2014-2018

CHEVROLET:
Spark 2016-2018/Corvette 2017-2018/Camaro 2010-2018/
Malibu 2017-2018/Volt 2016-2018/Caprice/Cheyenne/Colorado/
Cruze 2016-2018/Equinox/Express/Lumina/SS/Suburban/Tahoe/
Orlando 2013-2018/Lmpala 2014-2018/Traverse 2014-2017/
Traverse 2018/Silverado 2014-2018
Volvo: S90 2017-/S90L 2017-/XC90 2016-2018/V90 2017-
Ford: Kuga 2017-2018
Hyundai: IONIQ Electric(AE EV) 2017-2018
Nissan: newly developed

Tablet Display Procedure
Optimize the UDS protocol flow control frame resolution processing.

APK Software
Optimized the flashback when entering diagnosis from IMMO in some cases



OBDSTAR X300 DP Plus Update 04.23.2019
Chrysler [V31.01] Upgrade
Increased 300C 2009-2011 PinCode Reading via OBDII
Increased RAM 2009-2012 PinCode Reading via OBDII
Increased GRAND Cherokee 2009-2013 PinCode Reading via OBDII

Update 04.04.2019
Oil Service Reset [V32.11]
Increased 2018- Porsche Panamera and Cayenne

Maserati & Renault IMMO Upgrade 04.01.2019
Increased 2016-RFHUB IMMO data (25640/9560) reading via OBDII(No need pincode)
Increased 2014-TRAFIC Key Programming
Increased 2008-MASTER Key Programming
Increased 2014-LOGAN new version key programming
Increased 2014-TWINGO new version key programming

Upgrade on 03.20.2019
IMMO UPGRADE:
Maserati 2016 Smart Key System
Chevrolet Colorado Hour 2017 Smart Key System
Chevrolet 2017-2018 Colorado Smart Key System

Cluster Calibration Upgrade:
Bentley Mulsanne 2012
Chevrolet Colorado 2018
Chevrolet Colorado Hour 2017-

Latest Cluster Cablibration Upgrade on 12.03.2019
Auid:
A6(A6L) 2012-
A7 2010-
A8(A8L) 210-

Ford:
F250 2017/2018
F350 2018
F450 2018
F550 2018
FUSION 2013/2016/2017
NAVIGATOR 2017
FUSION HYBRID 2017
MUSTANG 2015
Lincoln MKZ 2017
C-MAX 2016
ENDEAVOUR 2015 SC667351+93C86
POLICE INTERCEPTOR 2016

Latest Cluster Cablibration Upgrade on 28.02.2019
Land Rover:
Evoque 2015-
Discovery 4 2016-
Range Rover Sport 2016 (with pointer)

Jaguar:
XE series 2016
XF series 2015-

Upgrade on 16.01.2019
Ford:
Transit 2014-remote programming

Mazda:
CX4 2018 smart key system
Atenza 2018 smart key system

GM:
Cadillac 2017-CT6 smart key system/Cluster calibration
Cadillac 2017-XT4 smart key system/Cluster calibration
Chevrolet 2017-Corvette smart key system/Cluster calibration


OBDSTAR X300 DP Plus vs OBDSTAR X300 DP PAD:

OBDSTAR X300 DP Plus have back holder,it can work separately without VCI and Charged by OBD2.
4 Toyota emulators
P001 programmer
Wiring harness for new functions,such as ECU cloning and switch activation
ECU clone switch activation function
Help function-covers built in support car list,upgrade announcement,help notes and wiring diagrams
No need pay for software update ofr free during the valid time (one year)


OBDSTAR X300 DP Plus Software Update Instruction:

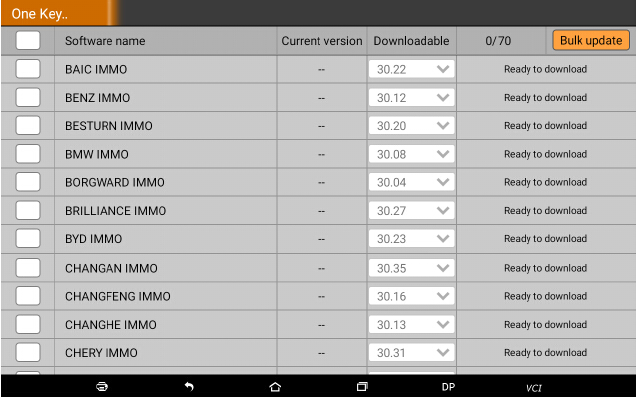

Tap "One Key Upgrade"  to enter one key upgrade page, as following picture shown:



Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:

Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package:

Functions	Regional market	Software Configuration	X300 DP plus			Remark
			A package	B package	C package
Immobilizer / Remote programming	European cars	VW/Audi/Skoda/Seat (Standard)	√	√	√
		VW/Audi/Skoda/Seat (Advanced)	√	√	√	add NEC 24C64 2014-key programming.
		BMW (Standard)
		BMW (Advanced)	√	√	√	Add FEM/BDC key programming, ISN code reading etc.
		Volvo	√	√	√
		The other European cars	√	√	√
	Asian cars	Hyundai /Kia (Standard)
		Hyundai /Kia (Advanced)	√	√	√	Add 47/8A/46 smart key pin code reading
		Toyota /Lexus (Standard)
		Toyota /Lexus (Advanced)	√	√	√	For Middle east cars, it adds H chip all keys lost (Immo box reset)
		The Asian cars	√	√	√
	North American cars	Ford(Standard)
		Ford (Advanced)	√	√	√	Add Ford after 2015 key programming functions, I.E: Mobdeo,Edge,Taurus,Escort,EVEREST,Explorer,F-150 SVT Raptor,Mustang,Lincoln MKZ, MKC and Continental 2015 - etc.
		GM(Standard)
		GM(Advanced)	√	√	√
		The other American & Chinese cars	√	√	√	Can perform BMC pin code reaing on these cars: -2017 Lacrosse,Lacrosse, Trax,Envision, GL8,MALIBU,AVEO,Excelle before 2015,Cruze etc.
Cluster Calibration		All cars cluster calibration		√	√
		4-system diagnosis				Engine, Transmission, ABS, airbag reset
OBDII Diagnosis		Full functions diagnosis			√	Full-system all-cars diagnosis
Special function		Oil service reset			√	Reset the Oil Service Light on
		Manual remote setting				Some cars only supports manual remote setting.
		ABS bleeding			√	After replace the ABS pump and related components.
		Battery matching			√	After the battery is changed, you need to match the battery.
		ECU programming			√
		The car with EPB replace brake pads			√	Electronic Parking Brake release
		Throttle programming			√	Used to clear the learning value after cleaning the throttle, otherwise it will cause high idle speed.
		Airbag reset			√	Used to clear airbag ECU collision data after a vehicle collision, otherwise the ECU cannot be reused
		TPMS reset			√	Used for reset after tire pressure alarm
		Steering angle reset			√	Replacement of data lost after steering angle change or power off
		OBDII Engine			√	Used to diagnose the car with OBD protocol.
		DPF Regeneration			√	Diesel Particulate Filter Operational
		Injector coding			√	Used to match and code the injector after replacement
		Suspension match			√	Used to match and set the suspension after adjusting.
		Gear learning			√	Used to learn the crankshaft position sensor after power off (only the domestic vehicle equipped with the Delphi system has this function)
		CVT learning			√	Used to reset the learning value after maintenance of CVT transmission
		EEPROM			√	Read and write the eeprom; read 8-pin IC chip password and reset some models anti-theft
		Key Renew			√	Renew the used keys to solve the problem that used keys cannot be matched to other models
		Steering angle repair			√	Used for the repair of lost data of vehicle steering angle sensor
		ECU Clone			√	Used for copying the program when replacing the new/second-hand computer.
		Switch activation			√
Hardware		P001 Programmer unit	√	√	√
		C001 circuit board	√	√	√
		C002 circuit board	√	√	√
		W001 data cable	√	√	√
		W002 data cable	√	√	√
		W003 data cable	√	√	√
		Toyota smart key emulators	√	√	√
		Remote Tester	√	√	√
		Anti-theft Induction coil	√	√	√	Used to test if the coil can send out the transmit signal.



OBDSTAR X300 DP Plus Technical Parameter:

 ● Operation system:                                   Android 5.1.1
 ● CPU:                                                         Exynos4418  Dual Core ARM Cortex A9 1.4GHz
 ● Battery:                                                    3700mA, rechargeable polymer lithium battery
 ● Extension memory card:                          32G Micro SD (TF) card supported
 ● Memory capacity:                                    1GB
 ● Storage capacity:                                     32GB
 ● LCD:                                                          8.0 inch
 ● LCD resolution:                                        1280*800
 ● Touch screen:                                           Capacitive touch screen
 ●  Camera:                                                   5 mega rear view camera
 ● Wi-Fi:                                                        Supported
 ● Working temperature:                             -10℃  ~  55℃（14℉  ~  131℉ ）
 ● Storage temperature:                              -20℃  ~  70℃（-4℉  ~ 158℉ ）
 ● Weight:                                                     about 1.0 Kg
 ● Dimension:                                               254mm*174*mm*35mm

OBDSTAR X300 DP Plus X300 PAD2 Package List:

 Key Master DP Plus Unit
 Main Wire
 12V2A DC Charger
 KIA-20
 OBD II-16 Connector
 HONDA-3
 HYUNDAI/KIA-10
 IMMO Induction Coil
 Muti-functional Jumper
 P001 Programmer Unit
 C001/C002 Circuit Board
 W001
 W002
 W003
 RT100
 TOYOTA Simulation Smart Keys
 Configuration List/Certificate/Quick Start Guide Fold

Contact Information:

Whatsapp: +1 937 888 0032

Live Support: Chat with us online

E-mail: sale@obdtools.net

Skype: jansonsh@hotmail.com

If you have any problem, please do not hesitate to contact us.
