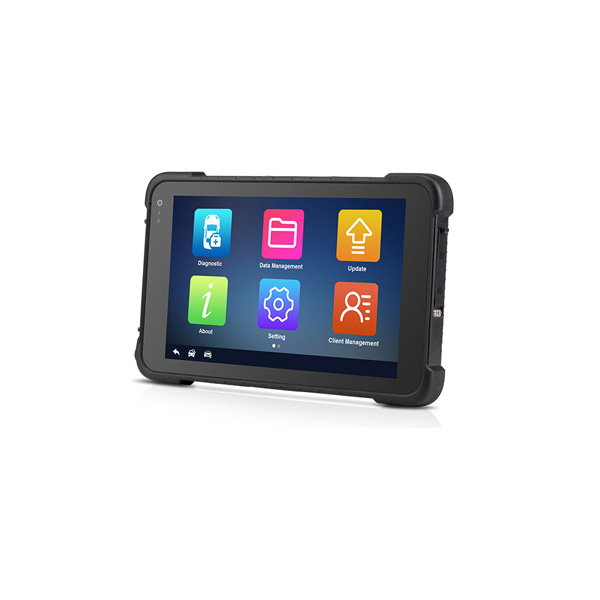

Original Vident iSmart900 Automotive Diagnostic & Analysis System

Vident iSmart900 is a IP65 rated, windows tablet based scan tool featured with intuitive user interface, sophisticated diagnosis, wide vehicle coverage, advanced graphing, bi-directional component tests, component calibration, module coding and programing. It utilizes a 8“ high resolution IPS LCD touch screen (1280 x 800), a secure, solid-state 32GB hard drive and a Intel Quad-core processor that delivers boot-up in less than 30 seconds, the multitask-capable windows 10 Operating System to offer you the best intuitive user interface and user-customizable configuration. With an unusual combination of sophistication and simple operation, iSmart900 is suited to any tech—from rookies to seasoned diagnostic specialists.

Vident iSmart900 Software Features:
  • Complete capabilities for codes,live data,freeze frame,functional tests,ECU information and coding for dozens of vehicle system etc.
  • OEM-specific coverage for over 80 American,European and Asian makes from 1996 to 2017
  • Automatic VIN identification for easy vehicle communication
  • System Detection-detects only the systems that are specific to your vehicle and reads for error
  • One-toch vehicle code Auto scan and clear quickly checks and clear codes for all available modules on the vehicle.
  • Ability to record all available live data parameters and graph any four on screen at once
  • Study and compare mode of Live data-real time data can be compared against known good measurements
  • Direct Access to the most common required special functions such as oil service,EPB,ABS & SRS BCM/SIR setting etc.
  • Comprehensive data manager that can store thousands of vehicle records,customer data,vehicle IDs,fault codes,repair notes and diagnostic results
  • Interactive Data Logging sessions and remote control enable direct contact with Vident Technical
  • Support for first-hand bugs troubleshooting
  • Hight compatibility windows operation system for more applications such as oscilloscope,video scope,OE technical data.
  • Three year free diagnostic softwaer update.

Vident iSmart900 Hardwear Features:
• 8" high-resolution 1280x800 capacitive touch screen for a detailed view IP65 Rated tablet
• Front and rear built-in camera to save and share photos for your repair records dirtproof
• Wireless Bluetooth communication with vehicles within up to 70~100meters working range dirtproof
• Dual band WIFI to access your favorite web resources dirtproof
• Built-in rechargeable lithium-ion battery for up to 10 hours of continuous operation dirtproof
• USB, audio, HDMI and auxiliary ports make it easy to connect accessories dirtproof
• Secure, solid-state 32GB hard drive and Intel Quad-core processor
• Built-in 3G SIM card slot allowing internet access even on the move
• With GPS Location module
• TF card slot for extensive memory

Vident iSmart900 Window Tablet Overview:

1. Scan Button –（Scanning is not available on this device）.
2. Lock/Power Button –Turns the device on & off with long press, or locks the screen
with short press
3.Volume Up
4.Volume Down
5. Front-Facing Camera
6. Headset jack
7. HDMI (high-definition multimedia interface) Port
8. Micro USB port
9. USB 2.0 port
10. SIM card tray
11. TF card tray
12. DC/AC power jack


VIDENT iSmart900 Functions:

Diagnostics - complete capabilities for codes, live data, freeze frame, functional tests, ECU information, adaptation, matching, and coding for dozens of vehicle systems
Service Functions - performs variety of most common service functions including oil service and mileage interval reset, EPB, ABS & SRS, BCM/SIR seting, DPF regeneration, throttle body alignment, steering angle sensor calibration, battery configuration, etc
Fast Diagnostics- Automatic and manual VIN identification for easy ECU accessibility. One-touch Auto scan with read and quick erase-codes options and automatic vehicle-specific system detection, meaning you won't have to waste time scanning through data that is not relevant
Live Data - Customised text and graph live data with ability to record all available live data parameters and graph any four on screen at once.
Study and compare mode of Live data - real-time data can be compared against known good measurements
Data Manager - Comprehensive data manager that can store thousands of vehicle records, customer data, vehicle IDs, fault codes, repair notes and diagnostic results
Data Logging - Interactive Data Logging sessions and remove control enable direct contact with Vident Technical

Vident iSmart900 Specifications:

Operating system:	Windows 10 home
Processor:	Intel Baytrail-T (Quad-core), Z3735F, 1.33GHz-1.92GHz
Memory:	2GB RAM & 32GB ROM
Display:	8.0", 800 x 1280 IPS LCD touch screen
Connectivity:	WIFI 802, 11 (a/b/g/n) frequency 2.4G + 5.8G dual band WIFI Bluetooth 4.0 TF card slot (support SDHC/SDXC, maxium 128G) USB 2.0 interface, 1.4a Type C HDMI
3G Frequency:	WCDMA (900/2100MHz), GSM (900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface
GPS:	U-blox NEO-7 (support GLONASS, QZSS, GPS), Capture sensitivity of -160dBm, frequency of 0.25Hz ~ 10 MHz
Touch Panel:	Multi-points capacitive, G+G, Rigidity of above 7H-Anti-scratch, TP thickness of 1.1mm, COF, support handwriting
G-sensor:	Gravity acceleration sensor
Rear Camera:	5:0MP
Front Camera:	2.0MP with indicator light
Audio Output/Input:	3.5mm diameter standard earphone jack, output resistance of 2.2kOhm
Power and Battery:	3.7V/8500mAh polymer Li-ion battery
Input Voltage:	DC/12V (9 ~ 35V)
Operating Temperature:	14 to 131℉
Storage Temperature:	-4 to 158℉
IP Rating:	IP65
Dimensions (W x H x D):	21.26" x 15.35" x 5.11"
Weight:	12.63lb



Vident iSmart900 Package Includes:

iSmart900 Main Unit
Bluetooth scanner module
Mercedes Benz 38pin Adapter
PSA 2pin Adapter
Fiat 3pin Adapter
GM/Daewoo 12pin Adapter
DMW 20pin Adapter
Kia 20pin Adapter
Mitsubishi/Hyundai 12+16pin  Adapter
Nissan 14pin Adapter
Honda 3pin Adapter
Toyota 17pin Adapter
Toyota 22pin Adapter
Mazda 17pin Adapter
Audi 4pin Adapter
AC/DC Power Adapter (12V)
Diagnostic Cable
User Manual
Carrying Case
Clip Cable
CD
Cigarette Lighter
