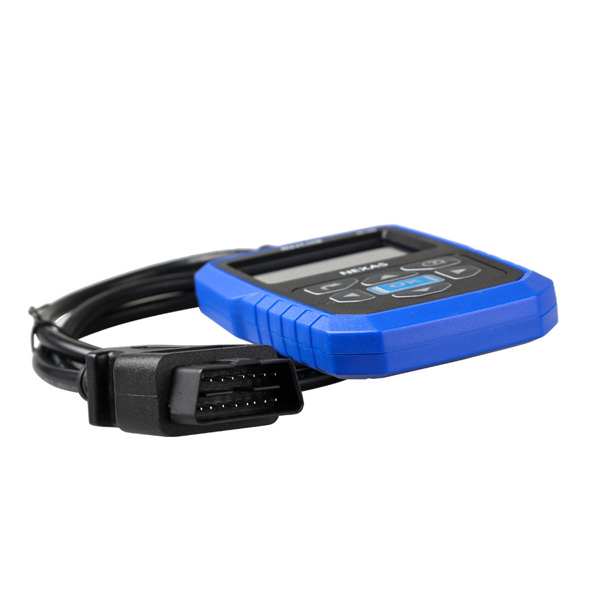

NexLink NL102 Heavy Duty And OBD/EOBD+CAN Diagnostic Tool
The NexLink NL102 HEAVY DUTY diagnostic scanner from NEXAS supports all heavy duty trucks in compliance with standard protocols ( J1587，J1939 and J1708)
Features
1.Vehicles Coverage: Cummings, Detroit, Caterpillar, Freightliner, International, Kenworth, John Deere, Peterbilt, Sterling,
Mack, Paccar, Westernstar, Mecedes Benz, Volvo, Scania, Man, Renault, ERF, Foden, Seddon-Atkinson, Iveco, DAF,
SISU, STEYR, ISUZU; Cars /min vans / light duty from 1996
2.Supported ECUs: engine, transmission, instrument panel, drivetrain, braking system, suspension, ESP, EPS, fuel system and etc
3.Support all heavy duty trucks in compliance with standard protocols ( J1587, J1939 and J1708)
4.Work on all cars, mini vans and light duty vehicles (OBDII & CAN) from 1996 on and latest – European, American and Asian
5.Support all OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000
6.Uniquely featured with battery power monitor function
7.Troubleshooting tips guide technicians to the root of problems faster, saving diagnosis and repair time
8.Read and erase generic codes (P0, P2, P3 and U0), manufacturer specific codes(P1, P3 and U1) and pending codes
9.Easily determine the cause of the Check Engine Light(MIL) and turn off Check Engine Light (MIL), clear troubles codes and reset monitors
10.Display DTC definition, freeze frame data, monitor and I/M readiness status (emissions) and vehicle information (VIN, CIN and CVN)
11.Read live O2 sensor test data
12.Read PCM live data stream with graphic data Display
13.Enhanced OBDII Mode 6
14.Multilingual menu and DTC definitions – English, Spanish and French, etc.
15.Software upgrade via internet
Specifications
Display: 2.8’’ TFT color display (320*240)
Supported Protocols:
J1587, J1939, J1708, CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000
Working Temperature: 0°---60° （32---140° F）
Storage Temperature: -20—70° （-4—158° F）
Input Power: 8—30 Volts by vehicles battery
Dimensions: 255*190*70mm
Weight: 750g
Qty/CTN : 20
Weight/CTN ：15.5Kg
CTN/Meas: 530*370*390mm
Package Includes:
1pc x NL102 Main Unit
1pc x Nl102 User Manual
1pc x USB Cable
1pc x 9PIN Connector
1pc x 6PIN Coonector
1pc x Protective Nylon Case
