Original Launch X431 V+ HD3 Wifi/Bluetooth Heavy Duty Truck Diagnostic Tool

Launch X431 V+ HD3 is a modified version of the multi-brand scanner Launch X-431 Pro which, in its new edition, received a more powerful tablet and a diagnostic function for heavy duty vehicles. The device includes all the advantages of the Pro series and is presented with advanced diagnostic algorithms that allow you to quickly and deeply test the car. The complete set HD - is intended for trucks diagnostic.

The HD package is a set of Launch x431 V+ plus the diagnostic module of trucks Launch HD Box 3.0, it turns out cheaper than buying everything separately.

Launch X431 V+ HD3 is a brand new advanced automotive fault diagnostic tool based on Android system. It passes on Launch advantages in automotive fault diagnostic technology, such as wide Car and Truck model coverage, powerful function, abundant special function and accurate test data, etc.

X-431 V+ and HD3 achieves full diesel truck model and full system fault diagnosis through the Bluetooth communication between Data Link Connector (DLC) and smart mobile terminal.

How to Activate X431 HD3 & Download Software:

If you had a diagnostic tool of 12V passenger car configuration and intend to extend the diagnostics of commercial vehicles, follow the steps described below to activate the HD III:
Note: Please make sure that the diagnostic tool is properly connected to the Internet before proceeding this step.

1. Launch the application, and log in the system using the existing user account of
Passenger Vehicle Configuration, and then tap “Personal Center (or )” -> “Activate VCI (or “Activate Connector )”.
2. Input the Product S/N and Activation Code, which can be found in the supplied Password Envelope, then tap “Activate” to activate the HD III.
3. Tap “Update” to enter update center, tap “Update” to download and install the diagnostic software of Commercial vehicles.
4. After the software download is complete, a new “Heavy-duty” tab will appear on the Diagnostic main menu screen.

Launch X431 V+ HD3 Software list:

1  X431, USA FORD Diagnostic Software diesel
2  After the X431, heavy card processing system diagnostics software
3  ASTRA diagnostic software
4  Benz heavyduty diagnostic software
5  Bosch diesel diagnostic software
6  BREMACH diagnostic software
7  China heavyduty diagnostic Software
8  Cummins heavyduty diagnostic software
9  DAF diagnostic software
10  ERF diagnostic software
11  FAW Liberation diagnostic software
12  Foton Auman diagnostic software
13  FUSO diagnostic software
14  Hino diagnostic software
15  Hyundai heavyduty diagnostic software
16  Isuzu heavyduty diagnostic software
17  Iveco heavyduty diagnostic software
18  JAC heavyduty diagnostic software
19  Mack heavyduty diagnostic software
20  MAN diagnostic software
21  OBD heavyduty diagnostic software
22  SCANIA diagnostic software
23  Shangchai diagnostic software
24  Volvo heavyduty diagnostic software
25  WP diesel diagnostic software
26  X431, Airbus diagnostic software
27  X431, ALLISON transmission box diagnosis software
28  X431, Ashok Rejlander the diagnostic software
29  X431, Caterpillar heavy vehicles Diagnostic Software
30  X431, Chai heavy vehicle diagnostic software
31  X431, Chaoyang Diesel diagnostic software
32  X431, construction machinery diagnostic software
33  X431, CREDO heavy vehicle diagnostic software
34  X431, DETROIT engine diagnostic software
35  X431, Dongfeng commercial vehicle diagnostic software
36  X-431, Dongfeng Yufeng diagnostic software
37  X431, Freightliner heavy-duty truck diagnostic software
38  X431, full diesel diagnosis software
39  X431, HD ABS system diagnostic software
40  X431, hd_goldendragon diagnostic software
41  X431, hd_international vehicle diagnostic software
42  X431, HD_TATA diagnostic software
43  X431, hd_western_star vehicle diagnostic software
44  X431, heavy truck presentation software
45  X431, heavy vehicles Jiangling diagnostic software
46  X431, IRISBUS heavy vehicle diagnostic software
47  X431, IRIZAR heavy vehicle diagnostic software
48  X431, NEOPLAN heavy vehicle diagnostic software
49  X431, Renault diagnostic software for heavy vehicles
50  X431, SETRA heavy vehicle diagnostic software
51  X431, SITCAR heavy vehicle diagnostic software
52  X431, Stannic bavin diagnostic software
53  X431, Sterling heavy vehicle diagnostic software
54  X431, Sunlong bus ( SUNLONG ) diagnostic software
55  X431, sunwin bus ( SUNWIN ) diagnostic software
56  X431, UD Trucks 2F Nissan Diesel Diagnostic Software
57  X431, Yang Chai engine diagnostic software
58  X431, Zhongtong bus ( ZHONGTONG BUS ) diagnostic software
59  X431,BONLUCK diagnostic software
60  X431,HD_KENWORTH deagnostic software
61  Yuchai diagnostic software

Launch X431 V+ HD3 FAQs:

1.Communication error with vehicle ECU?
Please confirm:
1) Whether the VCI is properly connected.
2) Whether the vehicle ignition switch is ON.
3) If all checks are normal, send vehicle year, make, model and VIN number to
us using Dia. Feedback feature.

2. Failed to enter into vehicle ECU system?
Please confirm:
1) Whether the vehicle is equipped with the system.
2) Whether the VCI is correctly connected.
3) Whether the vehicle ignition switch is ON.
4) If all checks are normal, send vehicle year, make, model and VIN number to
us using Diagnostic Feedback feature.

3. How to save power?
1) Please turn off the screen while X-431 V+ keeps idle.
2) Set a shorter standby time.
3) Decrease the brightness of the screen.
4) If WLAN connection is not required, please turn it off.
5) Disable GPS function if GPS service is not in use.

4. How to handle when you encounter “Insufficient storage space”?
If this happens while downloading the diagnostic software, please proceed as
follows:
1. Get your X-431 V+ username and password ready. If you forgot the
password, please dial our after-sales support center hotline to retrieve it with
the product Serial Number.
2. Reset the X-431 V+ to the default factory settings (For details, please refer to Item 5 in this Chapter).
3. Tap “Settings” -> “WLAN”, slide the switch to ON and then choose the
desired WLAN network to connect.
4. Open the browser and visit www.dbscar.com to download and install the
latest App.
5. After the installation is complete, launch the application and login with your
username and password.
6. Tap“Update” to download the diagnostic software.
Note: For new App, the software structure and storage space occupied by the vehicle
software have been optimized so as to avoid the occurrence of insufficient storage.

5. How to reset X-431 V+?
Resetting may cause data loss. Before doing so, please make sure important data
and information has been backed up.
Do the following to reset X-431 V+:
1. Tap “Settings” -> “Back & Reset”.
2. Tap “Factory data reset”.
3. Tap “Reset tablet”.
4. Tap “Clear all data” to start resetting until the tool automatically reboots.

6. The diagnostic application is failing.
1. Press the Home key on the tool.
2. Select “Settings”-> “Apps”.
3. Select the application name from the Apps list.
4. Select “Force Stop”, and then press “OK” to confirm.
5. Select “Clear Data”, and then press “OK” to confirm.

Launch X431 HD-III VCI Module Parameters:

Working voltage:                DC 9 ~36V
Power consumption:           ≤ 2W
Communication:                 Via wireless BT/WLAN or data cable
Working temperature:        -10 to 55℃
WIFI module:
                                            HLK-RM08K
                                               Frequency range: 2412-2472MHz
                                               Transmit power: 19.29dBm
Wireless BT module:
                                            YG-218M-A2
                                               Frequency range: 2402-2480MHz
                                               Transmit power: 16.62dBm

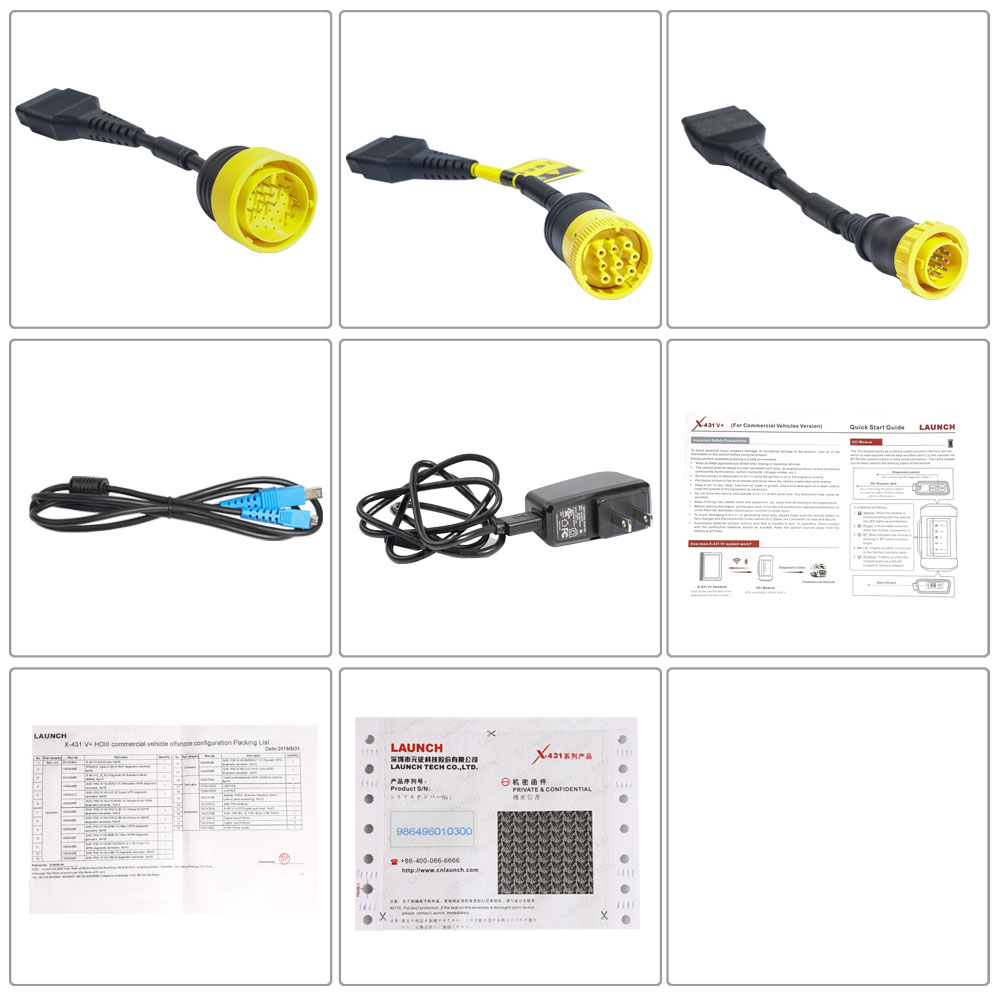

Launch X431 V+ HD3 Package includes:

1pc x X-431 V+(V3.0) host
1pc x PAD4HD- Type II OBD-9 X431 diagnostic connector
1pc x X-431 HD_III_VCI diagnostic kit Business Edition (RM08)
1pc x X431 PAD IV HD-BENZ-14 / Mercedes 14PIN diagnostic connector
1pc x X431 PAD IV HD-CAT-9 / Carter 9PIN diagnostic connector
1pc x X431 PAD IV HD-HYUNDAI-16 / Modern truck 16PIN diagnostic connector
1pc x X431 PAD IV HD-IVECO-30 / In Victoria Ho 30PIN diagnostic connector
1pc x X431 PAD IV HD-IVECO-38 / In Victoria Ho 38PIN diagnostic connector
1pc x X431 PAD IV HD-MAN-12 / Man 12PIN diagnostic connector
1pc x X431 PAD IV HD-MAN-37 / Man 37PIN diagnostic connector
1pc x X431 PAD IV HD-MITSUBISHI-12 + 16 / Fuso 12 + 16PIN diagnostic connector
1pc x X431 PAD IV HD-OBD-16 diagnostic connector
1pc x X431 PAD IV HD-OBD-6 diagnostic connector
1pc x X431 PAD IV HD-RENAULT-12 / Renault 12PIN diagnostic connector
1pc x X431 PAD IV HD-VOLVO-8 / Volvo 8PIN diagnostic connector
1pc x Heavy truck diagnostic X431 PAD4HD mainline
1pc x LIGHTER
1pc x CLIPPER
1pc x Adapter, 5V/2A, American Standard (Lenovo plate supporting)
1pc x X431 PIN envelope
1pc x X-431 V+ HD3 English quick start
1pc x X431, PRO3S+, B, USB, Micro, USB
1pc x Clipper fuse 5*20mm
1pc x  Lighter fuse 6*30mm
1pc x X-431 Power supply
