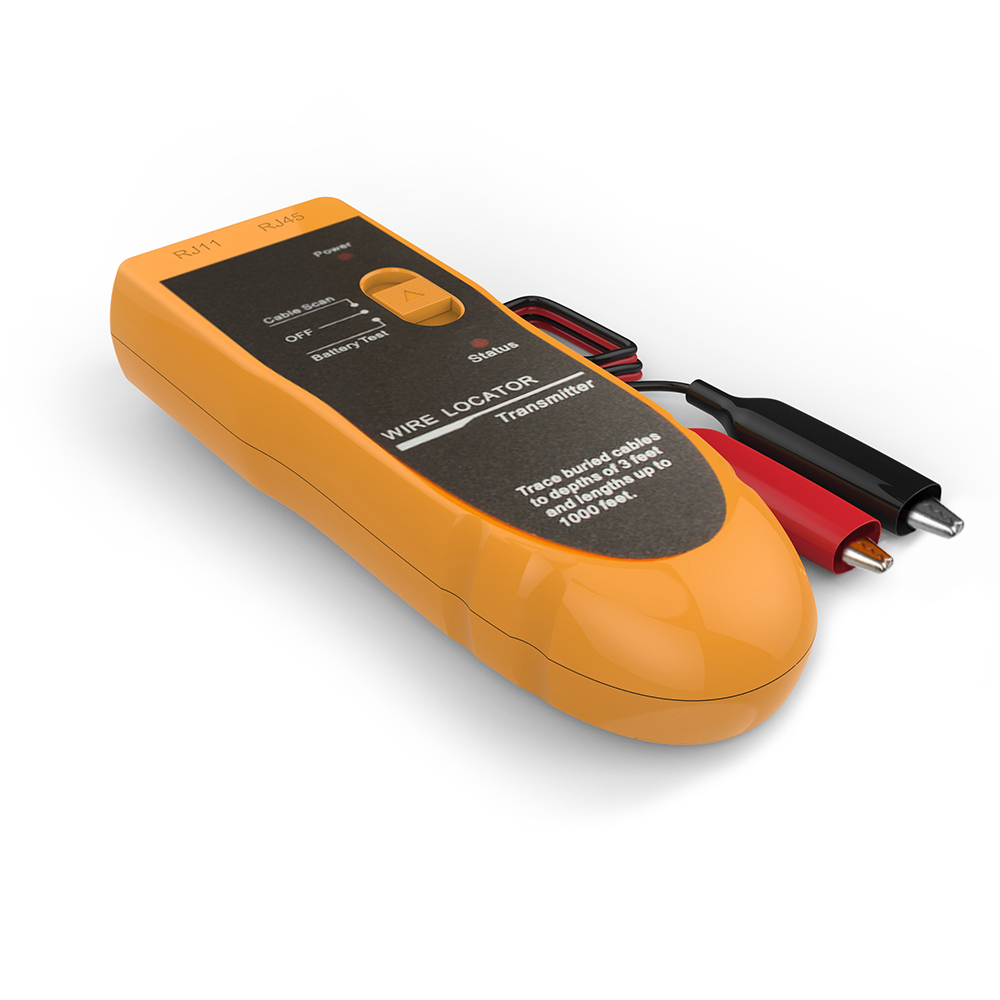

KOLSOL F02 Underground Cable Wire Locator Tracker Lan With Earphone
Main functions:1.Locating & tracking buried and hidden wires and other hidden-wires.2.Range: Up to 3 feet deep and 1000 feet in length3.Determining Which Receptacles are on specific circuits.4.Pinpointing Drill Sites before drilling.5.White LED Flash Light.
Item Specifics:
Brand Name: Kolsol
Model Number: F02
Place of Origin: Shenzhen.China
Tracing type: Underground, Buried wires and Other Hidden wires
Length range:up to 1000 feet
Depth range: up to 3 feet
Power: 9V Alkaline battery
Certificates: CE
Technical indexes:
F02 Transmitter specifications:
Tone frequency:200kHz
The Max length distance:1000 feet
The Max depth distance :3 feet
The Max. working current:Less than 70mA
Tone mode:1 Tone
Max. signal voltage:15Vp-p
Signal display:Signal tone, Antenna
Voltage protection:AC 60V/DC 42V
Battery type:DC9.0V（NEDA 1604/6F22) x 1pc
Dimensions (LxWxD):49 x 135 x 33mm
F02 Receiver specifications:
Frequency:200kHz
The Max. working current:Less than 70mA
Earphone jack:1
Battery type:DC9.0V（NEDA 1604/6F22) x 1pc
Dimensions (LxWxD):43 x 168 x 27mm
PACKAGE:
1 x Emitter
1 X Receiver
1 x Earphone
1 x Kit bag
1 x Instruction Manual
