KOLSOL AT278  TDR Network LCD Cable Tester  For RJ45/RJ11/BNC/Metal Cable/PING/POE NF-8601S

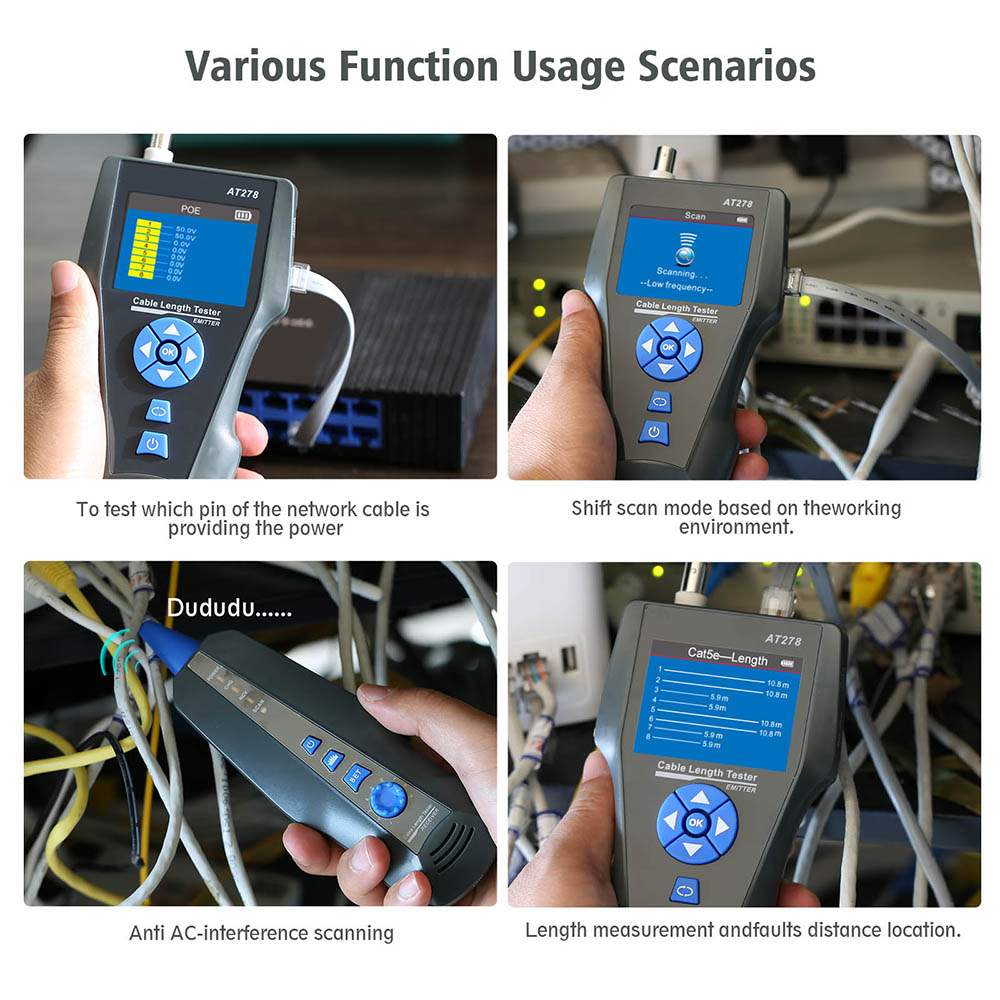

AT278 Functions

1. Measures cable length and display the distance to fault.
2. PoE Presence: identify which pins are providing power and detect how much voltage .
3. PING function to test network performance, data packet, min & max time.
4.Tone trace cable with complete AC Interference Rejection, much easier than other tracers on markets.
5. Hub blink for locating network port by  the flashing port light on a server/switch/hub/router port
6. Core troubleshooting features; length, distance to fault, graphical wire mapping, opens, shorts
7. TF card included to import and export data from comupter (50 sets, txt format).
8. Roughly locate breakage or short position by tone.
9. Voltage detector: included in receiver (90-1000V)

AT278 Specifics:

Model Number: AT278

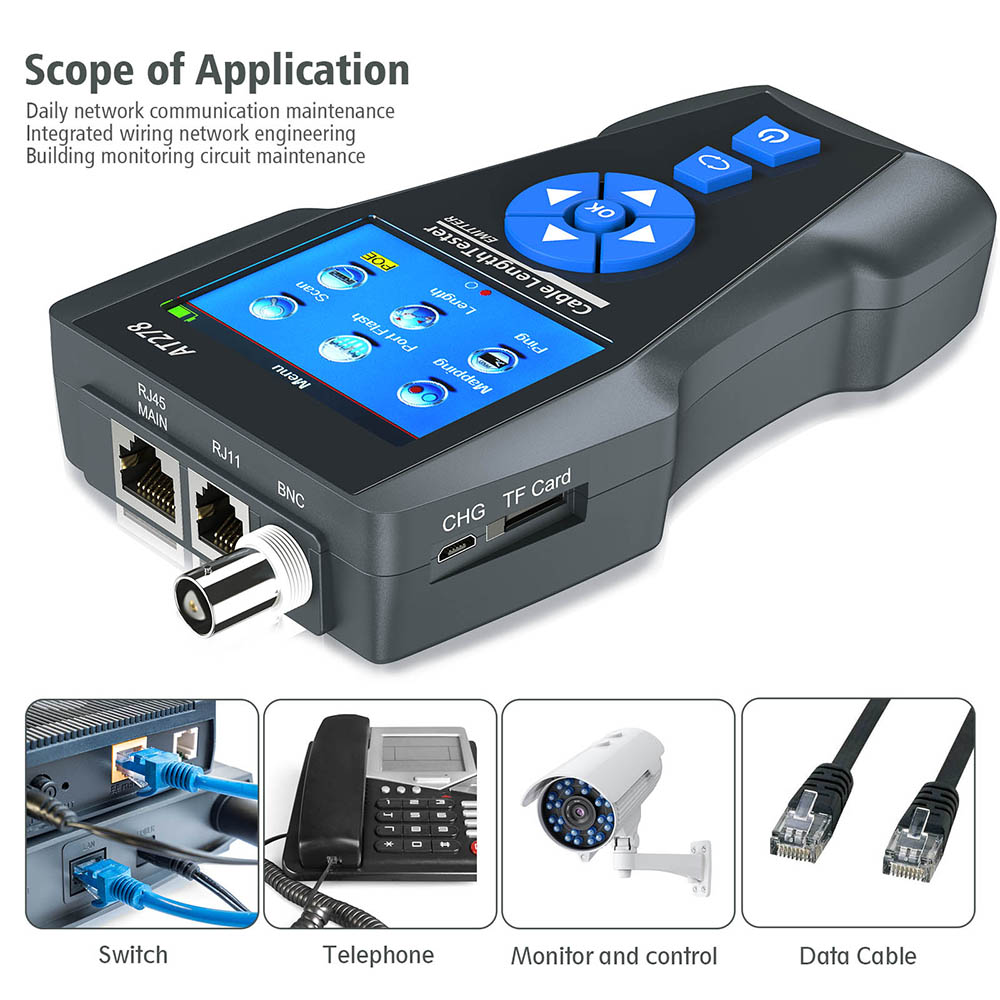

Port: RJ45, RJ11, BNC
Test length:  RJ11,RJ45 ,BNC
Tracking Type: RJ45, RJ11, BNC , and Metal Cable
Other Function: PING test， PoE detect
Power:  Lithium battery

AT278 Benefits

1. Two tone tracing modes: common switch & PoE Switch.
2. Big LCD color screen 320*240 and lighting lamp in darkness.
3. Function of storage and memory
4. Low voltge alarm function and automatic delay power on-off
5. Rechargeable Lithium battery for more efficient work

AT278 Specification:

Transmitter specifications

LCD screen:60 x 45mm
Tone frequency:130KHz
The range of testing cable:＜2000m
Trace cable coonected to switch:AC Fliter
Tone mode:2 Tones, adjustable
Compatible with connectors:RJ11,RJ45,BNC, PING/PoE
Battery type:Lithium battery
Dimensions (LxWxD):185 x 80 x 32mm

Receiver specifications

Frequency:130kHz
The Max. working current:Less than 70mA
Earphone jack:1
LED illumination:2 LEDs
Battery type:Lithium battery
Dimensions (LxWxD):218 x 46 x 29mm

Remote unit specifications

Compatible with connectors:RJ11,RJ45,BNC
Dimensions (LxWxD):107 x 30 x 24mm

Accessories Included:

2pcs x Built-in Lithium battery
1pc x Carry case
1pc x Gift box
1pc x Charging adaptor
1pc x Telephone line adapter
1pc x Network cable adapter
1pc x Cable clips
1pc x TF memory card
