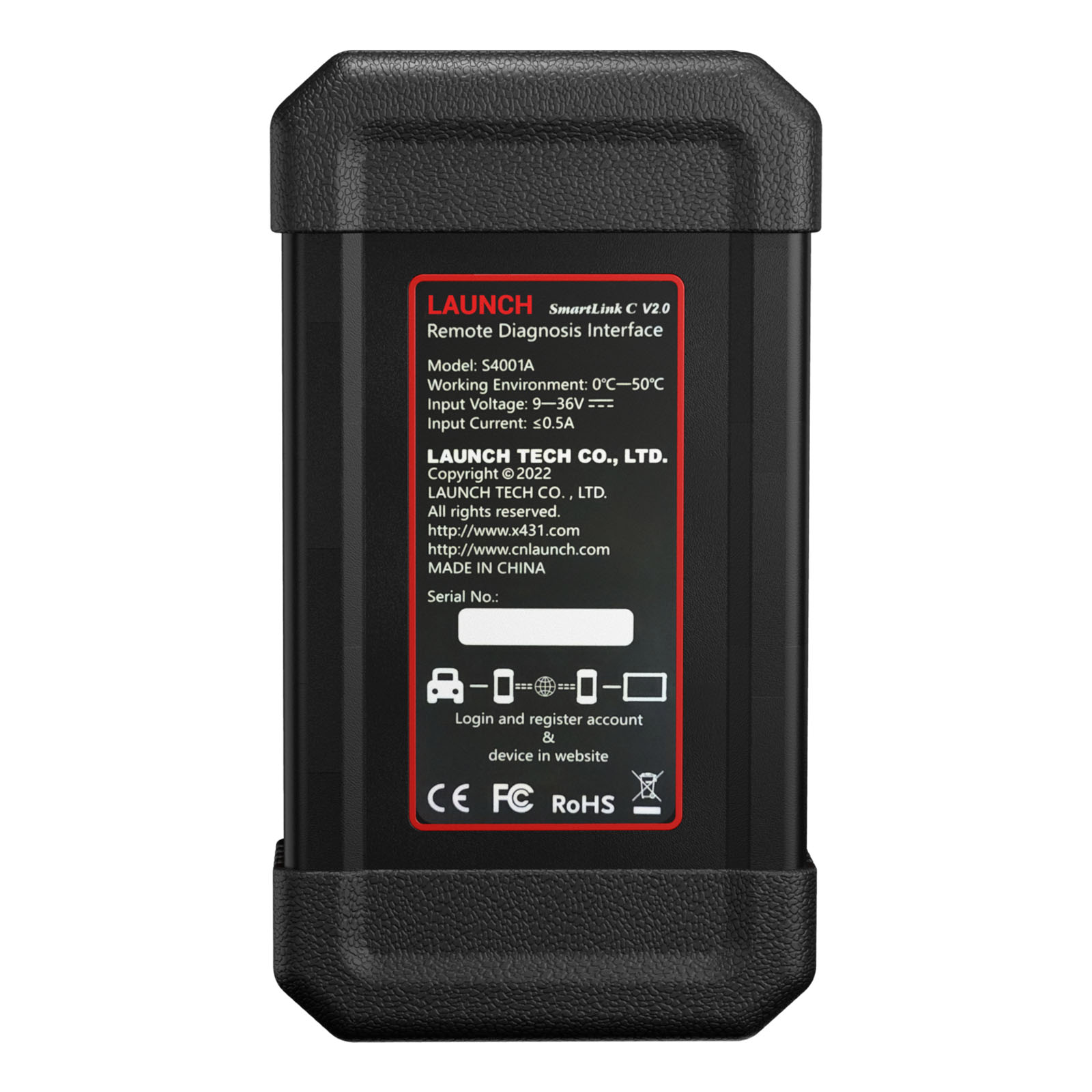

Launch X-431 SmartLink C 2.0 Heavy-duty Truck Module


Launch X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module developed by Launch Company based on Linux system, dual processor Cortex-A7+Cortex-M7, 8G storage, 256M storage, 320*480 resolution. It supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with Launch X-431 V+, PRO3S and PRO5 series.

It also support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test. Covering Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.

Launch X-431 SmartLink C 2.0 Heavy-duty Truck Module Features:



The heavy-duty truck module is used to expand the configuration of passenger cars equipped with DBScar lower computer to the integrated configuration of passenger and business,  and it is mainly supporting commercial vehicles.

1. Compared with X-431 HDIII, the SmartLink C 2.0 is more powerful in function.
2. The transmission speed is faster and more stable.

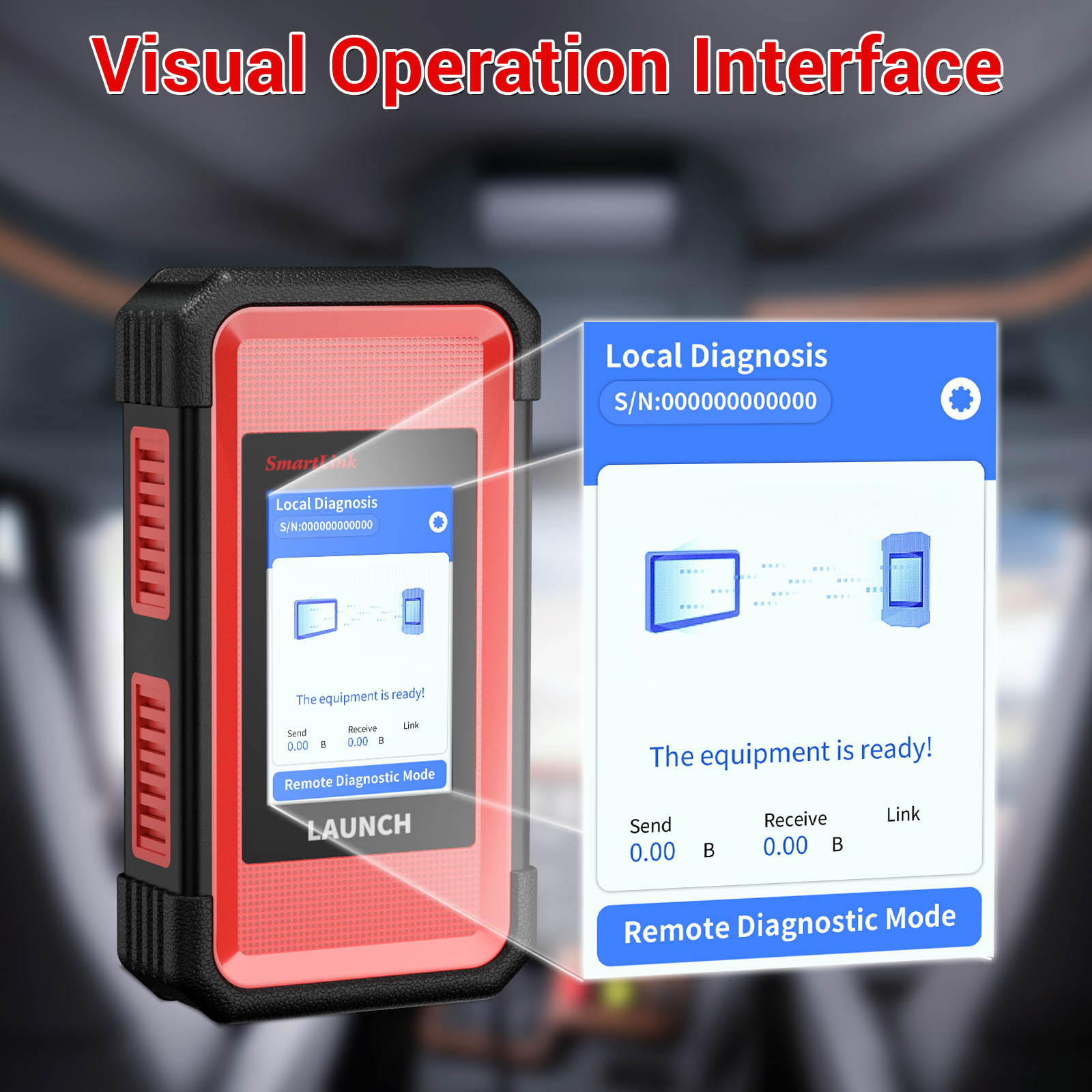

3. The visual operation interface makes it more convenient.
4. It supports commercial vehicles, passenger vehicles, new energy and other models.
5. It supports super remote diagnosis.
6. 1-year free update.(After One Year, Please Buy Subscription Cost )


88 supported software list:


X431, JCB X431, Renault Heavy Vehicle X431, IRIZAR Heavy Vehicle X431, Zhongtong Bus (ZHONGTONG BUS) X431, USAFORD Diesel Version X431, AISIN Heavy Vehicle

X431, Yutong Bus X431, Foton Auman X431, IRISBUS Heavy Duty Truck X431, Kenworth Heavy Duty Truck X431, HD_TATA X431, VOITH Heavy Duty Truck

X431, Benz heavy truck X431, JAC heavy truck X431, CREDO heavy truck X431, Stirling heavy truck X431, Doosan engine X431 Perkins

X431, VOLVO Heavy Duty Truck X431, Freightliner Heavy Duty Truck X431, Dongfeng Commercial Vehicle X431, IWC Heavy Duty Truck X431, Peterbilt Heavy Duty Truck X431, DEUTZ

X431, Cummins engine X431, SCANIA X431, Chaochai X431, Xixing heavy-duty vehicle X431, WABCO ABS X431, ZF

X431, ISUZU Heavy Duty Vehicle X431, FUSO X431, Xichai X431, AutoSearch X431, Case X431, KNORR ABS

X431, IVECO Heavy Duty Vehicle X431, ASTRA X431, Quanchai X431, Dachai Heavy Duty Vehicle X431, Steyr X431, Miller

X431, special for Yuchai X431, BREMACH X-431, Dongfeng Yufeng X431, Golden Passenger Car X431, heavy-duty natural gas X431, HD_FLEXICOIL

X431, BOSCH X431, Hino X431, BONLUCK Bus X431, Higer Bus X431, DENSO_Diesel/Diesel Engine X431, Volvo Construction Machinery

X431, Shangchai X431, ERF X431, ALLISON gearbox X431, Ashok Leyland X431, DELPHI X431, MWM heavy duty vehicles

X431,DAF X431,UD Truck/Nissan Diesel X431,DETROIT Engine X431,Yang Diesel Engine X431,King Long Bus X431,Heavy Truck Demonstration Software

X431, FAW Jiefang X431, construction machinery X431, MACK heavy-duty vehicle X431, HD_ABS system X431, diesel version Mitsubishi X431, heavy-duty vehicle standard

X431, Hyundai Heavy Vehicle X431, SETRA Heavy Vehicle X431, WP Diesel Engine X431, Heavy Truck Aftertreatment System X431, Diesel Nissan X431, Commercial Vehicle One-key Scan

X431, Sinotruk X431, SITCAR heavy truck X431, Sunlong Bus (SUNLONG) X431, heavy truck Jiangling X431, diesel version Toyota

X431, MAN X431, NEOPLAN Heavy Duty Truck X431, Sunwin Bus (SUNWIN) X431, Caterpillar Heavy Duty Truck X431, TRAILER Heavy Duty Truck

Launch X-431 SmartLink C 2.0 Heavy-duty Truck Module Specifications:


CPU	dual processor: Cortex-A7+Cortex-M7
operating system	Linux
resolution	320x480
power	< 6w
storage	8GB
memory	256M
working temperature	0℃~50℃
working voltage	9V DC—36V DC
dimensions	200mm×110mm×47mm
communications	WIFI/Bluetooth/Ethernet

Package Includes:


1pc x Overseas super remote diagnosis box V2.0 (maintenance end, 98934, no label)

1pc x HD15F to OBDII 16 male integrated test connector, RoHS

1pc x DB15F to HD15F test main line (without DC), L=1000mm, RoHS

1pc x Double clamp power cord (English, without LAUNCH), RoHS

1pc x Cigarette lighter cable (English, no LAUNCH), RoHS
4pcs x Fuse, AC250V/5A, φ5*20mm ROHS
2pcs x Fuse, AC250V/5A, φ6*30mm ROHS

1pc x X431 PAD4HD USB Type A to Type B Cable, RoHS

1pc x Category 6 Gigabit Network Cable (Blue) 15m, RoHS

1pc x SmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS

1pc x X431 PAD4HDB15M-CAT-9/CAT 9PIN integrated diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-VOLVO-8/Volvo 8PIN integrated diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-16 Integral diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-Type II OBD-9 Integral Diagnostic Connector, RoHS

1pc x X431 PAD4HDB15M-6 Integral diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-JUMPER-10 heavy truck jumper 10PIN diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-IVECO-30/IVECO 30PIN Integrated Diagnostic Connector, RoHS

1pc x X431 PAD4HDB15M-IVECO-38/IVECO 38PIN Integrated Diagnostic Connector, RoHS

1pc x X431 PAD4HDB15M-MAN-12/Man 12PIN integrated diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-BENZ-14/Benz 14PIN integrated diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-MAN-37/Man 37PIN integrated diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-RENAULT-12/Reynolds 12PIN integrated diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-MITSUBISHI-12+16/FUSO 12+16PIN linear diagnostic connector, RoHS

1pc x X431 PAD4HDB15M-HYUNDAI-16/Hyundai truck 16PIN linear diagnostic connector, RoHS

4pcs x X-431 PAD IV electric control adapter cable 1, RoHS

4pcs x X-431 PAD IV electric control adapter cable 2, RoHS

4pcs x X-431 PAD IV electric control adapter cable 3, RoHS

4pcs x X-431 PAD IV electric control adapter cable 4, RoHS

4pcs x X-431 PAD IV electric control adapter cable 5, RoHS

4pcs x X-431 PAD IV electric control adapter cable 6, RoHS

4pcs x X-431 PAD IV electric control adapter cable 7, RoHS

4pcs x X-431 PAD IV electric control adapter cable 8, RoHS

4pcs x X-431 PAD IV electric control adapter cable 9, RoHS

1pc xUniversal password envelope (without LAUNCH), RoHS

1pc xSmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
