LAUNCH X431 PRO5 PRO 5 Car Diagnostic Tools Automotive Tool Full System OBD2 Scanner Intelligent Diagnosis Tool


Launch X-431 PRO5 opens the era of innovative dual diagnostic modes (local diagnosis and SmartLink remote diagnosis). It inherits the powerful diagnostic strength of PRO series and comes with multiple advantages, such as wide vehicle model coverage, numerous special functions, strong diagnostic functions, accurate diagnostic data and more.



LAUNCH X431 PRO5 Highlights:



1. 2022 New Arrival, No IP limitation, 2 Years Free Update

2. Multi-Language Support: English, Japanese, Korean, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian , Finnish, Hungarian, Swedish, Turkish, Serbian,...

3. Upgraded from X431 V+/Pros Mini/PRO3/TURBO/Throttle

4. SmartBox 3.0 -- Multifunctional Connector

5. OE-level Car Coverage: 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.

6. Intelligent Diagnoses: AutoVIN & AutoScan powers all-systems DTC scans that clock in at an average of < 3 minutes.

7. Full Bidirectional Active Test

8. FCA AutoAuth Access: Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Need AutoAuth subscriptions.

9. VAG Guided Function: Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.

10. Add Modules to Expand Features: ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN; BST360 Bluetooth Battery Tester; X-PROG & X-PROG3 Immobilizer.

11. Non-16pin Connectors & Cables Kit: Enable to work on varied vehicles across the world.

12. User-Oriented - One-touch software updates

13. Great Combination: Android 9.0 OS, 8-core 1.8GHz processor, 4GB RAM & 64GB ROM (128G expandable), 10.1” HD 1920*1200 touchscreen, 8MP rear & 5MP front camera, 7000 mAh battery, etc.

Notice:
Spain, Portugal and Canada do NOT support the online programming.

LAUNCH X431 PRO5 Functions:



Advanced ALL Systems Diagnose:



This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:

1) Retrieve ECU information including unit type, version numbers, and other specifications, etc.

2) Read & erase DTCs to locate problem areas and clear the codes.

3) View Live Data of each parameter item.

4) This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance performance, save energy, reduce emissions, and everything else.

Guided Functions:

Guiding you to be an expert in automotive diagnostic.

Compatible with Volkswagen / Audi / Skoda / Seat etc.



Active Test----Enhance Your Experience.

This X431 scan tool also functions as a bi-directional car scanner to perform specific tests and functions without using the vehicle’s own controls to save time. For example: using the diagnostic tool to command the fuel pump on. If the fuel pressure gauge shows proper fuel pressure, you’d know the fuel pump circuit and pump are functioning properly. The process just takes < 5 minutes. If test manually? Three times as long!



50+ Hot Reset & Relearn Maintenance Services



You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:


-Oil Maintenance Light Reset: reset the oil service lamp; re-calculate the optimal oil life change interval.

-Steering Angle Reset: reset the steering angle to zero to keep the car running straight.

-Injector Coding: write the new injector code into the system to correct cylinder injection quantity.

-Electronic Parking Brake Reset: help replace and reset the brake pad.

-ABS Bleeding: help exhaust the air in ABS system in an easy way.

-Throttle Matching: initialize the throttle actuators to the default state.

-Battery Matching: register the battery after replacement.

-DPF Regeneration: help remove the particulate matter to keep the trap stable.

-Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.

-Tire Pressure Reset: reset the tire pressure.

-Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.

-Headlight Matching: initialize the adaptive headlamp system.

-Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.

-Sunroof Initialization: initialize the sunroof when to be locked off, or closed.

-Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.

And many more with expanding. Function menus vary by manufacturer, year, and model. Reach us for compatibility check.



ECU Coding: Alter the Car on Your Demand



From manufacturer-specific reprogramming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power “ECU Coding” to keep you on the cutting edge:

1)You can match, relearn, and code the newly installed ECU module after making repairs or replacements.

2) You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.




J2534 ECU Programming


Serve as J2534-Compliant VCI - compatible with Toyota, Honda, Volvo, VW, GM, Chrysler, Benz, Jaguar, Land Rover; offering cost-effective access to data and OE programming downloads from vehicle manufacturers.

TPMS Programming


Activate all sensors,TPMS relearn,Program

AUTOVIN--- Maximize Your Intelligence



This intelligent scanner will automatically identify the make, model, and manufacture year in one touch; help you match the right software so the diagnosis will be carried out fast and efficiently. You will also enjoy how smart it would be to record the test results as Inspection Report, being done by itself, letting you maintain vehicle health logs and share the information easily.



Remote Diagnosis


Users can carry out the remote diagnosis to ask for the remote control from other LAUNCH diagnostic tools (including but not limited to V+ 4.0), which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.



Health Report Generate and Share


With LAUNCH X431 pro 5, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.



Print Diagnostic Result



You can share car diagnostic data via email ,then print it via PC , or optional wifi , and you can order Launch x431 mini wifi printer , then one-key printing.

Wide Vehicle Coverage across the Global -American Cars



Boost Your Efficiency



See what your car is doing in real time; get car performance, sensor data and more at one glance! This diagnostic scanner presents the live data stream in 3 modes: a. Numbers and lists (default); b. Wave patterns (max. 12 channels in one screen); c. Merged graph (max. 4 data can be merged) for you to quickly identify if the data are in normal conditions, ranges or not.、



LAUNCH X431 PRO5 Specifications:

Specification for Launch X431 PRO5 Tablet:


Display: 10.1-Inch ，1920x1200 FHD IPS

CPU: 8-Core Processor, 1.8 GHz

Camera: 500，800

WI-FI: 2.4GHz /5GHz

Android 9.0

RAM: 4G, ROM 64G

Battery： 7000 mAh / 3.8V

Operating voltage: 9~36V

Storage Temperature:-20℃~70℃ (-4℉~158℉)

Working Temperature:0℃~50℃ (32℉~122℉)

Dimension: 267*191*33 mm (10.51*7.52*1.30 inch)

Package size: 594*164*410 mm (23.39*6.46*16.14 inch)

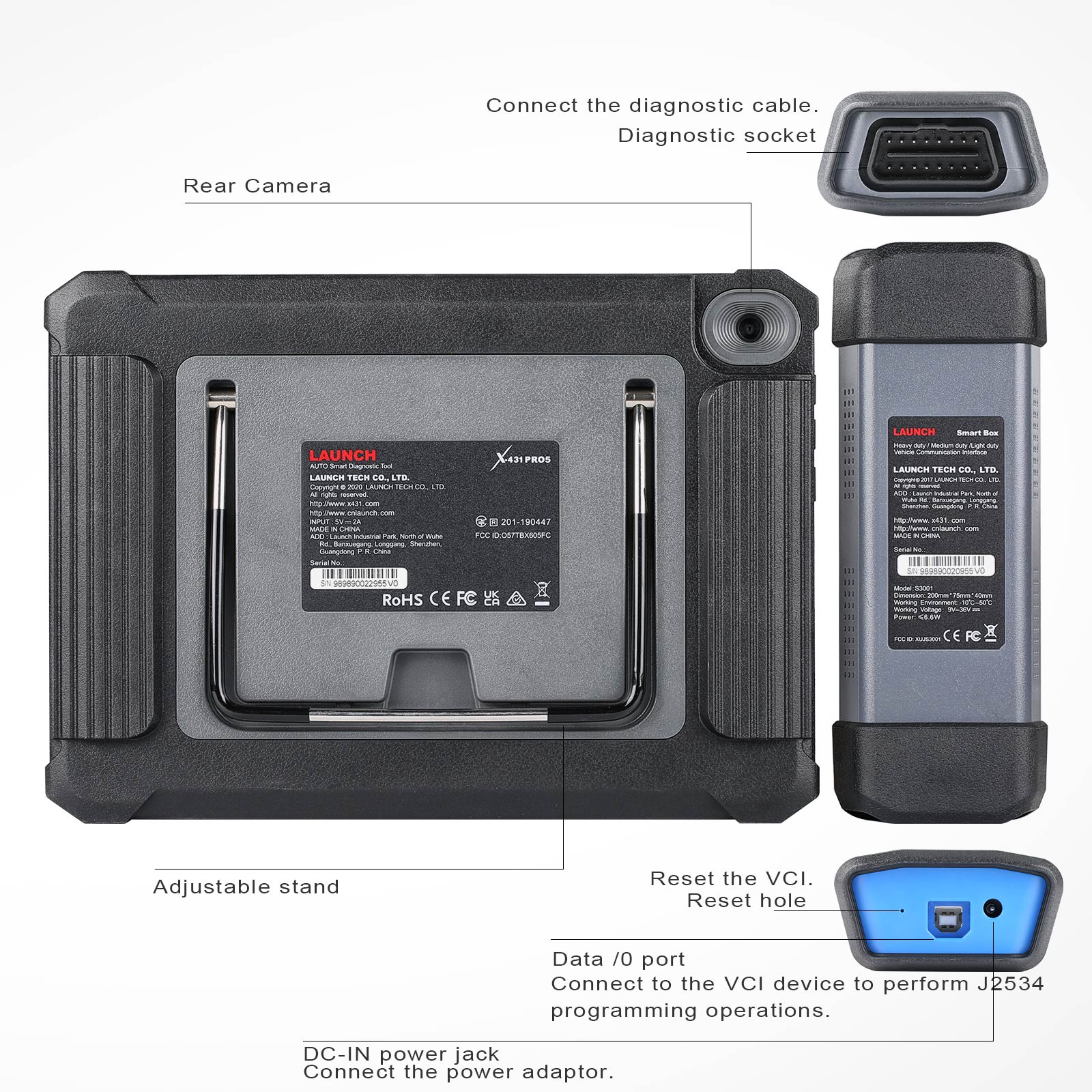

Specification for VCI Connector:


RAM: 256M
ROM: 8G
Wi-Fi: 2.4GHz/5GHz dual-band
Working Temperature: 0℃~50℃ (32℉~122℉)
Operating voltage: DC9~36 V
Dimension: 200*75*40 mm (7.87*2.95*1.57 inch)
New protocol support: J2534, CANFD, DOIP

LAUNCH X431 PRO5 Package:



1pc x Display tablet

1pc x SmartLink C device

1pc x Power adaptor

1pc x OBD II extension cable

1pc x Charging cable (Type A-Micro)

1pc x Data cable (Type A- Type B)

1pc x Crossover Cable
