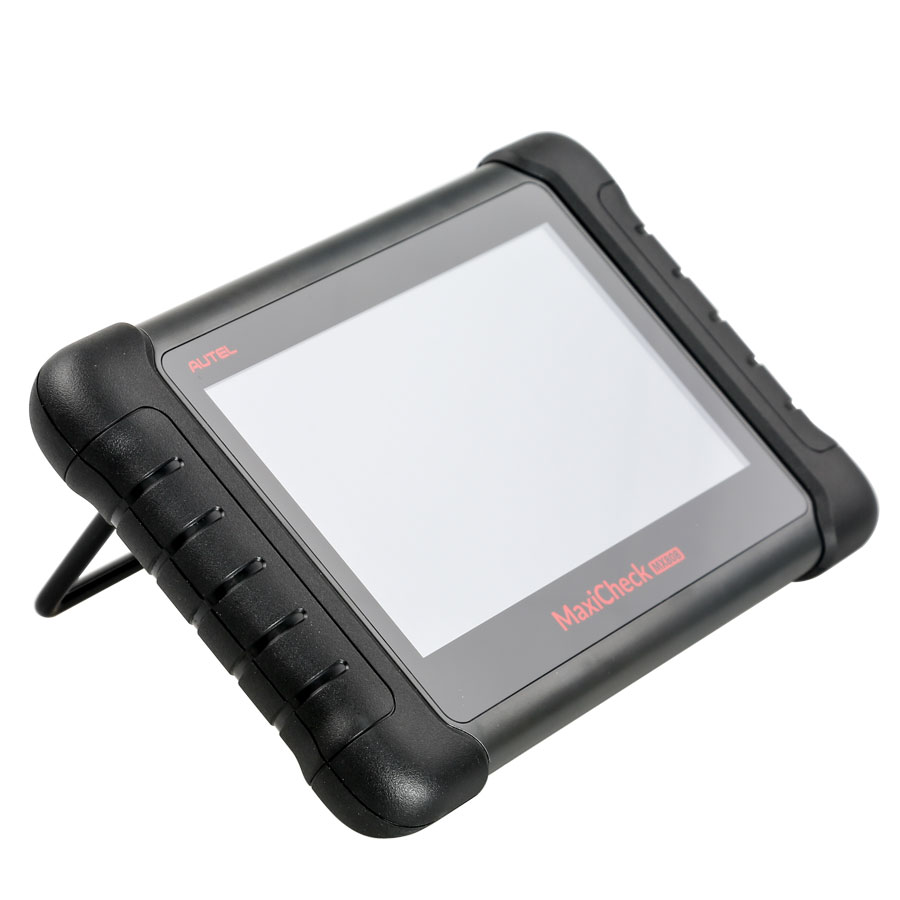

Autel MaxiCheck MX808 All System Diagnostic and Service Tablet
When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.
The Autel MX808 has the features and functions of the older MD802 and the MaxiCheck Pro combined into one Android-based tablet that offers more service functions than the either of the older units.
The MX808 is an Android version of the Autel MD808.
The MX808 is cabled to the vehicle.
Select the Scan icon to read and erase codes and view data stream only.
Select the Service icon to perform tests and functions specific to certain service needs, i.e. electronic parking brake, battery maintanance, steering angle reset etc.
The MX808 service tablet offers wireless printing via wifi like a MaxiSYS, however, it is not a full function scanner like a MS906 or ms908.
Autel MaxiCheck MX808 Features
Read/clear codes for all available systems
Display live data in text, graph & analog for easy data review
Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
Relearn parking brake pad after replacement
Support IMMO functions
Support forced DPF regeneration and adjusting injectors
Reset Steering Angle Sensor (SAS)
Reset service mileage and service intervals
Support TPMS sensor relearn
Support battery registration and reset
MaxiCheck MX808 Pro Systems
• POWERTRAIN SYSTEM - Read / Test / Clear trouble codes all modules
• BODY SYSTEM - Read / Test / Clear trouble codes all modules
• CHASSIS SYSTEM - Read / Test / Clear trouble codes all modules
• INFO & COMMUNICATION - Read / Test / Clear trouble codes all modules
• Auto VIN Detection
• Auto Scan all major systems
• Live Data to test individual systems
• Communicate with door modules, body controllers, electronic modules
• Support all OBDII protocols and 10 test modes including Freeze Frame, Enhanced Mode 6, Vehicle Info, I/M Readiness, On-Board Monitor and Component Tests
• Graph, record and playback freeze frame data
Service Functions
The MaxiDiag MX808 Pro provides the following functions for most modern vehicles:
1. Oil Reset Service
2. EPB Service (Electronic Parking Brake)
3. BMS (Battery Management System)
4. SAS Service (Steering Angle Sensor)
5. DPF Service (Diesel Particulate Filter)
6. TPMS Service (Tire Pressure Monitor System)
7. IMMO Service (Immobilizer)
8. Brake Bleed
9. Injector
10. Throttle
11. WIN DR ROOF
12. Seats
Autel MX808 Scanner Specifications
Recommended Use Indoor Operating System Android™ 4.4.4 Processor Cortex-A9 processor (1.5 GHz) Memory 32GB Display 7-inch LCD capacitive touch screen with 1024x600 resolution Connectivity Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB) Sensors Ambient light sensor for brightness auto changing Audio Input/Output Input: N/A • Output: buzzer Power and Battery 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply Tested Battery Life Around 4.5 hours of continuous use Battery Charging Input 5 V/1.5 A Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V Operating Temp. -10 to 60°C(14 to 140°F) Storage Temp. -20 to 70°C (-4 to 158°F) Operating Humidity 5% - 95% non-condensing Dimensions (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) Net Weight 788 g (2.42 lb.) Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898
(Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda
Diag-H Protocol, TP2.0, TP1.6
Package includes:

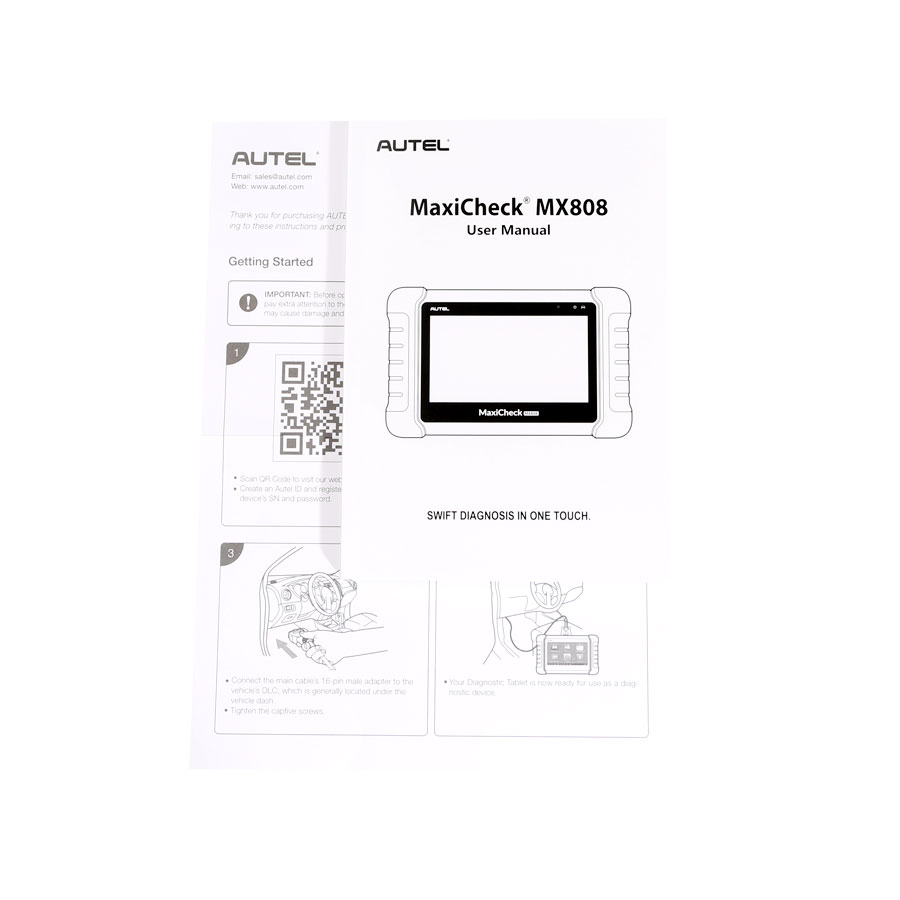

1pc x User Manual
1pc x Quick Reference Guide
1pc x Main cable
1pc x USB External Power Adapter

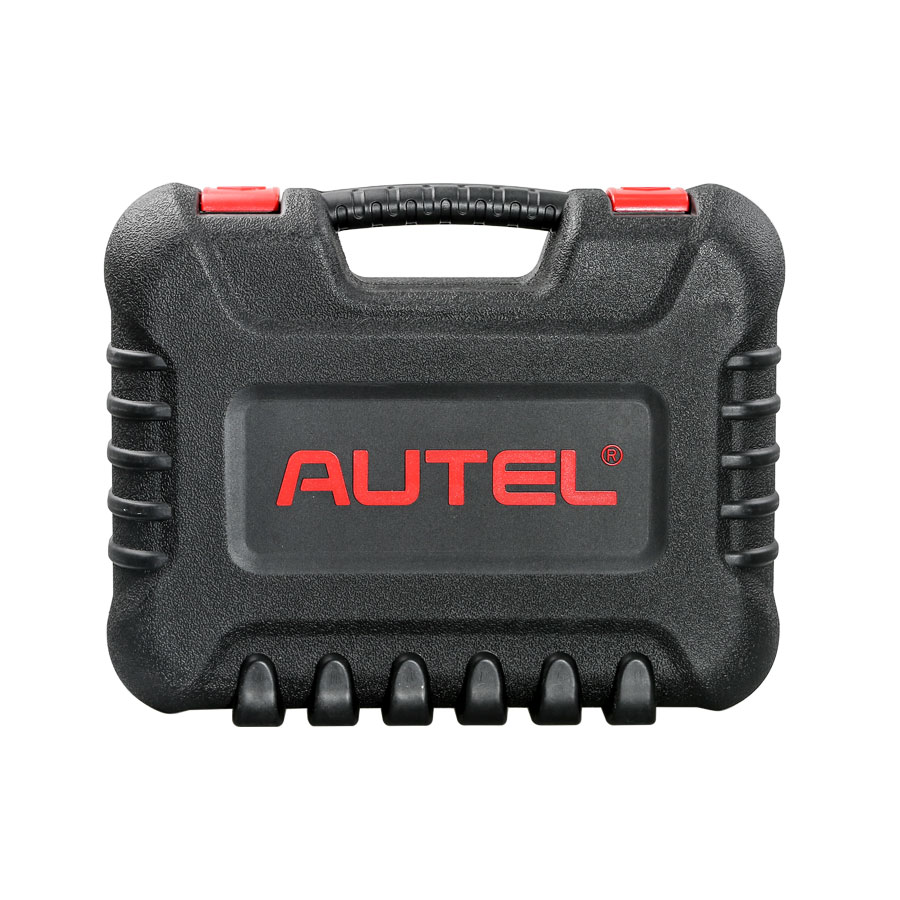

1pc x Carry case
1pc x Mini USB Cable
