Autel MaxiIM IM608 ADVANCED IMMO & KEY PROGRAMMING

Contact us to get Better Price:  sale@obdtools.net     Wechat / WhatsApp: +1937 888 0032

Please feel free to contact us for a maximum discount of 12%.

Autel MaxiIM IM608 ADVANCED IMMO & KEY PROGRAMMING

Autel MaxiIM IM608 Highlights:

1. Free Update Online for 1 Year, after one year, it will cost $1100
2. Warranty for 12 Months.
3. ADVANCED IMMO & KEY PROGRAMMING
4. OE-Level Diagnostic and Service Functions as MaxiSYS Pro
5. with XP400 and MaxiFlash JVCI for ECU Programming
6. Language: English, Spanish and French. (We can ship to Spain and France now)

Kindly Note: Clients from UK and Portugal please do not buy AUTEL IM608 from China, or your device will get locked.
For Spain and Colombia customer,  free shipping by DHL.

Description:

Autel MaxiIM IM608 is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM608 provides you with all special functions. It is the unprecedented key programming and diagnostic tool that you ever wanted

IM608 is a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths.It combines the most advanced key programming and immobilizer experience with advanced automotive diagnostics and service functions, a 10-inch Android-based, touch-screen tablet with the latest in art. Autel MaxiIM IM608, a comprehensive, ideal immobilizer and key programming tool for automobile technicians and locksmiths.




Autel MaxiIM IM608 Features:

The IM608 is an OE-Level Diagnostic and Service Functions as MaxiSYS Pro with additional software and accessories for IMMO and key programming.
1. Extraordinarily powerful Cortex A7+A15 six-core processor
2. 10.1-inch LED capacitive touch screen with 1920x1200 resolution
3. Internal reliable 64GB On-board Memory for better performance
4. Built-in 8-megapixel rear camera with autofocus and flashlight
5. 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
6. Open source Android Operating System for fast boot-up and multitasking
7. Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services
8. Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage
9. Smart mode for guided and automated key learning
10. Expert mode for advanced key learning
11. Read PIN/CS (all key lost), generate key, key learning, remote learning
12. IMMO ECU reset/adaptation, refresh/coding
13. Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency
14. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
15. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
16. All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.

Autel MaxiIM IM608 Functions:

1. Read & Clear Fault Codes | Short description & code provided (can clear faults & warning lights)
2. Service Functions | Oil light / EPB / BMS / SAS / DAF etc
3. Access Live Data | Data from the ECU/Modulesnsors displayed in real-time (Oxygen sensor-rich/lean etc)
4. Actuation/Component Testing | Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)
5. Coding Functions | Allows you to change vehicle parts that need to be "coded" (Injectors, ABS, starters etc)
6. Flashing/ Reprogramming | Advanced updating/coding of ECU's online through a J2534 pass-through flashing device
7. Advanced Key Programming | IMMO functions, Transponder read/write/identify, MCU/EEPROM chip read/write




ADVANCED IMMO & KEY PROGRAMMING:

Connect the IM608 tablet to the vehicle (via the Bluetooth VCI or Main Cable) and to the XP400 (via USB cable) to access IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc. The software provides two methods to access IMMO functions
1. Smart Mode – for Guided and Automated Key Learning - step by step through a series of functions.
2. Expert Mode – for Advanced Key Learning - select a specific function.

1). PIN / CS Reading (Full Lost)
2). Key Generation
3). Key Programming
4). Command Introduction
5). Backup / Repair IMMO Data
6). IMMO ECU Brain Reset / Adaptation
7). IMMO ECU Brain Reset / Coding
8). BENZ 3rd Generation IMMO Key Splicing, Full Lost, Key Programming
9). BMW FEM / BDC Key Programming and ECU Adaptation
10). BMW CAS4 / 3/2 Key Programming
11). VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More ...



XP400 KEY & CHIP PROGRAMMER Introduction:

Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions. The XP400 includes 12 ports:

1. DC Port – provides 12V DC power supply.
2. USB Port – provides data communication and 5V DC power supply.
3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
5. IC Card Induction Area
6. Vehicle Key Slot – holds the vehicle key.
7. Transponder Slot – holds the transponder.
8. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
9. Mercedes Infrared Key Slot – holds the Mercedes infrared key.
10. Status LED – indicates the current operating status.
11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.
12. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.


XP400 KEY & CHIP PROGRAMMER Function List:

Support PC
MCU / EEPROM Chips Read / Write
ECU Read / Write
MC9S12 Encryption Chip Read / Write
Key Read / Write
Mercedes Infrared Key Read / Write
Remote Frequency Detect
IC Card Read/Write




OE-Level DIAGNOSTIC FUNCTION OF MORE THAN 80 VEHICLES IN ADVANCED LEVEL

Connect the IM608 tablet to the vehicle via the OtoFlash (VCI) to perform extensive diagnostic and service functions.
1. All System Diagnostics
2. Auto Search / VIN Finding
3. Reading / Deleting Error Code
4. Viewing the Live Data Stream
5. View Records of Failure History
6. Store and Data Management Applications
7. MaxiFlash JVCI ECU Programmer (Bluetooth / USB Cable)





ADVANCED SERVICE FUNCTIONS

1. ECU Coding
2. All Special Functions, EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Re-Programming etc.
3. 10.1-inch LCD Touch Screen-64GB Memory-Android Kit Floor-TURKISH LANGUAGE Support-15000mAh Li-polymer Battery-8.0 Megapixel Camera-Wi-Fi-Bluetooth



Autel MaxiIM IM608 IMMO Vehicle List:
Audi:
A1,A3,A4,A5,A6,RS4,B6,B7,RS5,RS6,A4 Allroad,A8,S8,Q3,RSQ3,Q5,Q7,R8,TT,

Seat:
Alhambra,Altea,Altea,Cordoba,CupraLeon,Exeo,Ibiza,Leon,Mii,Toledo

Skoda:
Citigo,Fabia India,Fabia,Kamiq,Karoq,Octavia,Rapid India,Rapid,Roomster,Superb,Yeti

VW:
Amarok,Arteon,Atlas,Beetle,Bora,BoraGli,Caddy,Crafter,EOS,Fox Africa,,Fox EU,Fox,GTI,Gol County,Gol(5U),Gol(5W),Golf PLUS,Golf/Rabbit(1K),Golf6 ESTATE,Jetta,Parati,Passat,Phaeton,Polo,Scirocco,Sharan,Suran,T-Roc,Tiguan,Touareg,Touran,Transporter5/Multivan,up,UP!/cross UP!

Fiat:
500,500L,500X prox,Albea,Boxer,Daily,Doblo,Doblo New,Ducato,Egea,Fiorino,Freemont,,Idea,Grande punto
,Jumper,Linea,Marea,Nemo,Ottimo,Palio,Palio RST,Panda,Perla,Promaster,Punto,Sinea,Stilo,Viaggio

More Autel MaxiIM IM608 IMMO vehicle models please check here:

https://pro.auteltech.com/measurecarApp-1-1.html?m=94&proTypeCode=IM608(IMMO)&operatorType=2

Autel MaxiIM IM608 vs. IM508 Comparison Chart:
You can refer to our offcial blog for more detailed information too:

http://blog.obdtools.net/autel-maxiim-im608-vs-maxiim-im508-vs-auro-otosys-im600-vs-im100/





Autel MaxiIM IM608 VS MaxiIM IM508 VS Auro OtoSys IM600 VS IM100



Product	Autel MaxiIM IM508	Autel MaxiIM IM608	AuroOtoSys IM100	AuroOtoSys IM600
IMMO
Smart Mode (Guided and Automated Key Learning Function)	√	√	√	√
Expert Mode (Advanced key Learning)	√	√
Auto Detect Make/Model/Year/System			√	√
Read PIN/CS			√	√
Read PIN/CS (All Keys Lost)	√	√	√	√
Key Generation	√	√
Key Learning	√	√	√	√
IMMO ECU Reset/Adaption	√	√	√	√
IMMO ECU Refresh/Coding	√	√	√	√
Remote Learning	√	√	√	√
Backup /Restore IMMO Data	√	√
AUDI Q5/A4/A5 2015-2017 Read PIN/CS			N/A	√
BMW FEM/BDC Key Learning and Adaption			√	√
Mercedes Key Learning			×	√
Benz 3rd Generation IMMO Add key, all key lost, key Learning	N/A	√
BMW FEM/BDC Key Learning and ECU adaptation	√	√
BMW CAS4/3/2 key learning	CAS4 available when connected to XP400	√
VW /Audi MQB (VDO & JCI) add key, IMMO V A4/A5/Q5 2015+ Key learning	N/A	√
VW /Audi /Skoda / Seat IMMO III /IV /V add key, all key lost	√	√
Programming
Key read /write	√	√
EEPROM Read/Write	√	√	√	√
MCU Read/Write	Basic	Advanced	Basic	Advanced
ECU Read/Write	When connected to XP400	√
MC9S12 Encryption Chip read/write	When connected to XP400	√
IC Card Read/Write	When connected to XP400	√	N/A	√
Mercedes Infrared Key Read/Write	When connected to XP400	√	N/A	√
Remote Frequency Detect	When connected to XP400	√	N/A	√
Support PC	When connected to XP400	√
OE-Level Diagnostics
All Systems for Over 80 Makes and Models	N/A	√	√	√
AutoVIN /Auto scan	√	√
Read /Erase codes	√	√
View, record, playback live data	√	√
View Freeze Frame data	√	√
Shop and data Manager applications	√	√
MaxiFlash JVCI ECU Reprogrammer (Bluetooth /USB cable)	N/A	√
OtoFlash (J2534 ECU Reprogrammer)			N/A	√
Advanced Service Functions
Oil Serive Reset	√	√	√	√
Parking Brake Pad Relearn After Replacement	√	√	√	√
Steering Angle Sensor Relearn	√	√	√	√
Battery Registration and Reset	√	√	√	√
Diesel Particulate Filter Regeneration	√	√	√	√
Tire Pressure Monitoring System Sensor ID Relearn	√	√	√	√
ECU Coding	N/A	√	N/A	√
VW/Audi Component Protection			N/A	√
Complete Service Functions	N/A	√	N/A	√
Tool Features
Built-in Rechargeable Li-ion Battery	5000 mAh	15000 mAh	5000 mAh	15000 mAh
Internet Updatable	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi
Multilingual Support	√	√	√	√
One Year Warranty	√	√	√	√
Free Online Update Two Years	√	√	√	√
Touchscreen	7-inch	10.1-inch	7-inch	10.1-inch
Memory	32 GB	64 GB	32 GB	64 GB
Processor	Cortex-A9 processor	Cortex A7+A15 six-core processor	Quad-core processor	Hexa-core processor
Camera	N/A	8.0 Megapixel	N/A	8.0 Megapixel
Resolution	1024×600	1920×1200	1024×600	1920×1200
Note: XP400 can be purchased separately.
Some listed functions are manufacture dependent. Constantly update MaxiIM for current vehicle coverage. Update software regularly for most accurate tool features.

Autel MaxiIM IM608 Main Unit Overviews:

1.10.1-inch LCD Capacitve Touchscreen
2.Ambient Light Sensor-detects ambient brightness.
3.Power LED-indicates battery level & charging or system status.
4.Microphone
5.Collapsible Stand-extends from the back to allow hands-free viewing of the Display Tablet
6.Built-in Bttery
7.Loudspeaker
8.Camera Lens
9.Camera Flash
10.DC Power Supply Input Port
11.Headphone Jack
12.USB Port
13.HDMI (high-definition multimedia interface) Port
14.USB Port
15.Mini USB Port
16.Lock/Power Button-turns the evice on & off with long press,or locks the screen with short press.

How to Update Autel MaxiIM IM608 Software:

Autel IM608 Update application allows you to download the latest released software.
The updates can improve the MaxiIM applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database. The Display Tablet automatically searches for available updates for all of the MaxiIM software when it is connected to the internet. Any updates that are found can be downloaded and installed on the device. This section describes installing an update to the MaxiIM System. A notification message displays if an update is available when the Notifications Center function is enabled in the Settings application.

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.
2. Tap the Update application button from the MaxiIM Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.
3. Check all available updates:
--If you decide to update all the items of IMMO software, select IMMO Tab and then tap the Update All button; if you want to update all items of diagnostic software, select Diagnose Tab and then tap the Update All button.
-- If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).
4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.
5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

Autel MaxiIM IM608 Customers Feedbacks:

Golf MK5 2005 AKL - add key OK - 2min
Scirocco 2011 - add key OK - 2min40sec
Honda Civic 2006 - add key OK - 55sec
Golf V AKL 2007 without remove dashboard
Done Tiguan 2013, Scirocco and few others VAGs. Works fine on them
Autel MaxiIM IM608 program key for Volvo XC60 successfully
Benz W212 akl can be done by OBD
2014 Seat Ibiza, 2 keys added
Mercedes ML320 CDI 2007
BMW FEM system Add Key complete
Audi a3 2010 add key Sprinter 2006 add key Vw t5 2008 add key Skoda yeti 2014 add key
Added keys on Golf MK5 2005 AKL, Honda Civic 2006, Scirocco 2011, really fast!!!
Works Great on adding keys, all keys lost, G key
Mercedes E220 (All lost keys) New key works

Autel MaxiIM IM608 Specifications:


Operation System	Android 4.4.2,KitKat
Processor	Samsung Exynos hex-core Processor(1.3GHz Quad-core ARM Cortex-A7+1.7GHz Dual-core ARM Cortex-A15)
Memory	2GB RAM & 64 GB On-board Menory
Display	10.1-inch LED capacitive touch screen with 1920*1200 resolution Wi-Fi(802.11 a/b/g/n/ac) USB 2.0
Connectivity	BT v.2.1+EDR SD Card (Support up to 32GB) HDMI
Camera(rear)	8.0 Megapixel,AF with Flashlight
Sensors	Gravity Accelerometer,Ambient Light Sensor (ALS)
Audio input/output	Microphone Dual Speakers 3-Band 3.5mm stereo/standard headset jack
Power and Battery	Charging via 12V AC/DC power supply with the temperature between 0℃ to 45℃
Input Voltage	12V (9-24V)
Power Consumption	6.5W
Operating Temp	0℃ to 50℃ (32 to 122℉)
Storage Temp	-20℃ to 60℃ (-4 to 140℉)
Dimensions(W*H*D)	300mm(11.81")x220.0mm(8.66")x50.0mm(1.97")
Weight	NW:1.42kg(3.13lb.)    GW:8.655kg(19.08lb)
Protocols:	ISO9141-2,ISO14230-2,ISO15765-4,K/L-line,Flashing code,SAE-J1850 VPW,SAE-J1850PWN,CAN ISO11898,Highspeed,Middlespeed,Lowspeed and Singlewire CAN,GM,GM UART,UART Echo Byte Protocol,Honda Diag-H Protocol,TP2.0,TP1.6SAE J1939,SAE J1708,Fault-Tolerant CAN

Autel MaxiIM IM608'S XP400 & J2534 Connection Instruction:

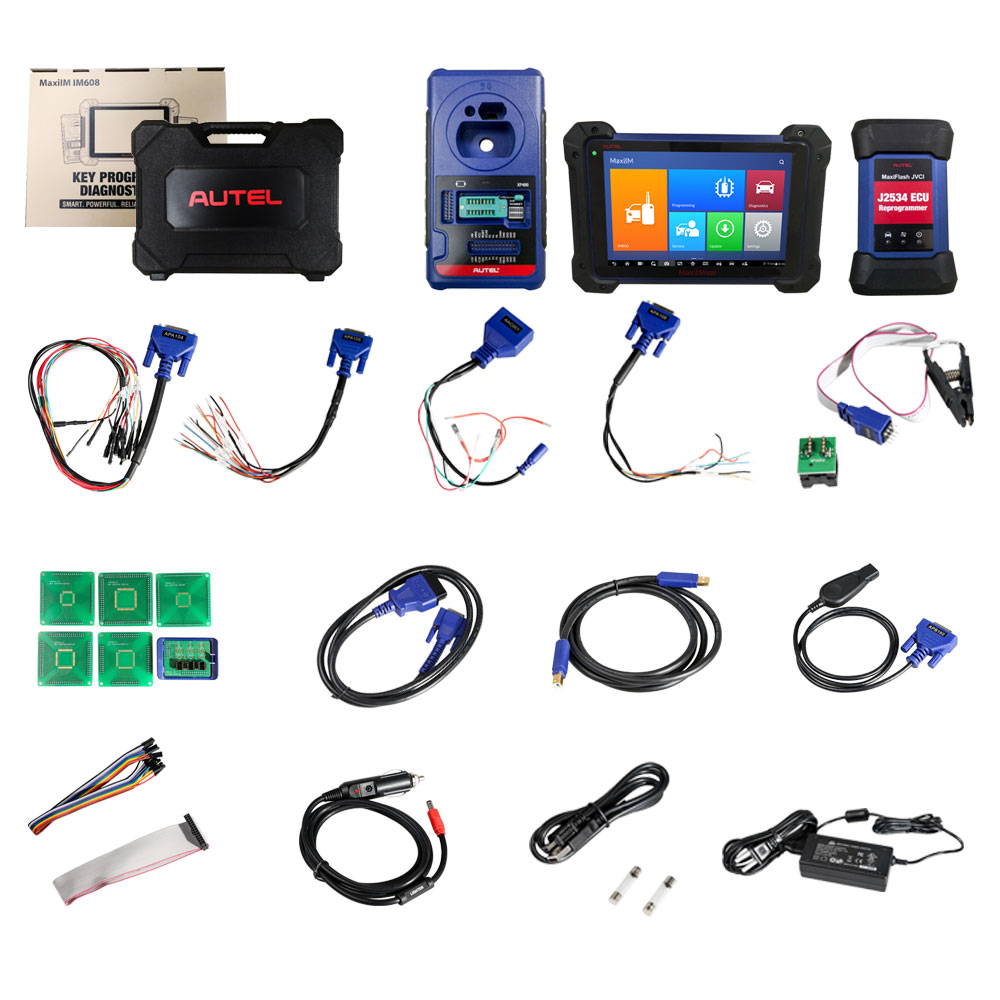

Autel MaxiIM IM608 Packling List:

1x Autel MaxiIM IM608 Main Unit
1x APC101 USB Cable
1x APA101 Signal Cable
1x MaxiFlash JVCI
1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)
1x APA103(EEPROM Clamp)
1x XP400

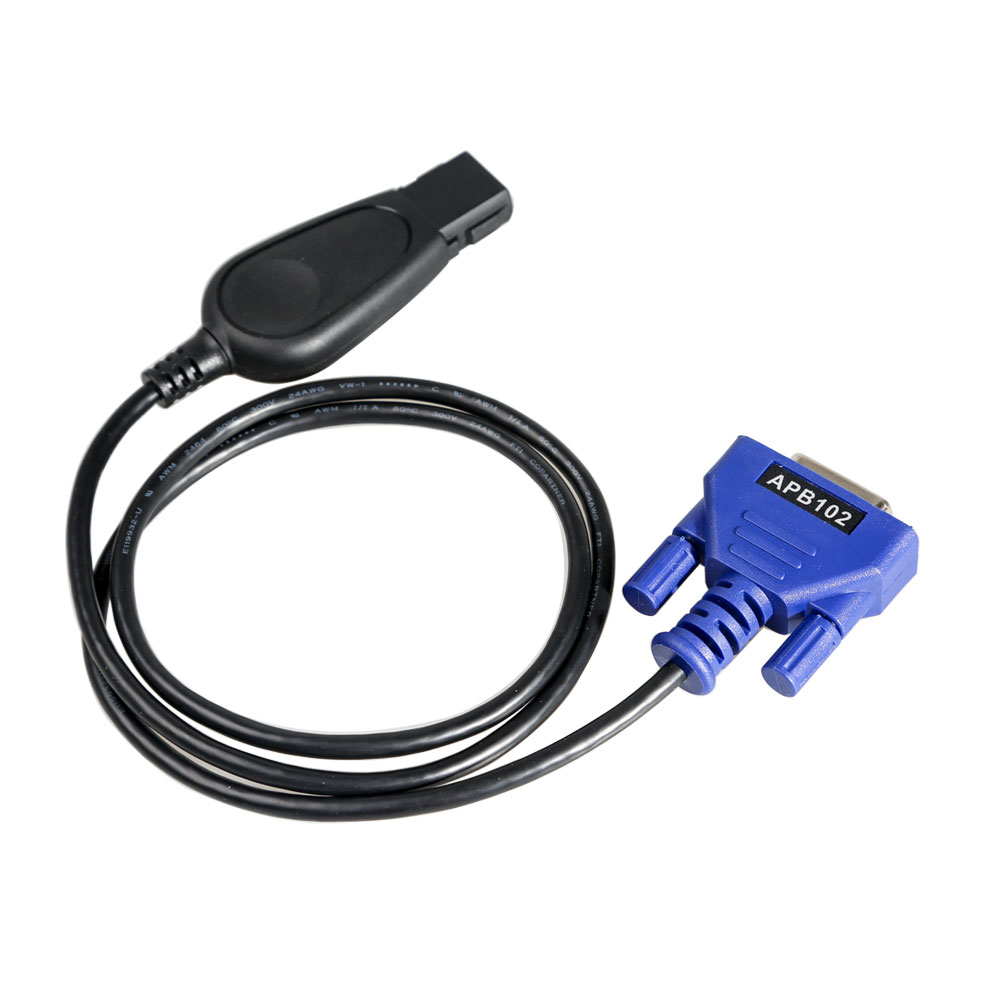

1x APB102 MB IR Cable

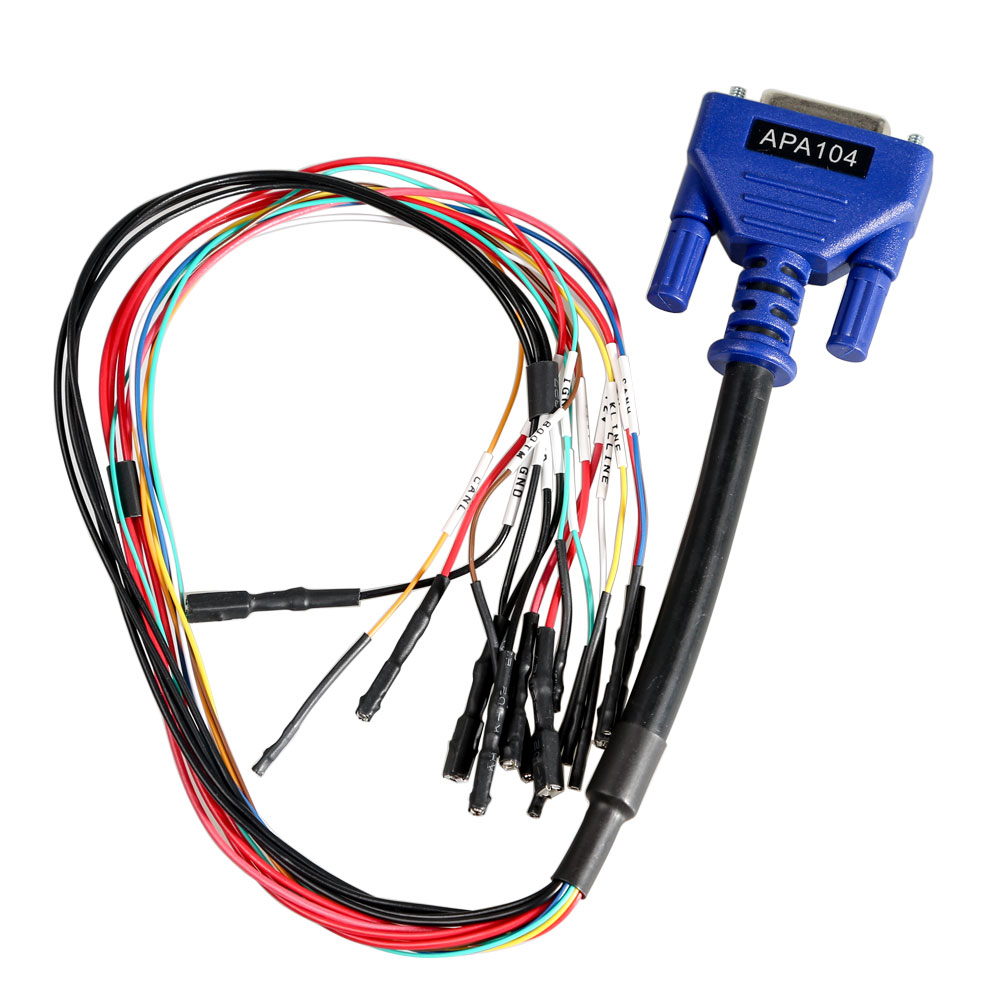

1x APA104 ECU Clamp
1x Main Cable
1x APB104(MCU_FQFP64)
1x APA105(MCU Clamp)
1x USB Cable (2m)
1x APB105 MCU_FQFP80

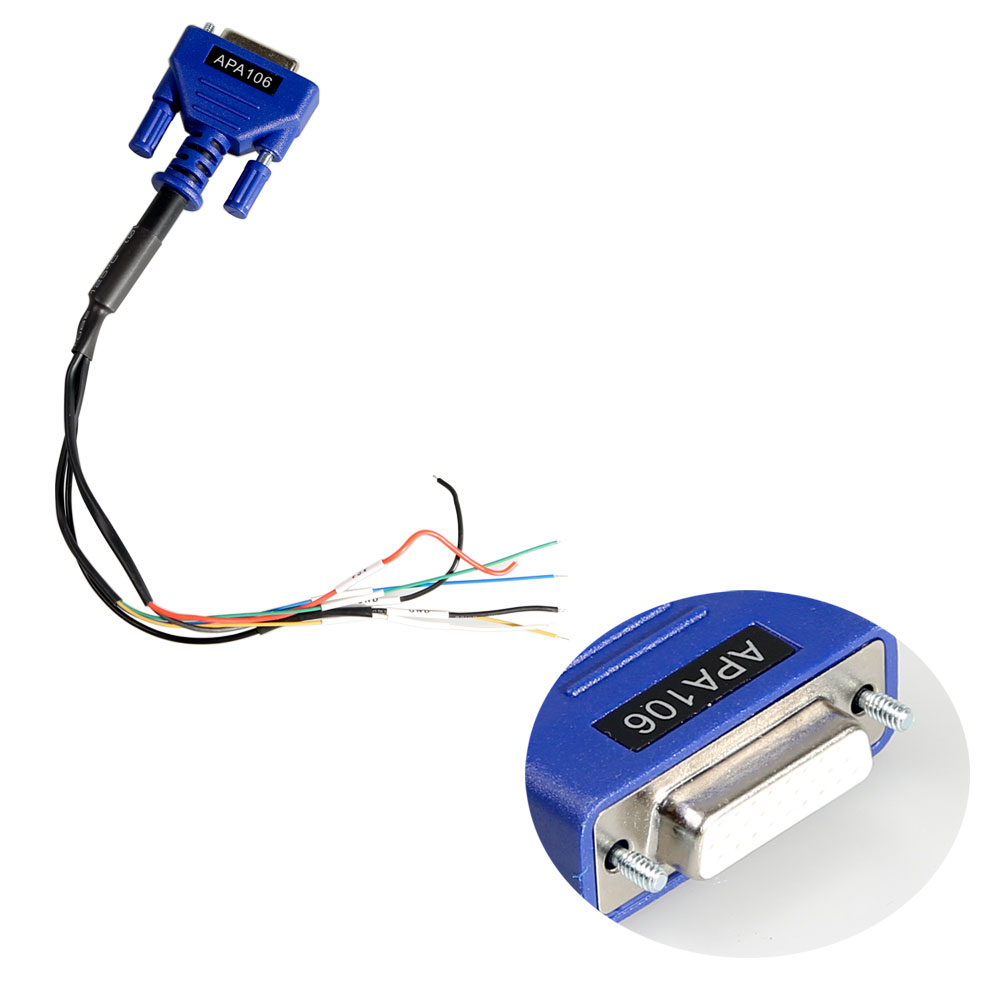

1x APA106(MC9S12 Clamp)
1x Mini USB Cable
1x APB106(MCU_FQFP144)
1x APA107(Connect Cable)
1x AC/DC 12V Adapter
1x APB107(MCU_FQFP144)
1x Quick Reference Guide
2x Light Fuse 6*30mm
1x APB108(MCU_FQFP176)
1x Packing List
1x Cigarette Lighter
1x APA002(EEPROM Socket)
1x Carrying Case 634*170*404mm
1x AAC001

Contact Information:

Whatsapp: +1 937 888 0032

Live Support: Chat with us online

E-mail: sale@obdtools.net

Skype: jansonsh@hotmail.com

If you have any problem, please do not hesitate to contact us.
