> Auto Key Programmer > AURO OtoSys IM100 Automotive Diagnostic and Key Programming Tool
AURO OtoSys IM100 Automotive Diagnostic Tool
If you want AURO OtoSys IM600, please contact our customer service for best offer.
OtoSys IM100 from Auro is the ONE tool you need for modern vehicle key programming!
Based on a 7-inch Android touchscreen tablet, and equipped with the key programmer UP200, the OtoSys IM100 provides unparalleled Immobilizer and Key Programming functions as well as OE-level diagnostic functions and services!
Embedded a 1.6 GHz quad-core processor and a 32-gigabyte solid state drive into a 7-inch touchscreen tablet, the compact IM100 allows you to multitask on the open source Android 4.4 operating system with quick responses. Save a lot repair and maintenance time!
AURO OtoSys IM100 Features:
* Support IMMO functions for different makes and models.
* Equipped with UP200 to support transponder read/write/identification, ECU/EEPROM chip read/write and IMMO password read.
* Display live data is text, graph & analog for easy data review.
* Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
* Support relearn parking brake pad after replacement.
* Support forced regeneration and adjusting injectors.
* Support Steering Angle Sensor (SAS) services.
* Support service mileage and service intervals reset.
* Support TPMS sensor relearn.
* Support battery registration and reset.
* Support online update.
NOTE:This function is supported.
This function is not supported.
Special Declaration:
Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release
OtoSys IM100 OtoSys IM600 IMMO Smart Mode (Guided and Automated Key Learning Function) Auto Detect Make/Model/Year/System Read PIN/CS Read PIN/CS (All Keys Lost) Key Learning IMMO ECU Reset/Adaption IMMO ECU Refresh/Coding Remote Learning AUDI Q5/A4/A5 2015-2017 Read PIN/CS BMW FEM/BDC Key Learning and Adaption Mercedes Key Learning Programming EEPROM Read/Write MCU Read/Write Basic Advanced Key Programming IC Card Read/Write Mercedes Infrared Key Read/Write Remote Frequency Detect OE-Level Diagnostics All Systems for Over 80 Makes and Models OtoFlash (J2534 ECU Reprogrammer) Advanced Service Functions Oil Serive Reset Parking Brake Pad Relearn After Replacement Steering Angle Sensor Relearn Battery Registration and Reset Diesel Particulate Filter Regeneration Tire Pressure Monitoring System ECU Coding VW/Audi Component Protection Complete Service Functions Tool Features Built-in Rechargeable Li-ion Battery 5000 mAh 15000 mAh Internet Updatable Wi-Fi Wi-Fi Multilingual Support Limited One Year Warranty Touchscreen 7-inch 10.1-inch Memory 32 GB 64 GB Processor Quad-core processor Hexa-core processor Camera 8.0 Megapixel Resolution 1024x600 1920x1200
For detailed support vehile list, please refer to this link to check: http://pro.aurodiag.com/measurecarAPP-1-1.html?m=94&operatorType=5&pageNo=0
AURO OtoSys IM100 Specifications:
Recommended Use Indoor Operating System Android™ 4.4.4, KitKat Processor Cortex-A9 processor (1.6 GHz) Memory 1GB RAM DDR3 & 32GB ROM Display 7-inch LCD capacitive touchscreen with 1024x600 resolution Connectivity Mini USB 2.0; USB 2.0; Wi-Fi; HDMI Type A; Micro SD card slot (supports up to 32GB); Sensors Ambient light sensor for brightness auto changing Audio Input/Output Input: N/A; Output: buzzer; Power and Battery 3.7 V/5000 mAh lithium-polymer battery; Charges via 5 VDC power supply; Tested Battery Life Around 4.5 hours of continuous use Battery Charging Input 5 V/1.5 A Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V Operating Temp. 0 to 55°C(32 to 131°F) Storage Temp. -20 to 60°C (-4 to 140°F) Operating Humidity 5% - 95% non-condensing Dimensions (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) Net Weight 788 g (2.42 lb.) Supported Automotive
ProtocolsISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Package includes:
1pc x OBD II Cable
1pc x Mini USB Cable
1pc x USB External Power Adaptor
1pc x Quick Guide

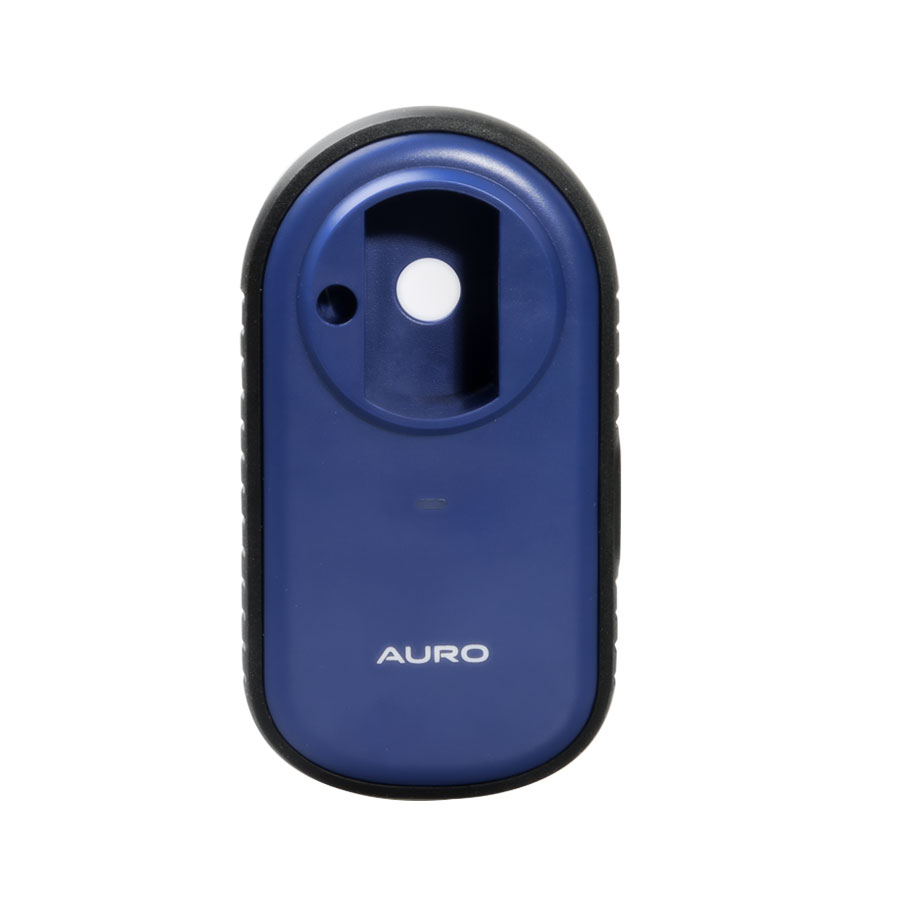

1pc x UP200
1pc x APB001 – EEPROM Adaptor
1pc x APB002 – 68HC908 Adaptor
1pc x APA002 – EEPROM Socket
1pc x APA001 – EEPROM Clamp Integrated MC9S12 Cable
